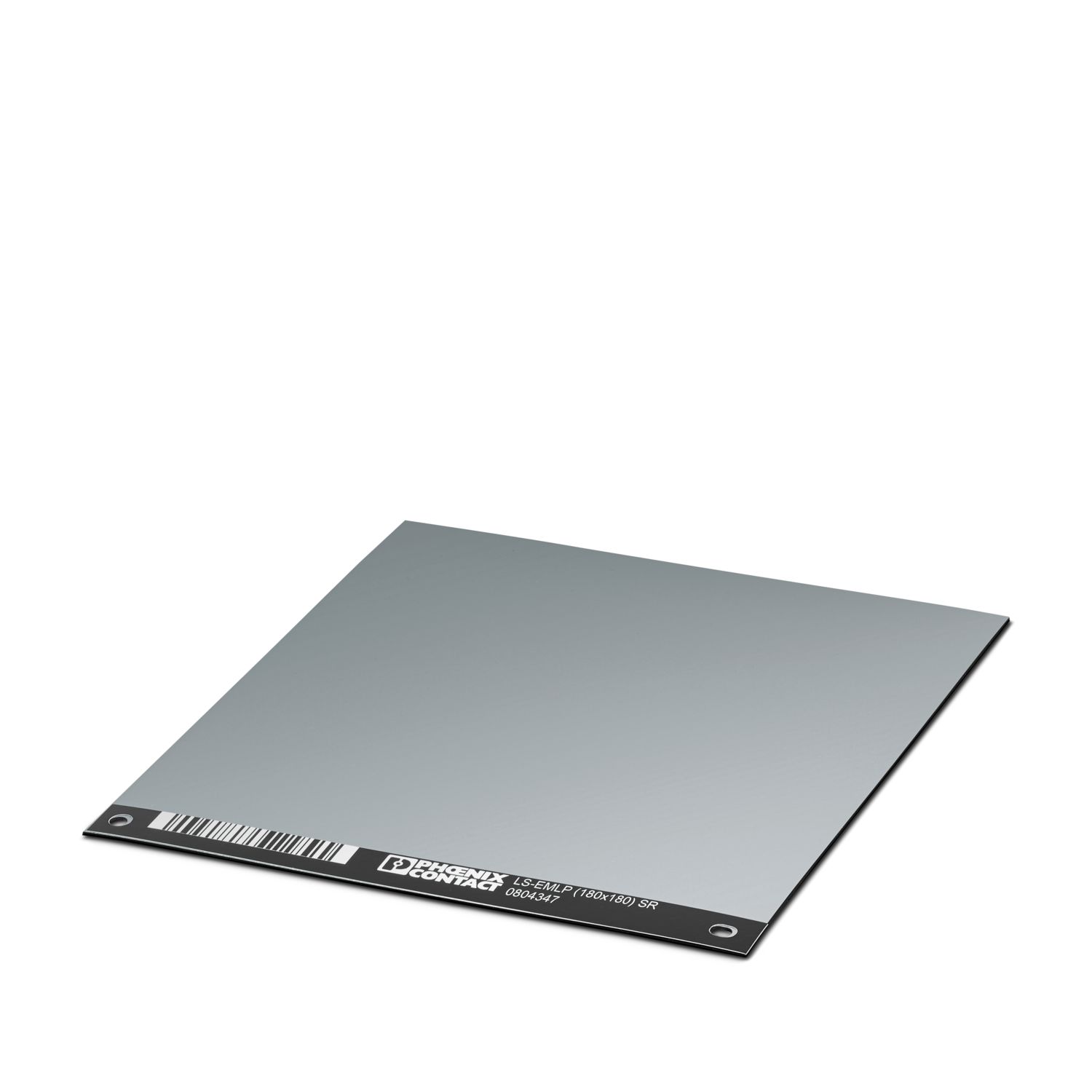

LS-EMLP (180X180) SR - Device marker - 0804347

Product properties

Product type	Device marking
Type	Laser sheet
Marking
Number of individual labels	1
Identification technology	Direct laser marking

Mounting

Mounting type	adhesive

Material specifications

Foil strength	800 µm
Adhesive strength	50 µm
Adhesive	Acrylic
Color	silver
Material	ABS
Components	free from silicone and halogen

Environmental and real-life conditions

Test for substances that would hinder coating with paint or varnish
Result	Test passed
Test for substances that would hinder coating with paint or varnish
Result	Test passed
Scratch test for the determining scratch resistance
Specification	DIN EN ISO 1518-1:2019-10 (following)
Requirements	≥ 5 N
Result	Test passed
Tesafilm test
Specification	DIN EN ISO 2409:2013 (following)
Result	Test passed
UV resistance
Specification	DIN EN ISO 4892-2:2021-11 (following)
Result	Test passed
Test duration	96 h
Temperature resistance
Specification	ANSI/UL 969-2018:03 (following)
Test duration	240 h
Wipe resistance of inscriptions
Specification	DIN EN 61010-1 (VDE 0411-1):2011-07
Specification		DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]	Test passed
n-Hexane [CAS No. 110-54-3]	Test passed
Water + Petroleum ether [CAS No. 64742-82-1]	Test passed
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]	Test passed
Ethanol (99 %) [CAS No. 64-17-5]	Test passed
Specification	ISO 175:2010 (following)
Test duration	168 h
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]	Test passed
Diesel [CAS No. 68476-34-6]	Test passed
IRM 901	Test passed
IRM 902	Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	EN ISO 22479:2022-06
Result	Test passed
Procedure	Method B
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Test duration	96 h
Ambient conditions
Ambient temperature (operation)	-20 °C ... 60 °C
Recommended ambient temperature (storage/transport)	23 °C
Recommended humidity (storage/transport)	50 % (Storage in a dry and dark place in the original packaging is recommended)
Shelf life	1 Year

Dimensions

Width	180 mm
Length	180 mm
Material strength	0.80 mm
Text field
Text field width	180 mm
Text field height	180 mm

Standards and regulations

Wipe resistance	DIN EN 61010-1 (VDE 0411-1)

Notes

Item number	0804347
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	BG19
Product key	BG241D
Catalog page	Page 291 (C-3-2019)
GTIN	4055626306063
Weight per piece (including packing)	39.33 g
Weight per piece (excluding packing)	39.33 g
Customs tariff number	39203000
Country of origin	DE

ECLASS-11.0	27281103
ECLASS-12.0	27281103
ECLASS-13.0	27281103

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
