HMC 11 120AC 1A C1D2
-
Hydraulic-magnetic circuit breaker
2907191
HMC series of supplemental circuit protector modules, 1 A rating
Product details

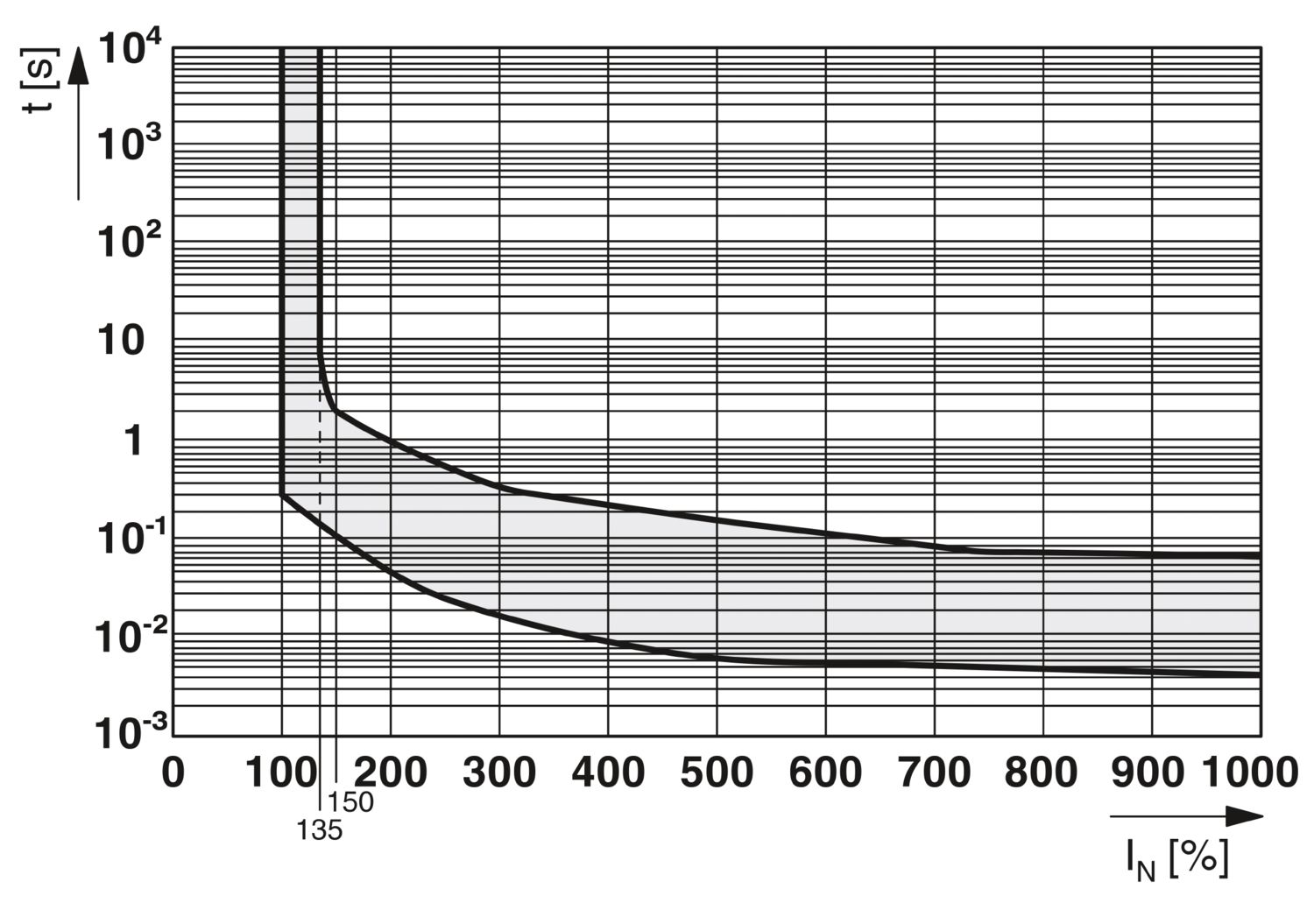

| Trade restriction | |
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
| Product type | Device circuit breakers |
| Product family | HMC |
| Number of positions | 4 |
| Number of rows | 1 |
| General | |
| Nominal current IN | 1 A |
| Rated voltage | 120 V AC (50/60 Hz) |
| 50 V DC | |
| Rated short-circuit switching capacity Icn | 1 kA () |
| Fuse | Hydraulic magnetic circuit breaker |
| Screw thread | M3 |
| Tightening torque | 0.5 ... 0.6 Nm |
| Stripping length | 7 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |

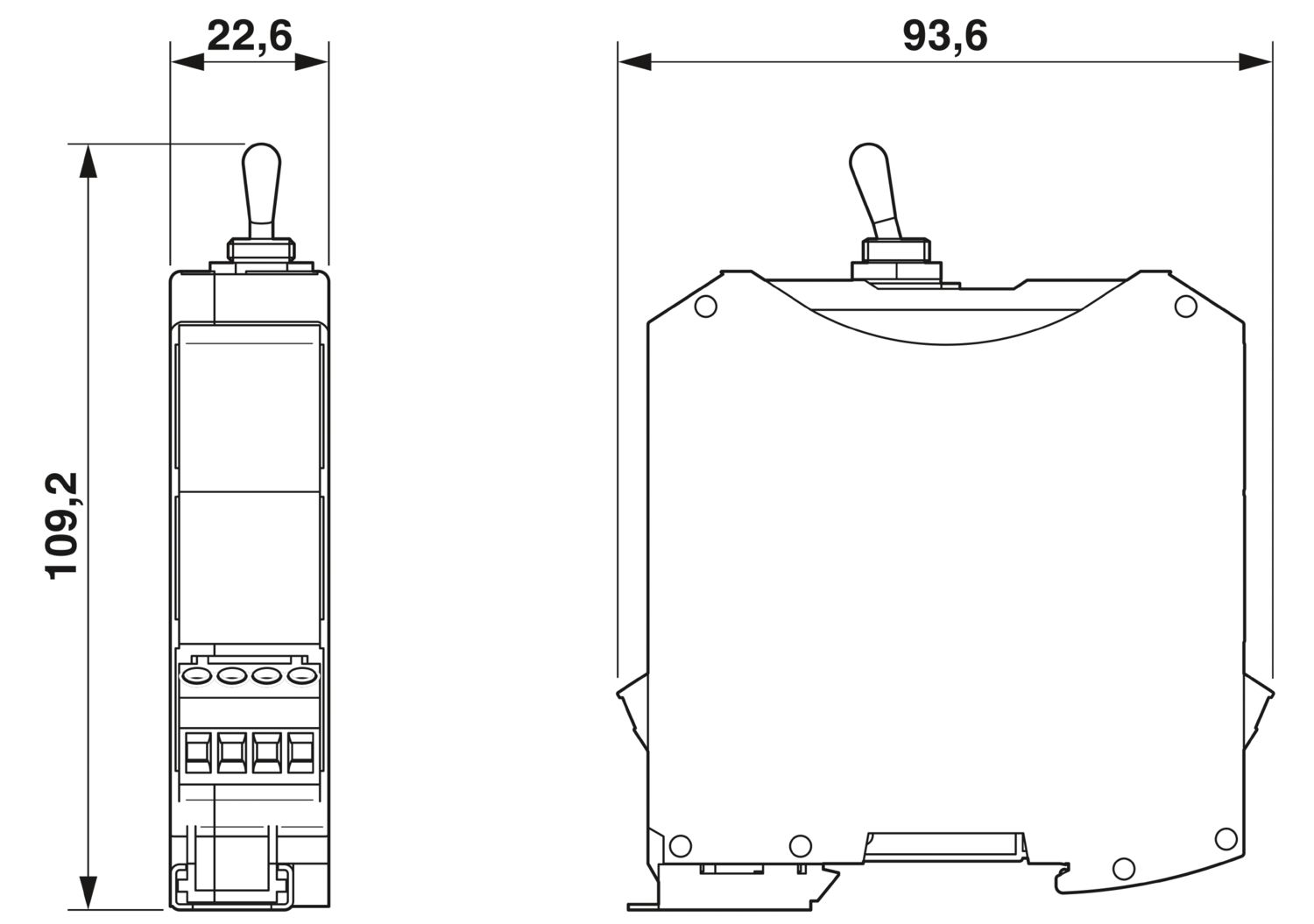

| Dimensional drawing |
|
| Width | 22.6 mm |
| Height | 93.6 mm |
| Depth | 109.2 mm |
| Color | light gray (RAL 7035) |
| Material | Polyamide |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 65 °C |
| Standards/specifications | UL 1077 |
| Mounting type | DIN rail: 35 mm |
| Mounting position | As desired on 35 mm DIN rail in acc. with EN 60715 |
Your advantages
Optional T-bus for reduced wiring
UL recognized for hazardous locations Class I, Division 2, Groups A, B, C, and D
Dual-rated for 50 V DC and 120 V AC
Hydraulic-magnetic technology provides extended temperature stability
