SI-RND-R1A
-
Data interface
1425186
Service socket with RJ45 (socket/socket), 8-pos. metal, CAT6A connection, with protective cover
Product details
| Product type | Data front plate |
| Number of positions | 8 |
| Connection profile | RJ45 |

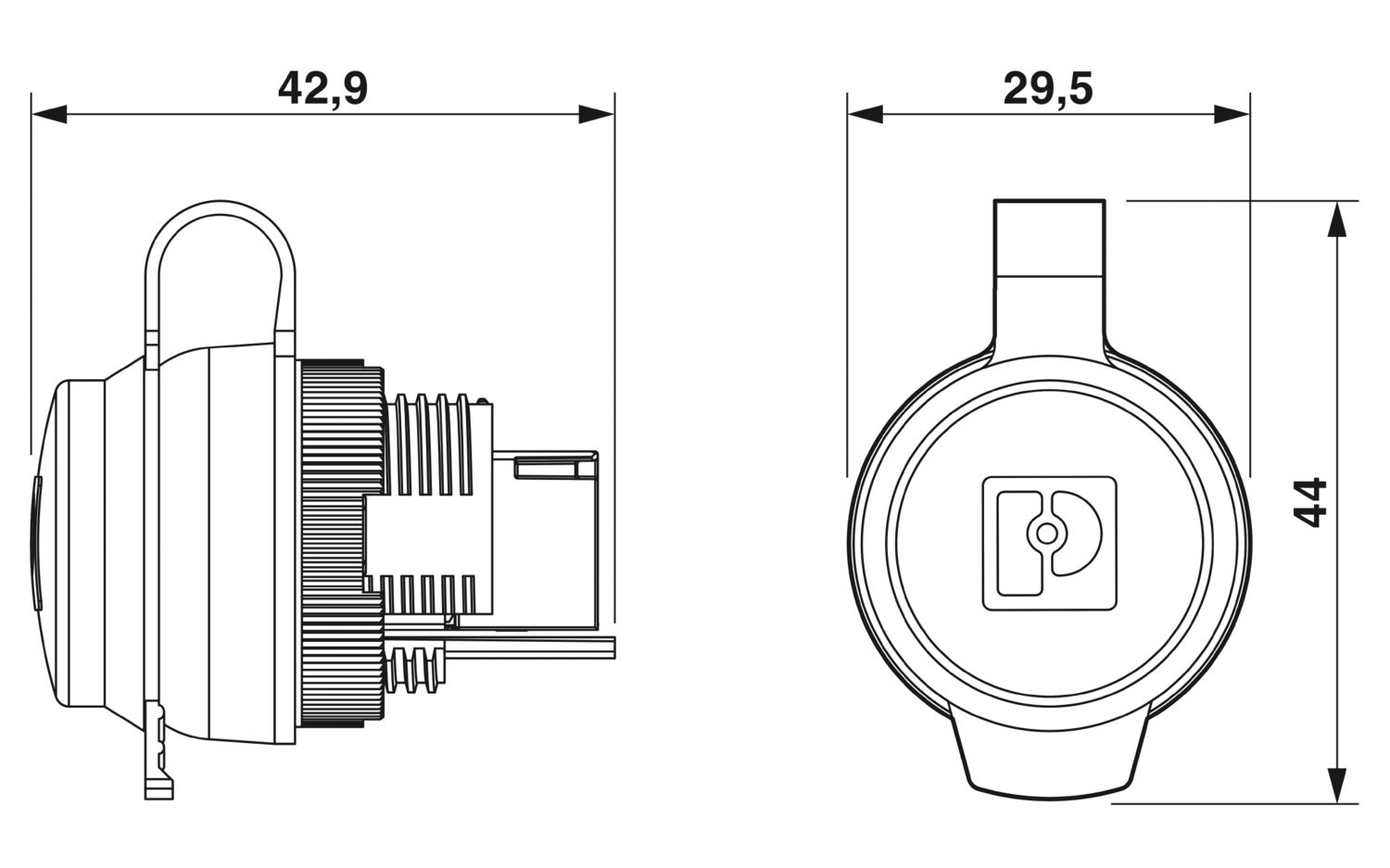

| Dimensional drawing |
|
| Width | 29.5 mm |
| Height | 42.7 mm |
| Panel thickness | 1 mm ... 3 mm |
| Material Housing | PA |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | gold-plated |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 750 |
| Ambient conditions | |
| Degree of protection | IP65 (with closed protective cover) |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Assembly note | Panel thickness: 1 mm ... 3 mm |
