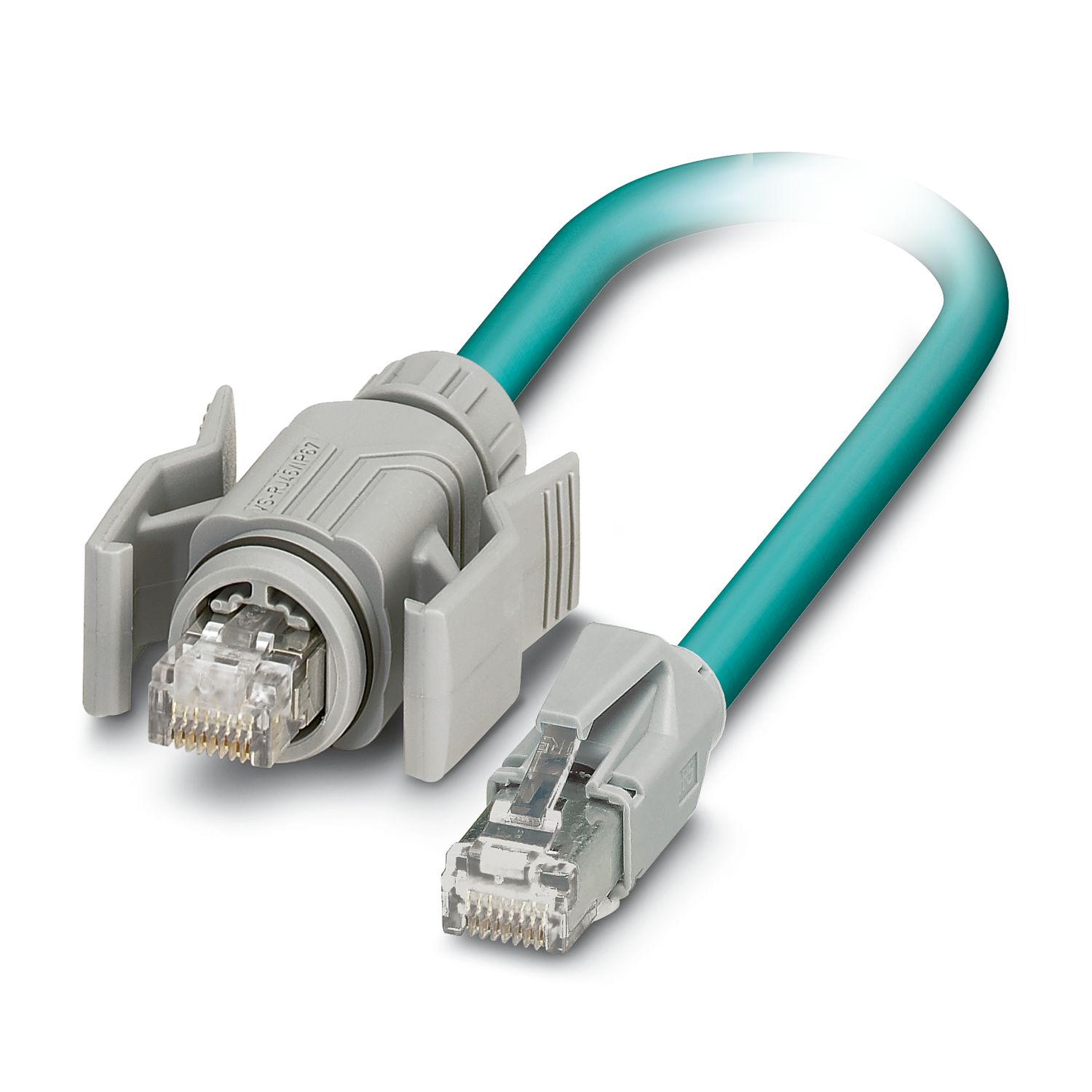

VS-8-VS67-RJ45/4P-AWG26-CF/1,0 - Network cable - 1652046

Product properties

Product type	Data cable preassembled
Product family	RJ45 INDUSTRIAL IE8 CAT5
Sensor type	Ethernet
Number of positions	8
Shielded	yes
Insulation characteristics
Degree of pollution	2

Electrical properties

Rated voltage (III/3)	125 V
Transmission characteristics (category)	CAT5 (IEC 11801:2002)
Wave impedance	100 Ω

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	≥ 200

Material specifications

Connector

Cable/line

Cable length	1.00 m
Ethernet [94B]
Number of positions	8
Shielded	yes
Cable type	Ethernet [94B]
Conductor structure	4x2xAWG26/7; S-UTP
Conductor structure signal line	7x 0.16 mm
AWG signal line	26
Conductor cross section	0.14 mm²
Wire diameter incl. insulation	1 mm
External cable diameter	6.1 mm
Outer sheath, material	PUR
External sheath, color	water blue RAL 5021
Conductor material	Bare Cu litz wires
Single wire, color	white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs	2 cores to the pair
Overall twist	4 pairs for core
Optical shield covering	85 %
Max. conductor resistance	≤ 284 Ω/km
Insulation resistance	≥ 5 GΩ*km
Wave impedance	100 Ω ±15 % (at 1 ... 100 MHz)
Working capacitance	48 nF (At 800 Hz)
Nominal voltage, cable	125 V
Test voltage Core/Core	1000 V
Test voltage Core/Shield	500.00 V
Smallest bending radius, fixed installation	50 mm (cable, fixed installation)
Smallest bending radius, movable installation	95 mm (Cable, flexible installation)
Ambient temperature (operation)	-20 °C ... 70 °C (cable, fixed installation)
Ambient temperature (operation)		-5 °C ... 60 °C (Cable, flexible installation)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
		IP67
		IP67/IP20
Ambient temperature (operation) (Cable, fixed installation)	-30 °C ... 80 °C (cable, fixed installation)
Ambient temperature (operation) (Cable, flexible installation)	-5 °C ... 60 °C (Cable, flexible installation)
Ambient temperature (operation)	Plug / socket

Item number	1652046
Packing unit	1 pc
Note	Made to order (non-returnable)
Sales key	NULL
Product key	ABNABE
GTIN	4017918914141
Weight per piece (including packing)	76.8 g
Weight per piece (excluding packing)	71.6 g
Customs tariff number	85444210
Country of origin	DE

VS-8-VS67-RJ45/4P-AWG26-CF/1,0 - Network cable

1652046

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
