VS-ST-CD-1,0/14,8/0,5
-
D-SUB crimp contact
1688968

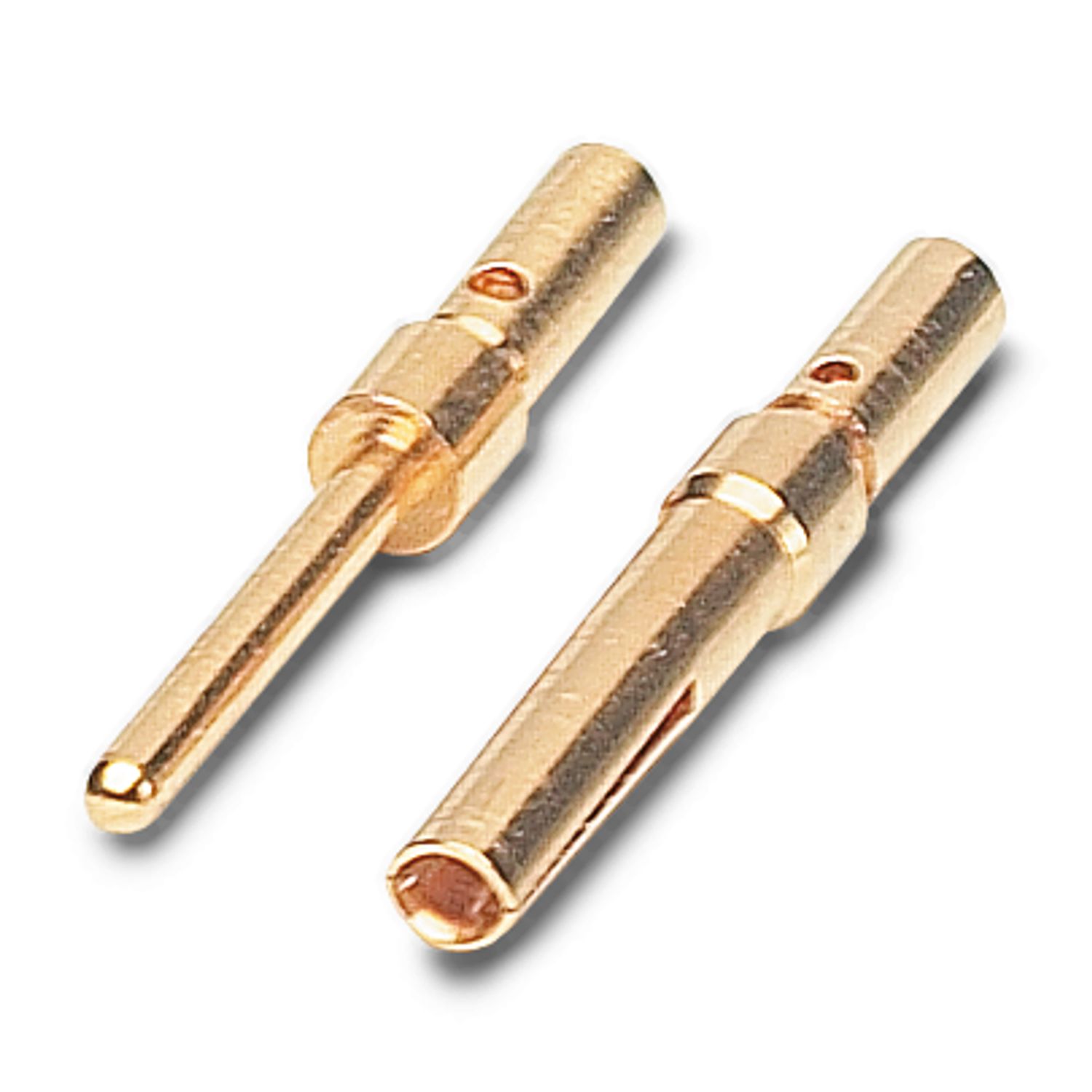

Crimp contact, for D-SUB contact inserts with standard contact density, pin, connection cross section AWG 24 ... 20, turned, gold-plated
Product details
| Product type | Crimp contact |
| Series | HC-M-DSUB |
| HC-M-25 | |
| HC-M-08-GBIT | |
| Type | Individual male contact |
| Contact material type | turned |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Connection technology | Crimp connection |
| Conductor cross section | 0.2 mm² ... 0.5 mm² |
| Connection cross section AWG | 24 ... 20 |
| Contact material | Copper alloy |
| Contact surface material | Hard gold-plated over nickel |

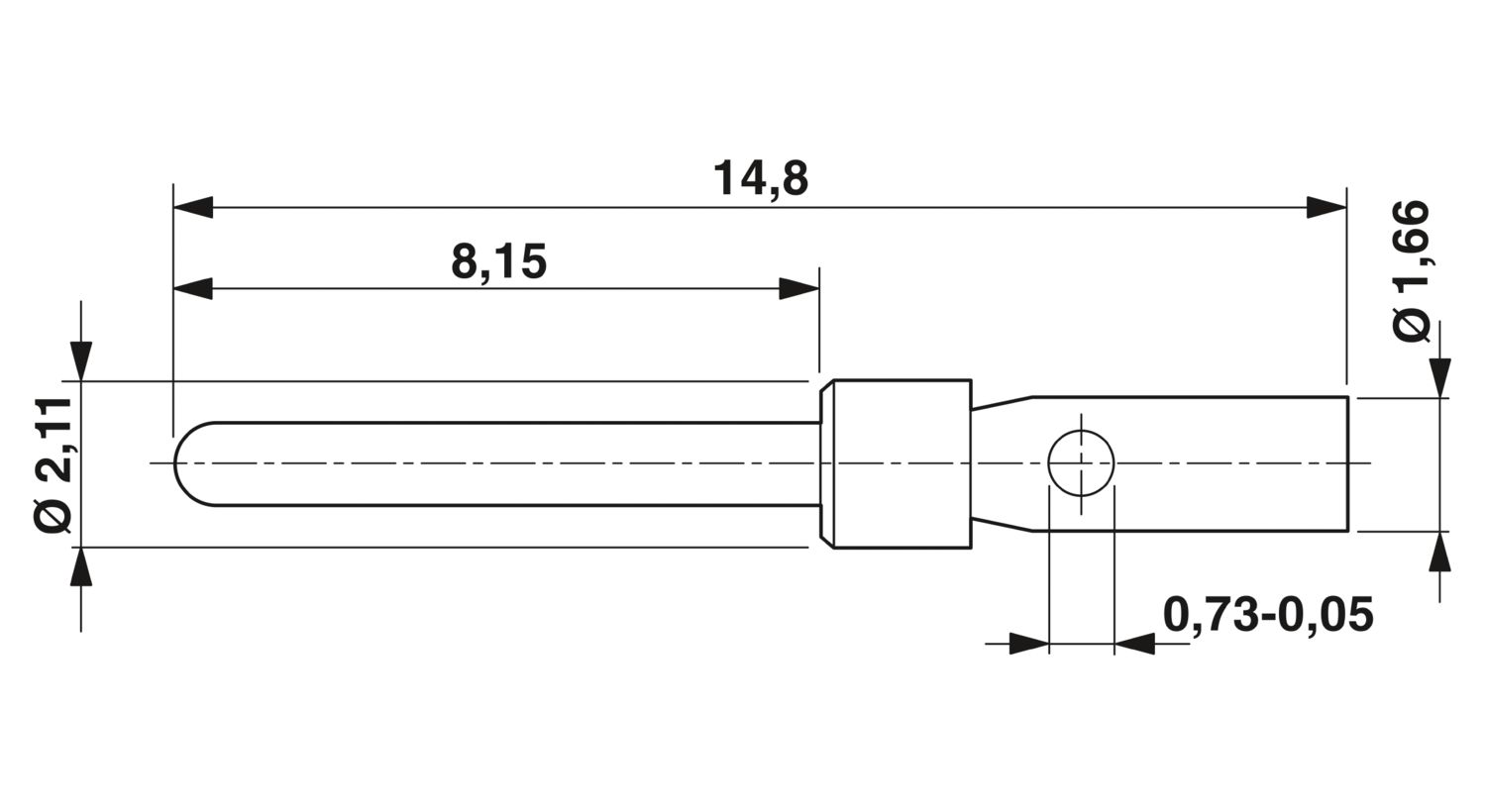

| Dimensional drawing |
|
| Length | 14.8 mm |
| Mechanical characteristics | |
| Contact diameter | 1 mm |
| Rated voltage (III/3) | 125 V |
| Rated surge voltage | 1 kV |
| Rated current | 5 A |
| Insulation resistance | ≥ 5 GΩ |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 50 |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 125 °C |
