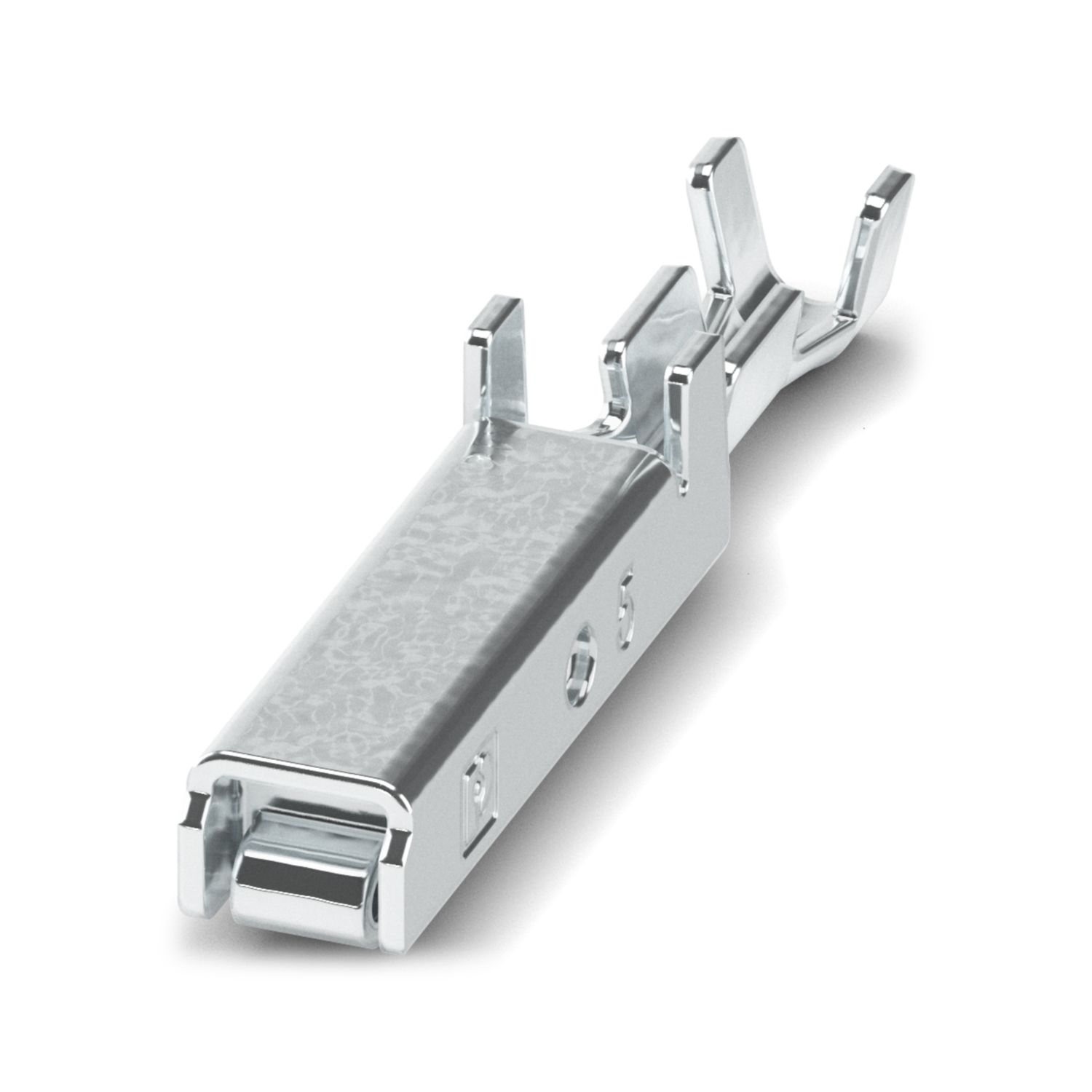

D3PC-MP 1.25-2.2-F-SN-L - Crimp contact
D3PC-MP 1.25-2.2-F-SN-L
-
Crimp contact
1340365
Crimp contact, nominal current: 8 A, contact surface: Tin
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Crimp contact
Product family
D3PC-MP-F
Connection data
Stripping length
4.5 mm
Conductor cross section AWG
16 ... 14
Material specifications
Contact surface
Tin Sn
Contact surface material
Tin
Metal surface terminal point (top layer)
Tin (1 - 3 µm Sn)
Metal surface contact area (top layer)
Tin (1 - 3 µm Sn)
Surface characteristics
hot-dip tin-plated
Contact material
Cu alloy
Electrical properties
Nominal current I
N
8 A
Commercial data
Item number
1340365
Packing unit
200 pc
Minimum order quantity
200 pc
Sales key
AA02
Product key
AABCUB
GTIN
4063151646479
Weight per piece (including packing)
0.494 g
Weight per piece (excluding packing)
0.494 g
Customs tariff number
85366990
Country of origin
CN
Classifications
ECLASS
ECLASS-11.0
27460291
ECLASS-13.0
27460291
ECLASS-12.0
27460291
ETIM
ETIM 9.0
EC002943
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
D3-MP RELEASE TOOL
-
Removal tool
1441450
D32PC 2,2/ 2-5,08-X
-
PCB connector
1376522
D32PC 2,2/ 2-5,08-Y
-
PCB connector
1376499
D32PC 2,2/ 3-5,08-Z
-
PCB connector
1378299
DD32PC 2,2/ 4-5,08-XX
-
PCB connector
1376625
DD32PC 2,2/ 6-5,08-YY
-
PCB connector
1378302
DD32PC 2,2/ 6-5,08-XY
-
PCB connector
1378263
D31PC 2,2/ 2-3,81-X
-
PCB connector
1337548
D31PC 2,2/ 3-3,81-Y
-
PCB connector
1340903
DD31PC 2,2/ 4-3,81-X
-
PCB connector
1340465
DD31PC 2,2/ 4-3,81-Y
-
PCB connector
1341274
