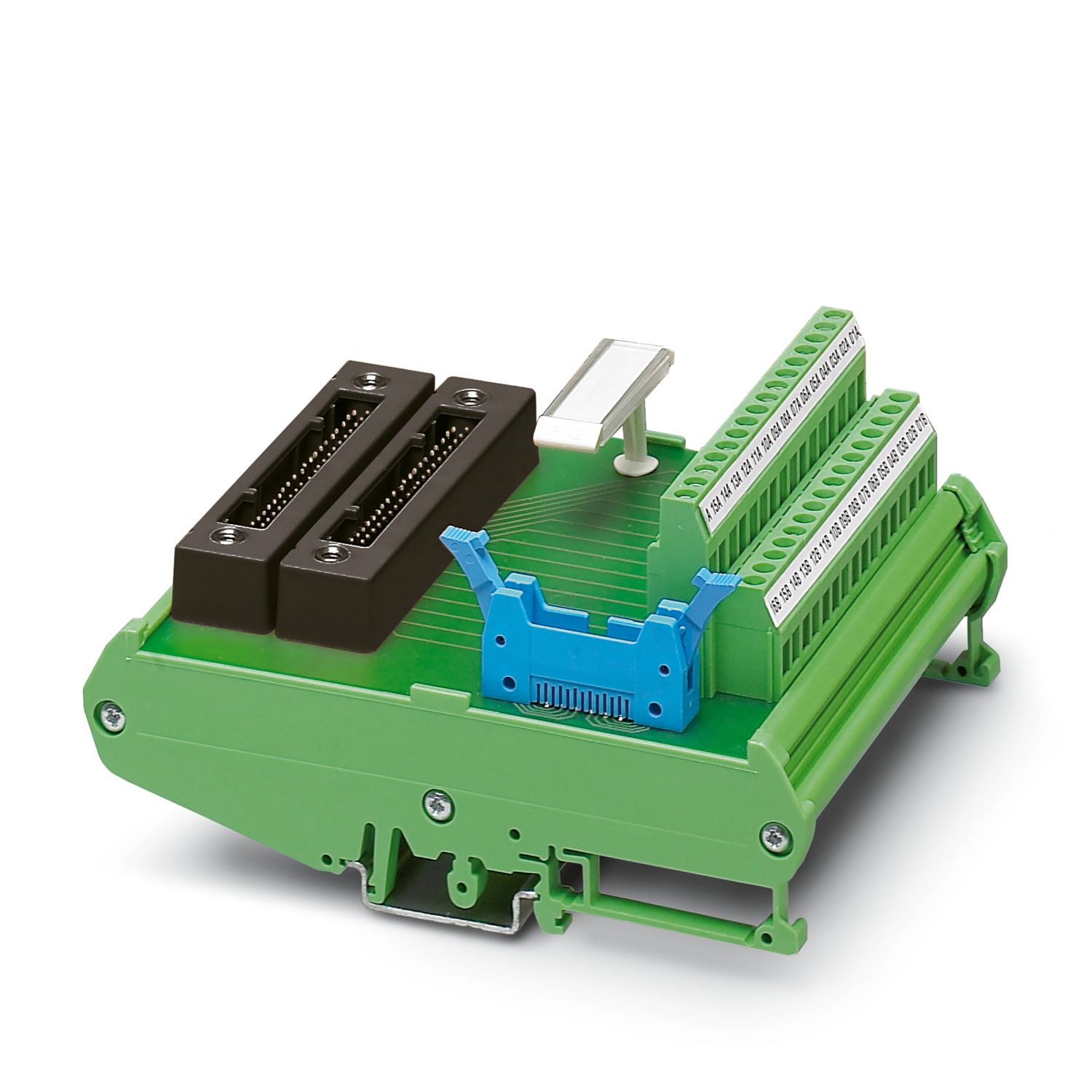

16-channel analog module with a screw connection and two 40-pos. system connections. Suitable for the Yokogawa AA1543 card.
Product details
Product type
Interface module
No. of channels
16
Insulation characteristics: Air clearances and creepage distances
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Operating voltage (DC)
≤ 30 V DC
Current (per branch)
≤ 0.1 A
Air clearances and creepage distances
Rated insulation voltage
50 V
Rated surge voltage
0.5 kV (1.2/50 μs)
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O card
AAI543
Supported controller YOKOGAWA STARDOM
Suitable I/O card
NFAI543
Connection 1 (control level)
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
40
Note
Usable system cables: Phoenix Contact YUC40, Yokogawa KS1
Tightening torque
0.5 Nm
Pitch
2.54 mm
Connection 2 (field level)
Connection method
Screw connection
Stripping length
7 mm
Screw thread
M3
Number of positions
48
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)
0.2 mm² ... 1.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)
0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG
24 ... 12
Tightening torque
0.5 Nm ... 0.6 Nm
Pitch
5.08 mm
Connection 3 (HART connector)
Connection method
HART connector
Number of connections
1
Number of positions
26
Pitch
1.27 mm
Status display present
no

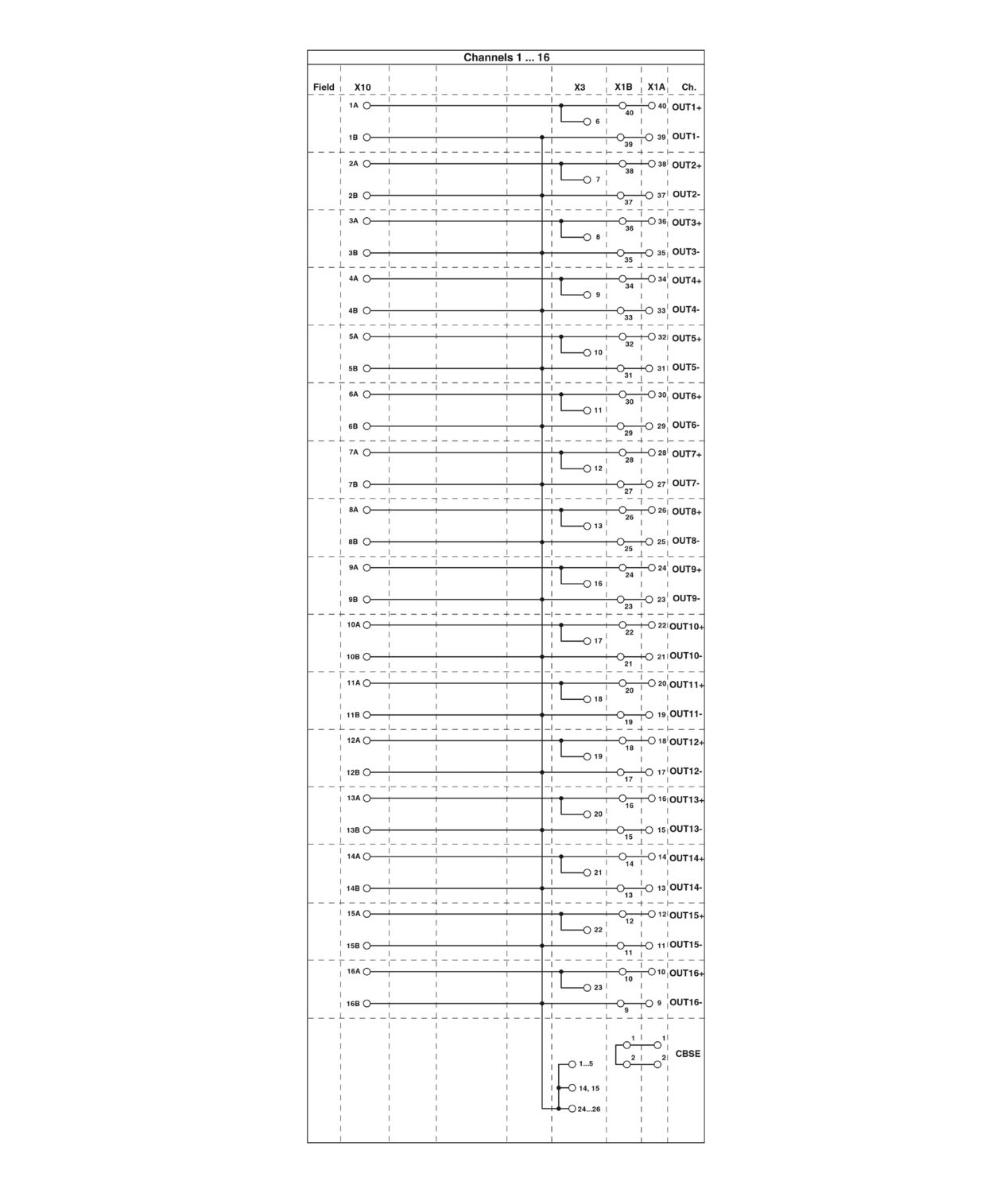

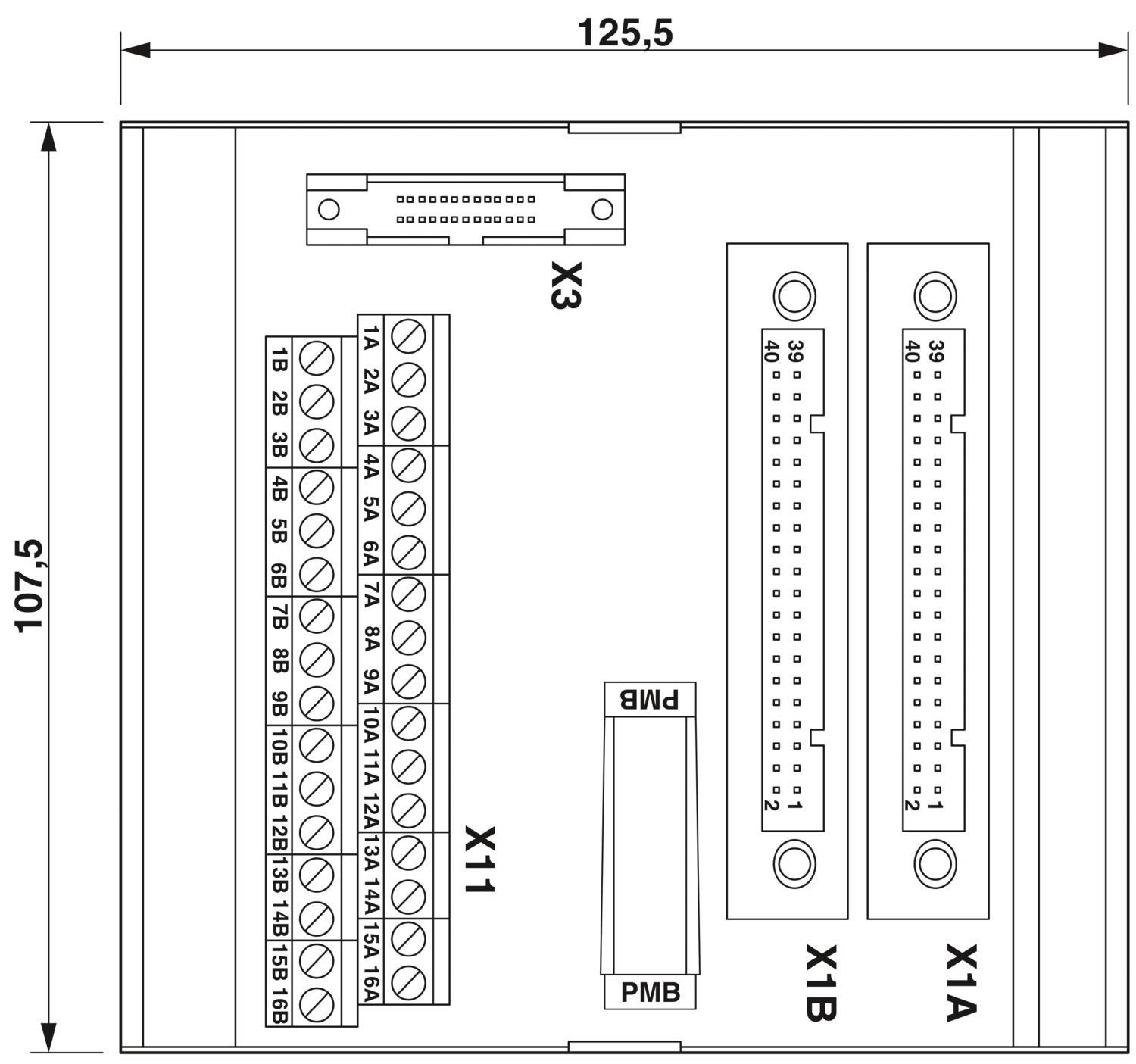

Item dimensions
Width
107.5 mm
Height
125.4 mm
Depth
65.9 mm
Ambient conditions
Degree of protection (Module)
IP00
Degree of protection (Installation location)
≤ IP54
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Altitude
≤ 2000 m
UKCA
Certificate
UKCA-compliant
Air clearances and creepage distances
Standards/regulations
EN IEC 60664-1
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
2314260
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
C421
Product key
DK218N
Catalog page
Page 521 (C-5-2017)
GTIN
4046356143776
Weight per piece (including packing)
273.9 g
Weight per piece (excluding packing)
206.92 g
Customs tariff number
85369010
Country of origin
DE
ECLASS
ECLASS-13.0
27141152
ETIM
ETIM 9.0
EC002780
UNSPSC
UNSPSC 21.0
39121400
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
