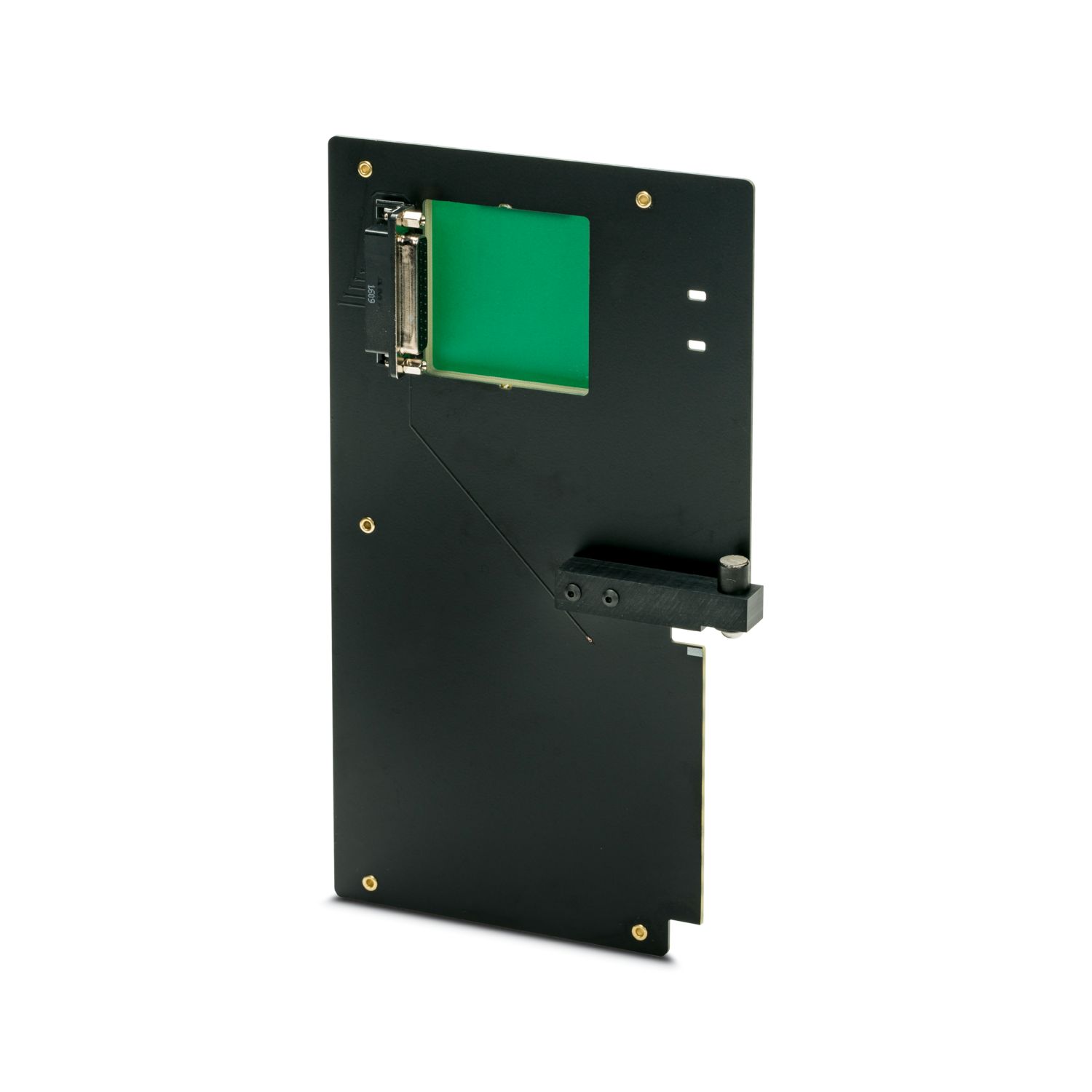

1771-CARDEDGE10/D25F - Interface card - 2908756

Product type	Interface module
Number of positions	10

Nominal voltage U_N	max. 125 V AC/DC
Max. current carrying capacity per branch	2 A
Supported controller ALLEN-BRADLEY PLC 5
Suitable I/O card	1771-AF
	1771-DW
	1771-IA/C
	1771-IA2
	1771-IB
	1771-IC
	1771-IG
	1771-IH
	1771-IN
	1771-IQ
	1771-IT
	1771-IV
	1771-OA
	1771-OB
	1771-OC
	1771-OFE
	1771-OFE1
	1771-OFE2
	1771-OFE3
	1771-OG
	1771-ON
	1771-OP
	1771-OX

Status display	no
Status display present	no

Ambient conditions
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 70 °C

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Item number	2908756
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	C421
Product key	DK2BZZ
GTIN	4055626365725
Weight per piece (including packing)	22.22 g
Weight per piece (excluding packing)	22.22 g
Customs tariff number	85366990
Country of origin	US

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	31cc8dda-7b0a-4495-b0ea-32bebec6e02c

1771-CARDEDGE10/D25F - Interface card

2908756
