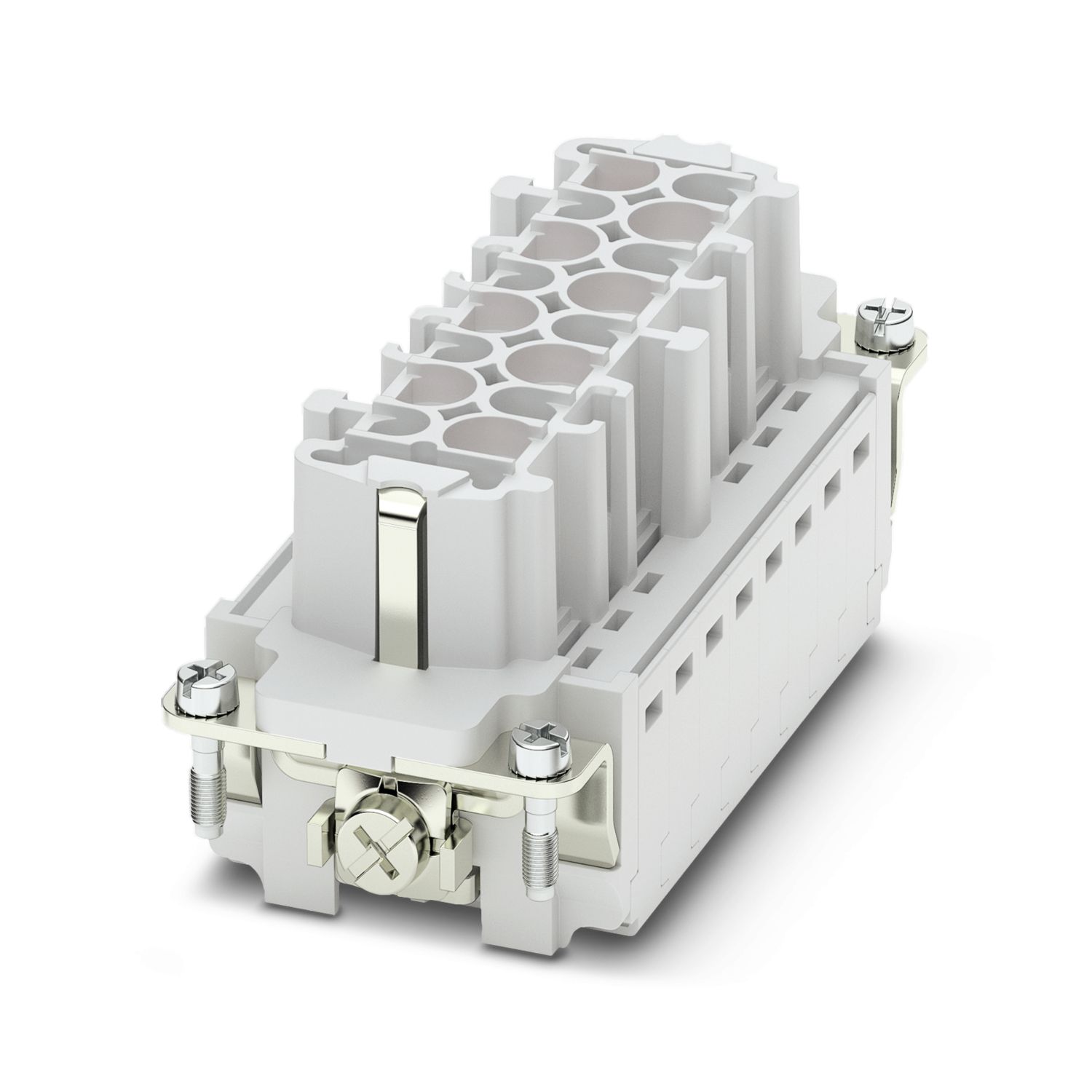

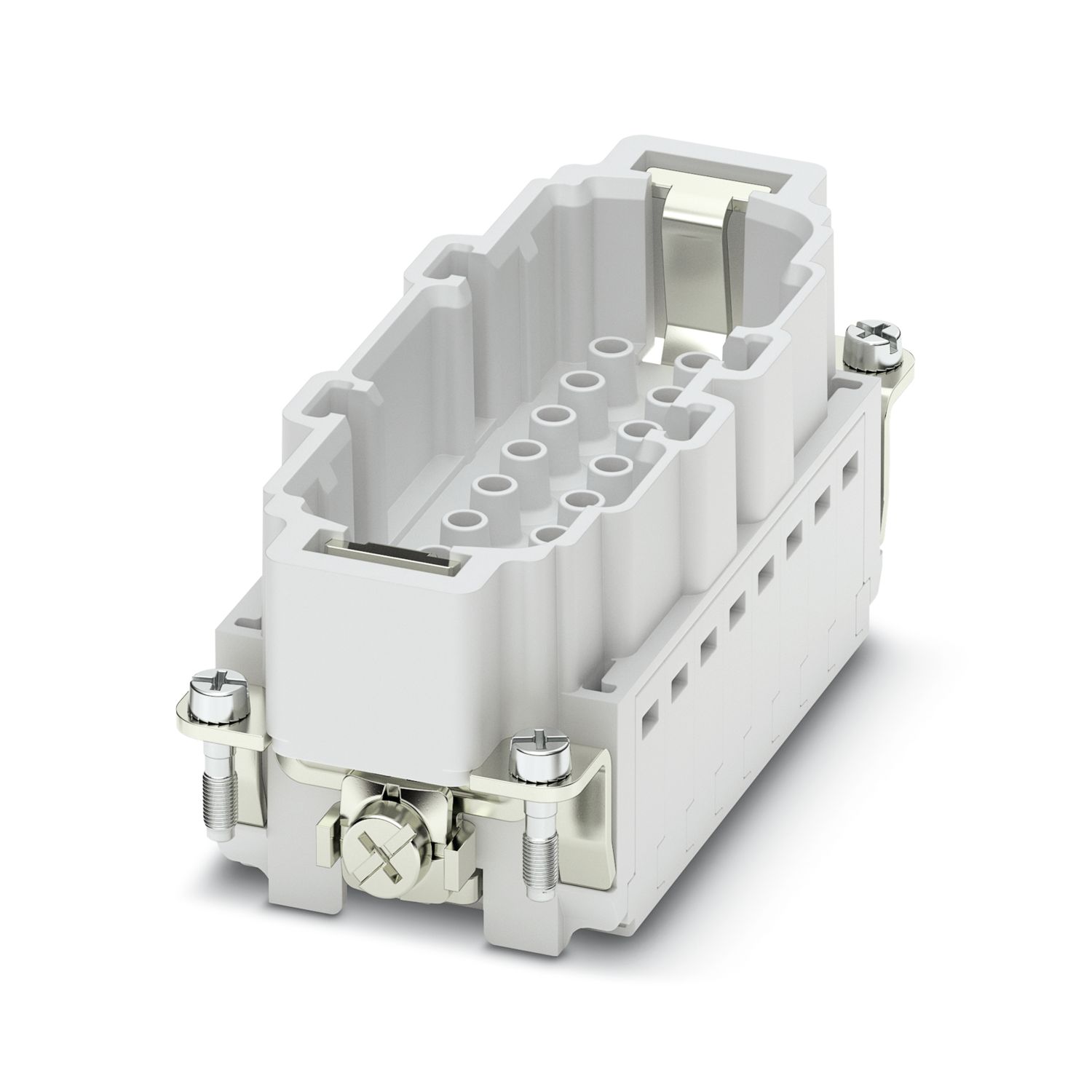

Contact insert - HC-HV06-I-CT-M
1405262

HEAVYCON pin insert, for 830 V (III/3), with 6 N/O contacts and 2 switch contacts, crimp connection


Product Details




General For HC ADVANCE-B16, HC-HV 6 housings, crimp contacts CK 2,5-ED (crimp contacts not included in scope of supply)
General Connectors may be operated only when there is no load/voltage.

Type B16
B32
Product type Contact insert with a fixed no. of positions
Number of positions 8

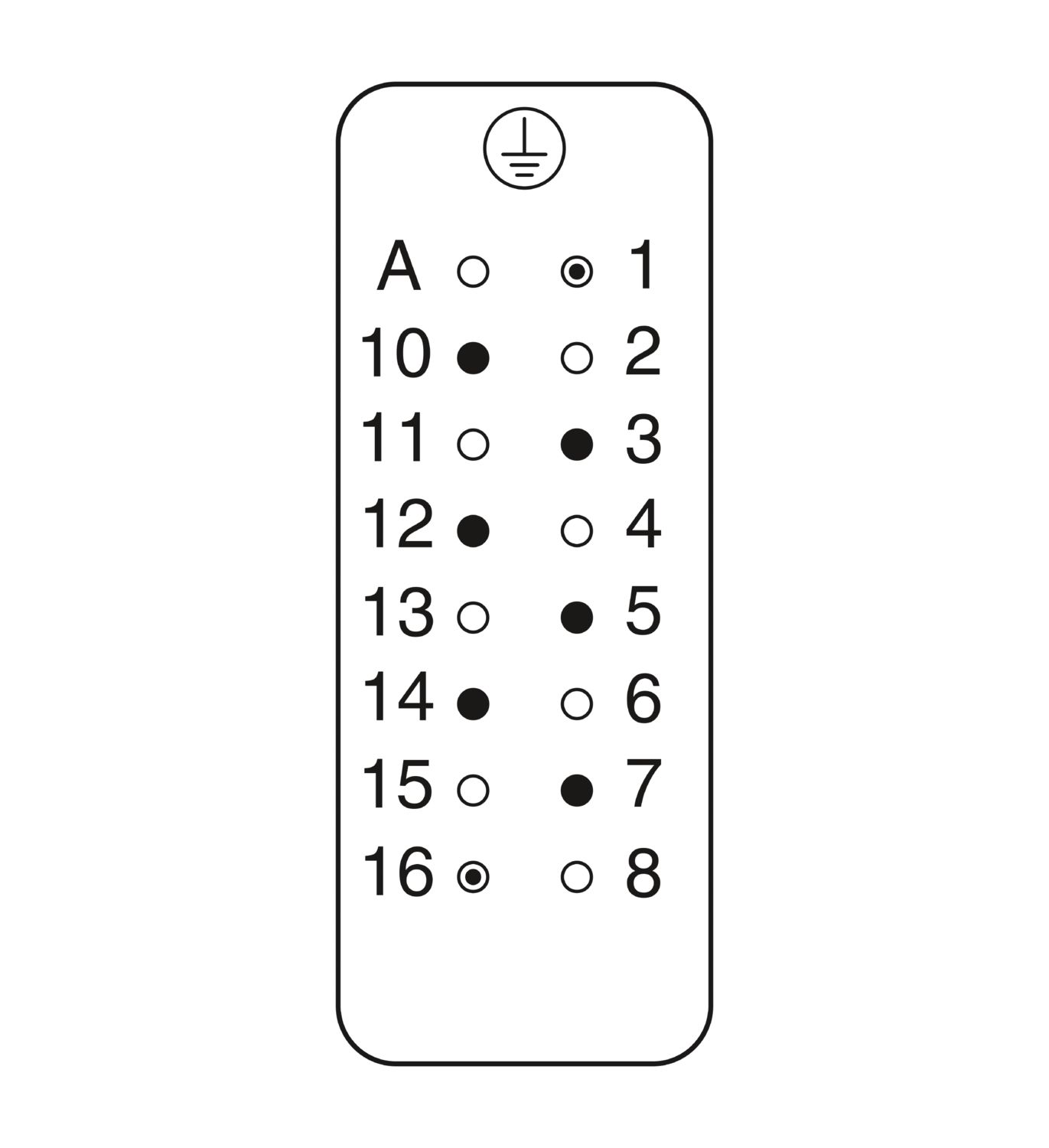

Connection profile 6+2+PE
Number of connections per position 1
No. of power contacts 6
No. of control contacts 2
Contact type turned
Series HC-HV
Insulation characteristics
Overvoltage category III
Degree of pollution 3

Connection technology
Connection technology Crimp connection
Number of connections per position 1
Conductor connection
Conductor cross section 0.5 mm² ... 4 mm² (power contacts)
0.5 mm² ... 4 mm² (control contacts)
Connection cross section AWG 20 ... 12 (power contacts)
20 ... 12 (control contacts)
Stripping length of the individual wire 7.5 mm (Power contact)
7.5 mm (control contact)

Dimensional drawing
Width 34 mm
Height 32 mm
Length 84 mm
Drill hole distance, horizontal 77.5 mm
Drill hole distance, vertical 27 mm
Mechanical characteristics
Contact diameter 2.5 mm

Rated voltage (III/3) 830 V (power contacts)
500 V (control contacts)
Rated surge voltage 8 kV (power contacts)
6 kV (control contacts)

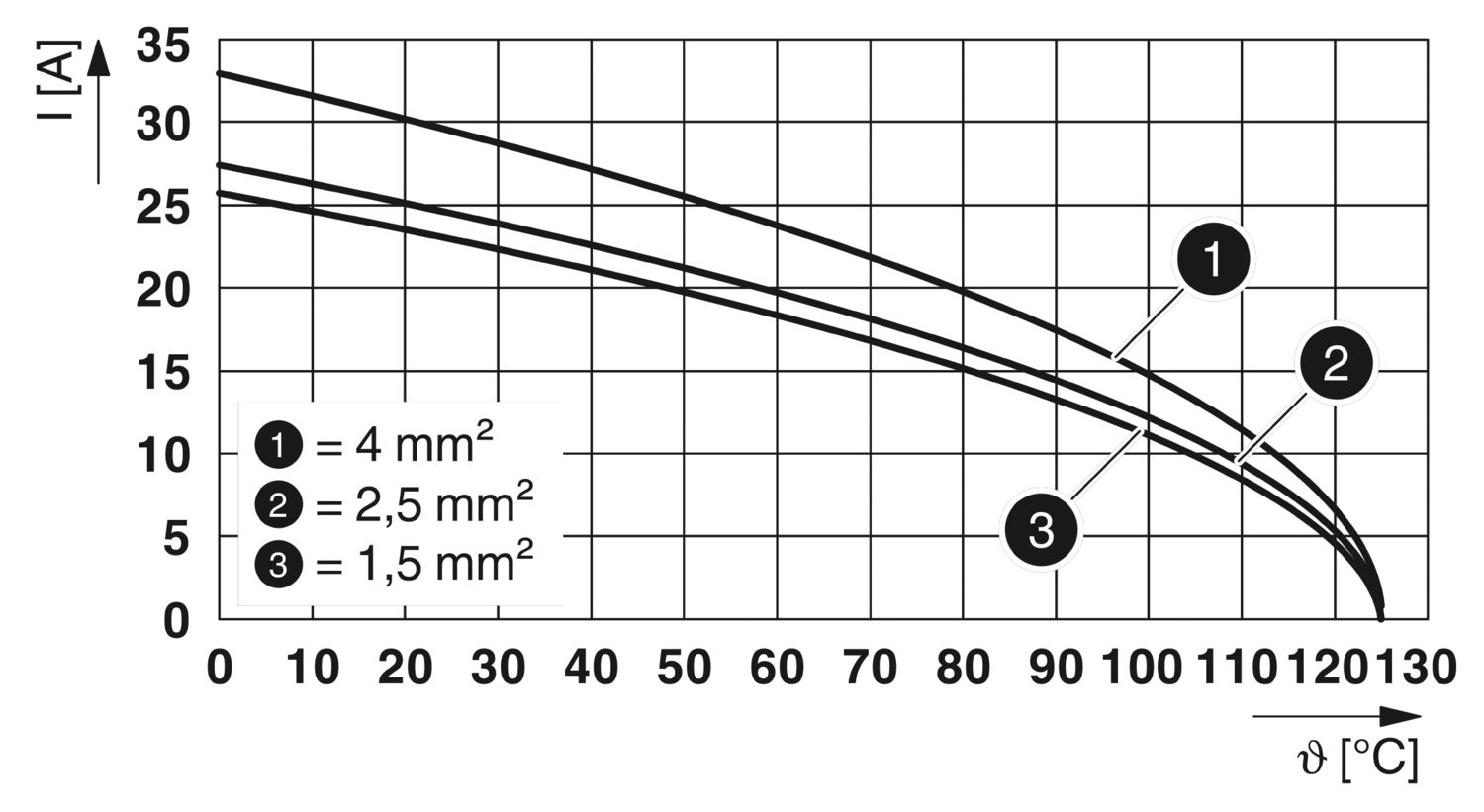

Rated current 16 A (power contacts)
16 A (control contacts)

Flammability rating according to UL 94 V0
Contact material Copper alloy
Contact surface material Ag (alternatively Au)
Contact carrier material PC
Standards/regulations PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Insertion/withdrawal cycles ≥ 500

Cable structure
Stripping length of the individual wire 7.5 mm (Power contact)
7.5 mm (control contact)

Assembly instructions To ensure correct use, installation in housing with IP54 protection or better is required

Ambient temperature (operation) -40 °C ... 125 °C (including heating up of contacts)

Testing
Standards/regulations PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Item number 1405262
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key B10
Product Key BF7ABG
Catalog Page Page 561 (C-2-2019)
GTIN 4055626063508
Weight per Piece (including packing) 67.86 g
Weight per Piece (excluding packing) 46.6 g
Customs tariff number 85366990
Country of origin CN


ECLASS

ECLASS-9.0 27440205
ECLASS-10.0.1 27440205
ECLASS-11.0 27440205

ETIM

ETIM 8.0 EC000438

UNSPSC

UNSPSC 21.0 39121500

DNV

Approval ID: TAE000037S

CSA

Approval ID: 013631_6233_01
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 20 A 20 - 12

EAC

Approval ID: RU C-DE.BL08.B.00511

cULus Recognized

Approval ID: E468743
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 16 A - 12

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
