Contact insert - HC-HS06-I-UT-M 7-12
1406534

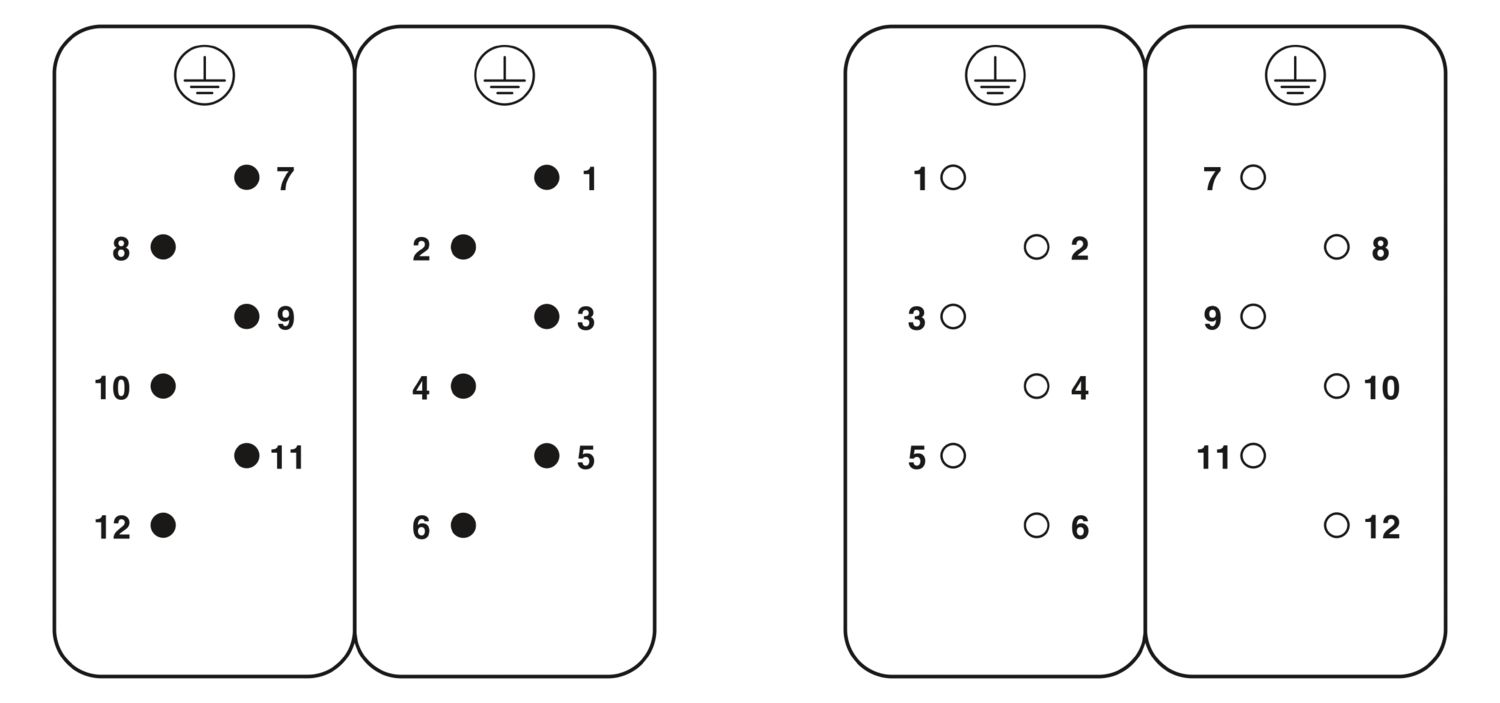

HEAVYCON male insert, HS6 series, screw connection, numbering from 7-12


Product Details




General For HEAVYCON housing B16 and B32
General Connectors may be operated only when there is no load/voltage.

Type B16
B32
Product type Contact insert with a fixed no. of positions
Number of positions 6
Connection profile 6+PE
Application Power
Contact type turned
Series HC-HS
Insulation characteristics
Overvoltage category III
Degree of pollution 3

Connection technology
Connection technology Screw connection
Connection in acc. with standard IEC / EN
Conductor connection
Conductor cross section 0.5 mm² ... 6 mm² (power contacts)
Connection cross section AWG 20 ... 10
Tightening torque 1.2 Nm
Stripping length of the individual wire 10 mm

Dimensional drawing
Width 34 mm
Height 34 mm
Length 84.5 mm
Drill hole distance, horizontal 77.5 mm
Drill hole distance, vertical 27 mm
Mechanical characteristics
Contact diameter 3.5 mm

Rated voltage (III/3) 400 V (Conductor-PE)
690 V (Conductor-Conductor)
Rated voltage for power contacts 400/690 V
Rated surge voltage 6 kV (power contacts)
Rated current 41 A (power contacts)
SCCR 5 kA (UL 2237)

Flammability rating according to UL 94 V0
Contact material Copper alloy
Contact surface material Ag
Contact carrier material PC
Standards/regulations PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Insertion/withdrawal cycles ≥ 500

Cable structure
Stripping length of the individual wire 10 mm

Assembly instructions To ensure correct use, installation in housing with IP54 protection or better is required

Ambient temperature (operation) -40 °C ... 125 °C (including heating up of contacts)

Testing
Standards/regulations PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Item number 1406534
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key B10
Product Key BF7ABI
Catalog Page Page 563 (C-2-2019)
GTIN 4046356926287
Weight per Piece (including packing) 93 g
Weight per Piece (excluding packing) 91.62 g
Customs tariff number 85366990
Country of origin CN


ECLASS

ECLASS-9.0 27440205
ECLASS-10.0.1 27440205
ECLASS-11.0 27440205

ETIM

ETIM 8.0 EC000438

UNSPSC

UNSPSC 21.0

DNV

Approval ID: TAE000037S

CSA

Approval ID: 013631_0_000
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 32 A - 10

UL Recognized

Approval ID: FILE E 118976
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 35 A

EAC

Approval ID: RU C-DE.AI30.B.01102

UL Recognized

Approval ID: E468743
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
600 V 35 A

EAC

Approval ID: RU C-DE.BL08.B.00511

REACh SVHC Lead 7439-92-1
China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”

Your advantages

For fast coding with plastic profile
