DC-B 6-IB-7X4-PCB- 90
-
Contact insert
1602180

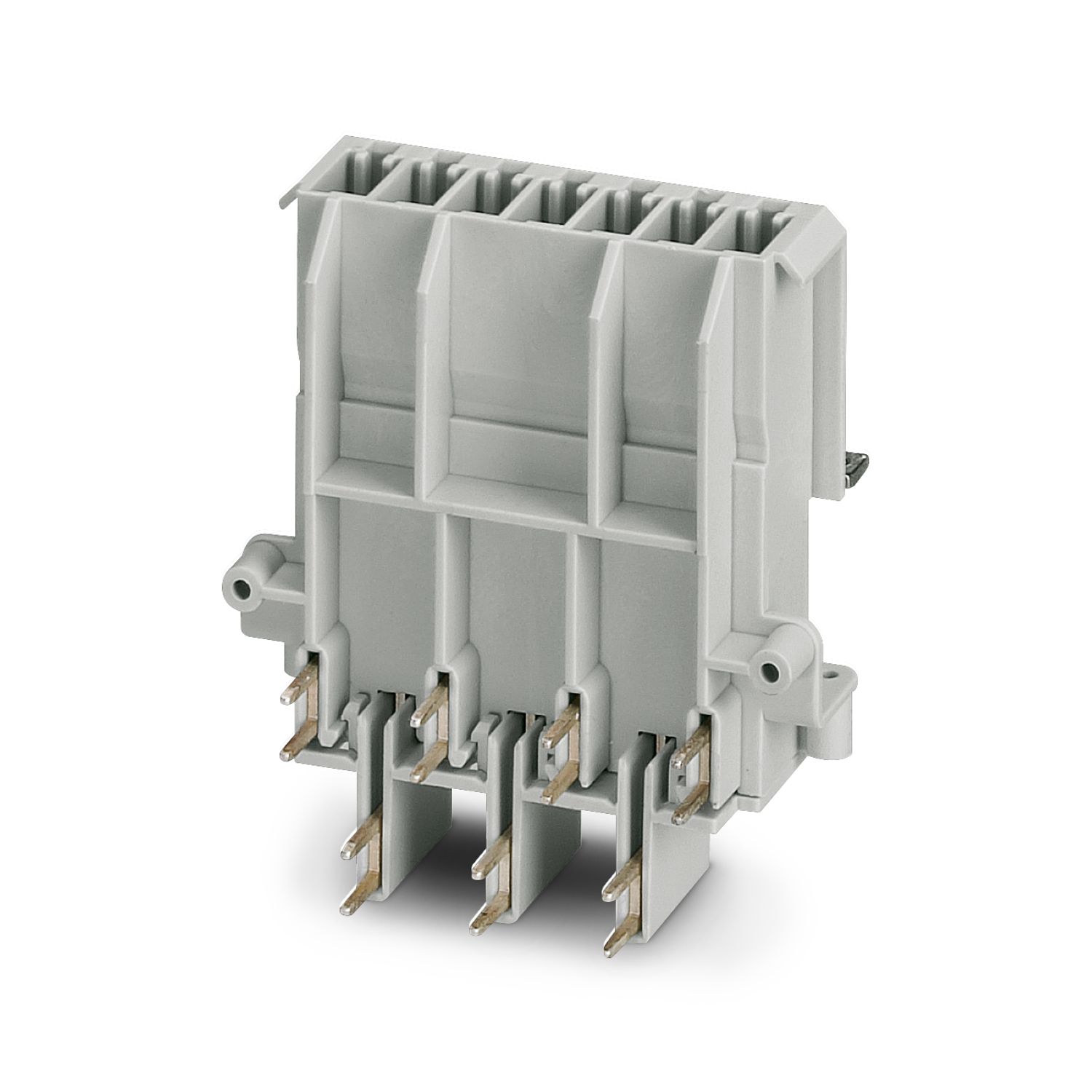

DUPLICON, panel mounting contact insert, 6 x 4 mm2 + PE, 400/690 V, 25 A, 90° PCB connection, type B6, IP20 protection
Product details
| Product type | Contact insert with a fixed no. of positions |
| Type | DC-B6 |
| Number of positions | 6 |
| Connection profile | 6+PE |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

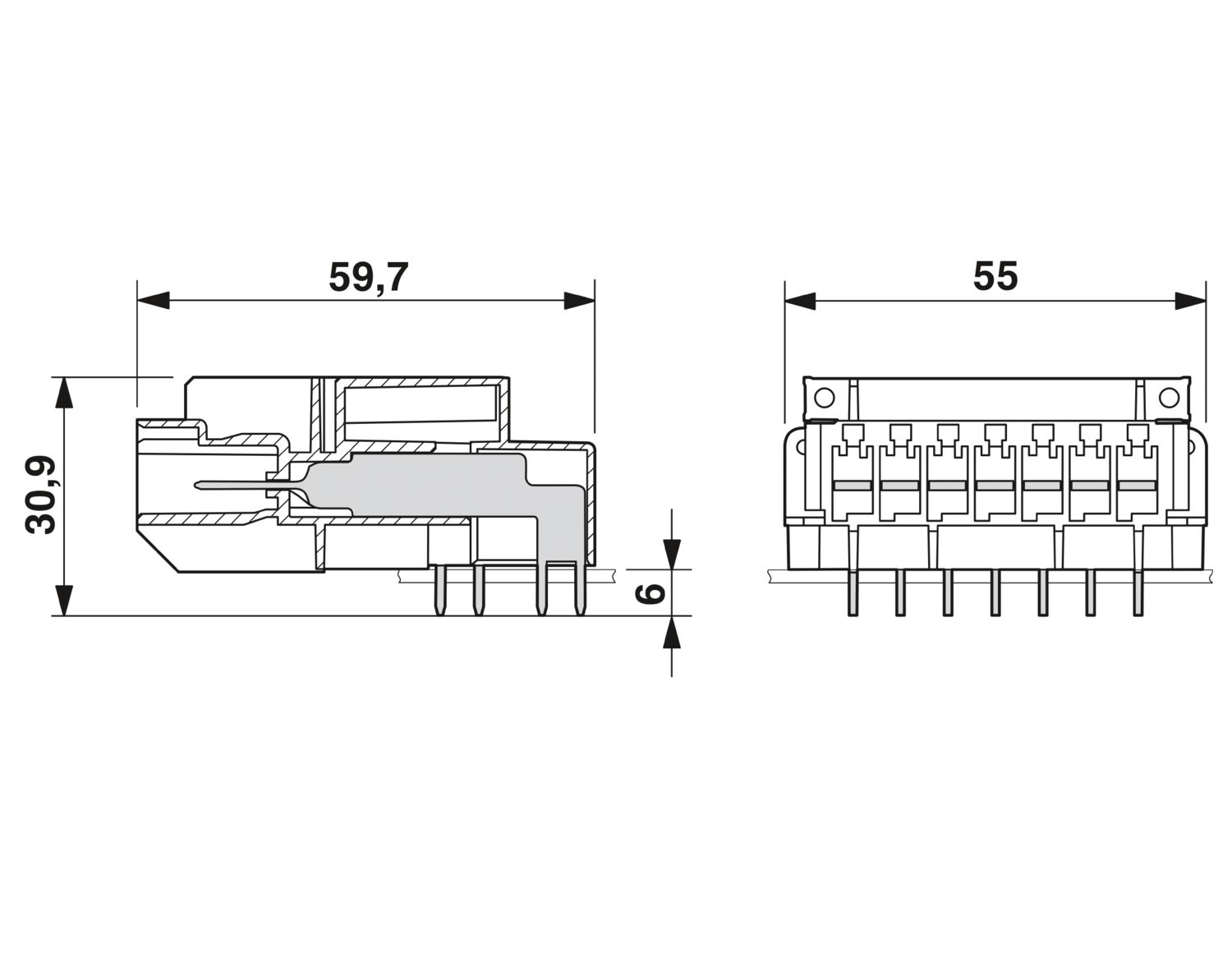

| Dimensional drawing |
|
| Width | 55 mm |
| Height | 30.9 mm |
| Length | 59.7 mm |
| Connection technology | |
| Connection technology | Solder connection |
| Rated voltage (III/3) | 400 V (Conductor-PE) |
| 690 V (Conductor-Conductor) | |
| Rated surge voltage | 6 kV |
| Rated current | 25 A |
| 25 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Contact material | Cu |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
