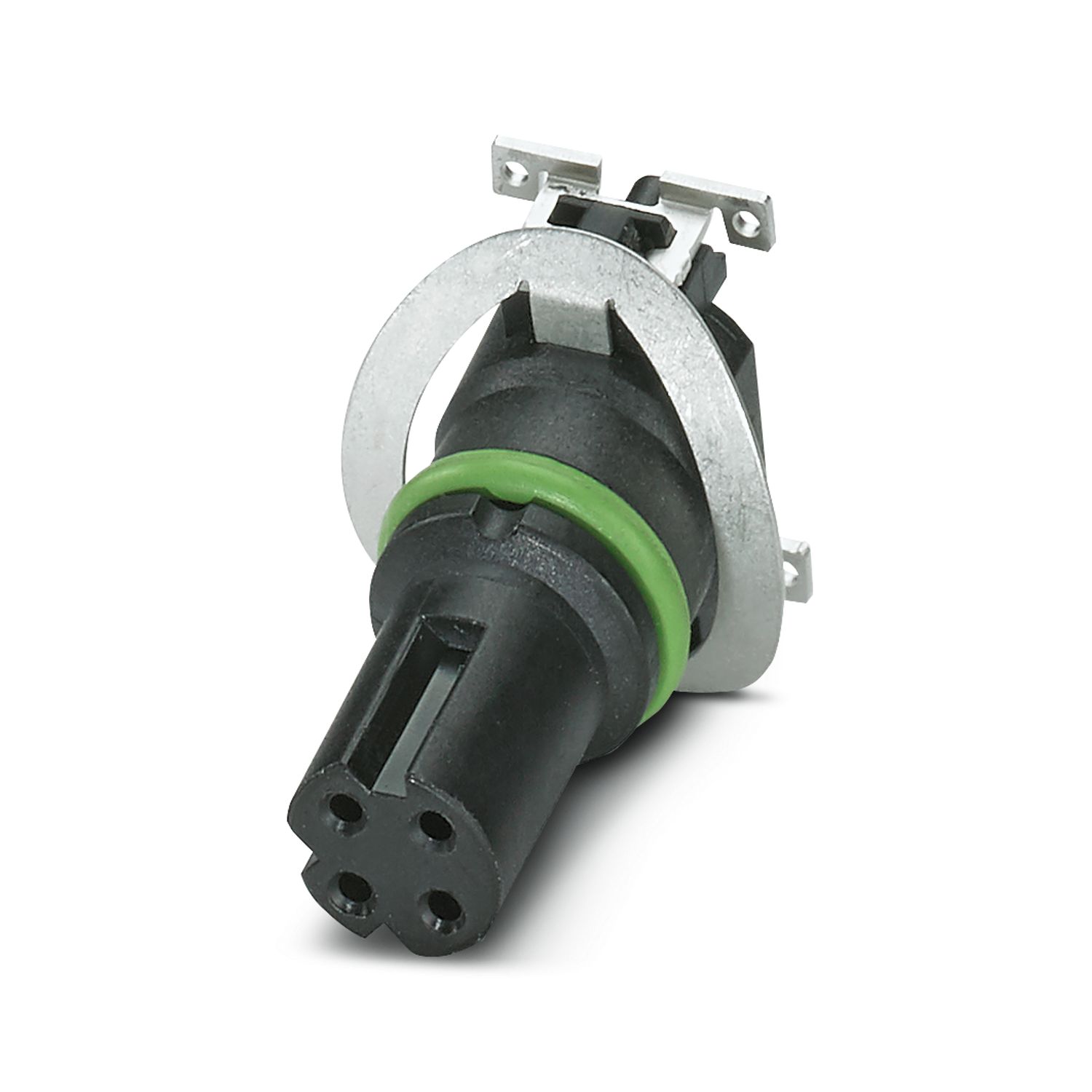

SACC-CIP-M8FSD-4P SMD SH R32 - Contact carrier

1068454

Contact carrier, Ethernet/PROFINET CAT5 (100 Mbps), 4-position, Socket, straight, M8, D-coding, SMD reflow

Product details

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Product type	Contact insert
Application	Data
	Signal
Sensor type	Ethernet/PROFINET
Number of positions	4
Seal present	yes
Shielded	yes
Coding	D
Thread type	M8
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	1.5 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	50 V AC
	60 V DC
Nominal current I_N	4 A
Transmission speed	100 Mbps
Transmission characteristics (category)	CAT5 (IEC 11801:2002)

Connection method	SMD reflow

Signal type/category	Ethernet/PROFINET CAT5, 100 Mbps

Flammability rating according to UL 94	V0
Seal material	FKM
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	M8
Coding	D

Signal type/category	Ethernet/PROFINET CAT5, 100 Mbps

Mechanical data
Insertion/withdrawal cycles	> 100

Ambient conditions
Degree of protection (when plugged in)	IP67 (correctly plugged in and locked)
Degree of protection	IP67 (correctly plugged in and locked)
Ambient temperature (operation) (male connector/female connector)	-25 °C ... 105 °C
	-40 °C ... 105 °C (without mechanical actuation)

Standard designation	M8 circular connector
Standards/specifications	based on IEC 61076-2-114

Type of packaging	Belt

Commercial data

Item number	1068454
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	AB22
Product key	ABQHCH
GTIN	4055626801919
Weight per piece (including packing)	5.03 g
Weight per piece (excluding packing)	2.221 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	60 V	4 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Reduced mounting costs thanks to two-piece device connector

Packaging available for automated pick and place assembly

All common pin assignments and codings available

Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate

Additional gasket for the device when not plugged in

ECLASS-13.0	27440110
ECLASS-15.0	27440110

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	56e69896-13a6-4a1b-b19a-1b76317b4858
