cULus Recognized
Approval ID: E468743| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| 150 V | 10 A | - 14 |
HC-M-42-CT-F
-
Contact insert module
1450937
Contact insert module, number of positions: 42, power contacts: 0, control contacts: 42, Socket, Crimp connection, 150 V, 10 A, 0.14 mm2 ... 2.5 mm2, application: Signal
Product details
| General | For HEAVYCON housing type B6 to B48, HC-M-B...MF-... hinged module carrier frame required, CK1,6-ED... crimp contacts, crimp contacts not supplied as standard. |
| General | Connectors may be operated only when there is no load/voltage. |
| General | The use of guide pins (HC-CST) and sockets (HC-CBU) is recommended to prevent tip collision due to misalignment. |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Product type | Modular contact insert |
| Series | HC-M-42 |
| Application | Signal |
| Number of positions | 42 |
| Connection profile | 42 |

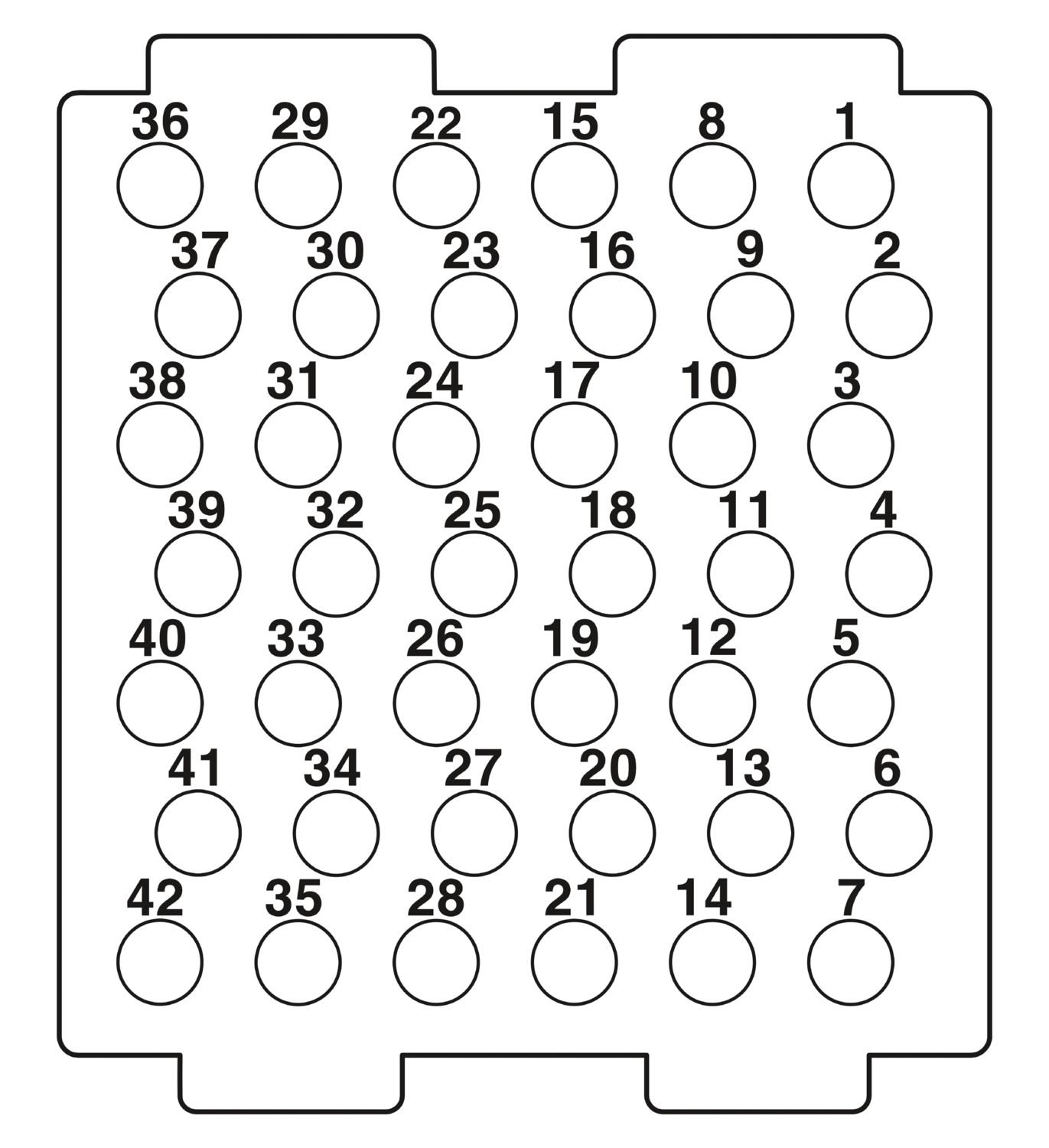

| Contact numbering | 1 - 42 |
| Number of module slots | 2 |
| No. of power contacts | 0 |
| No. of control contacts | 42 |
| Contact material type | turned |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection technology | Crimp connection |
| Conductor connection | |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Connection cross section AWG | 26 ... 14 |
| Stripping length of the individual wire | 8 mm (6 mm with 2.5 mm²) |

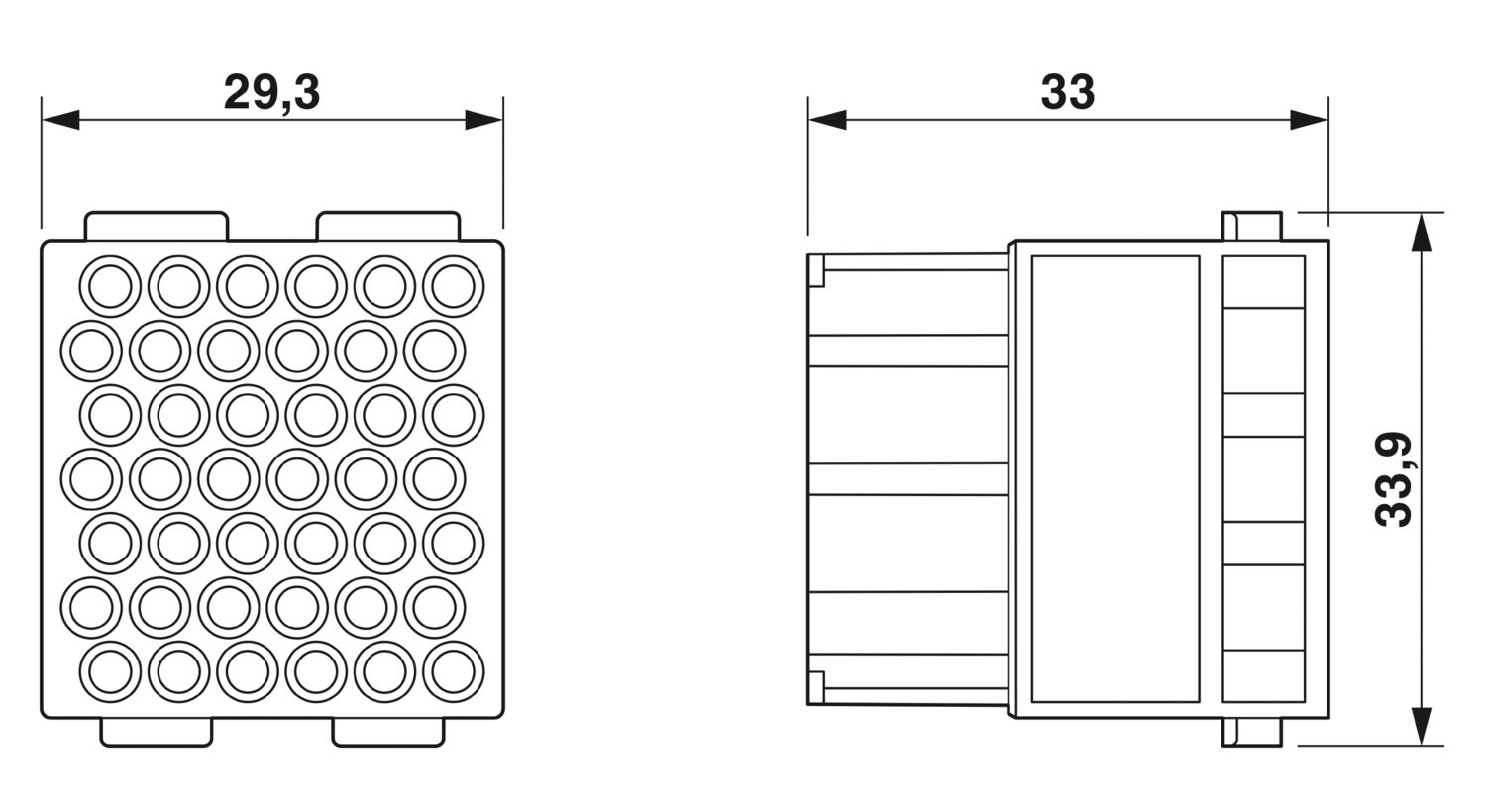

| Dimensional drawing |
|

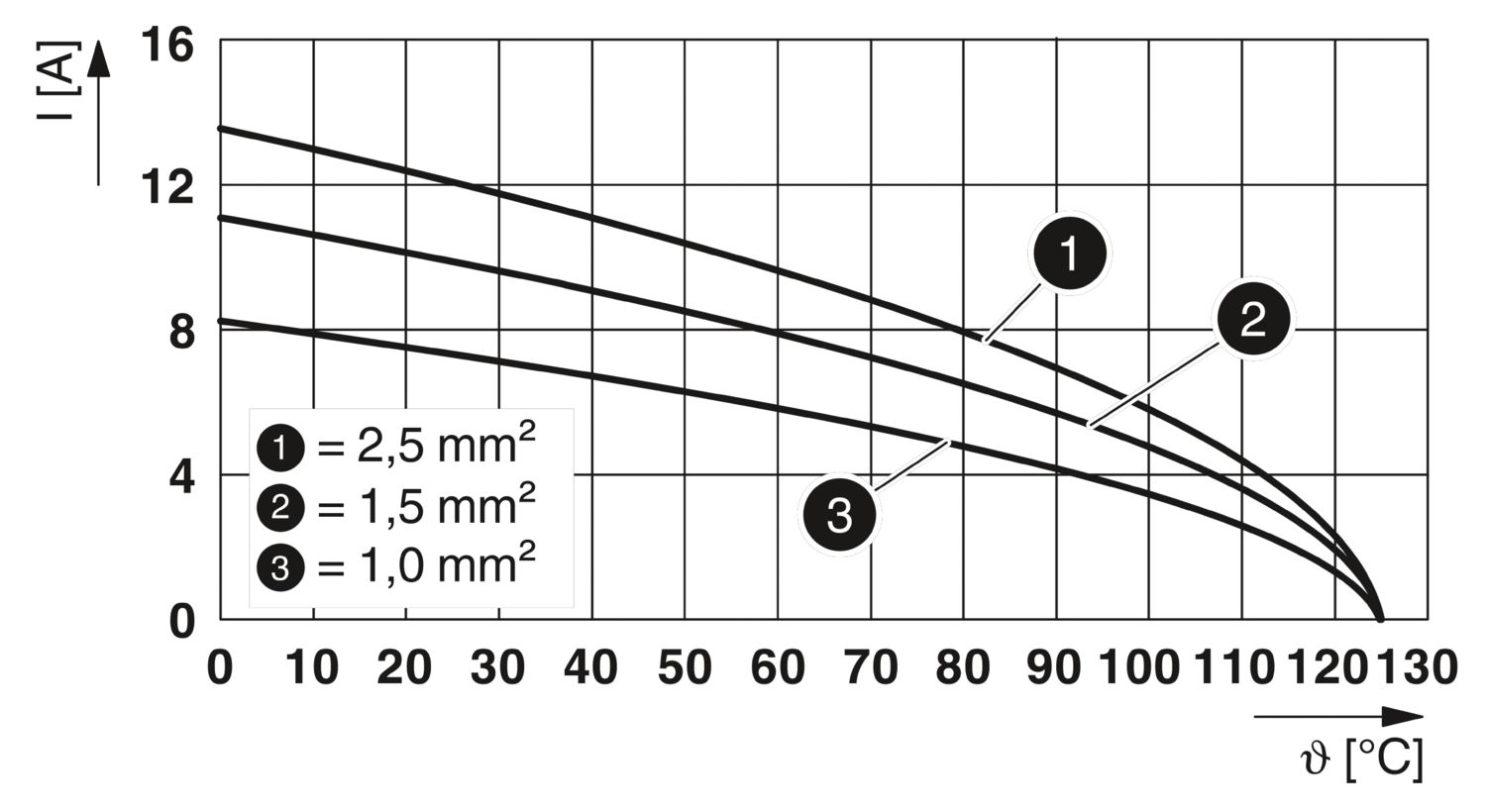

| Width | 33.9 mm |
| Height | 33 mm |
| Length | 29.3 mm |
| Mechanical characteristics | |
| Contact diameter | 1.6 mm |
| Rated voltage (III/3) | 150 V |
| Rated surge voltage | 2.5 kV |
| Rated current | 10 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag (alternatively Au) |
| Contact carrier material | PC |
| Standards/regulations | PC |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Testing | |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
