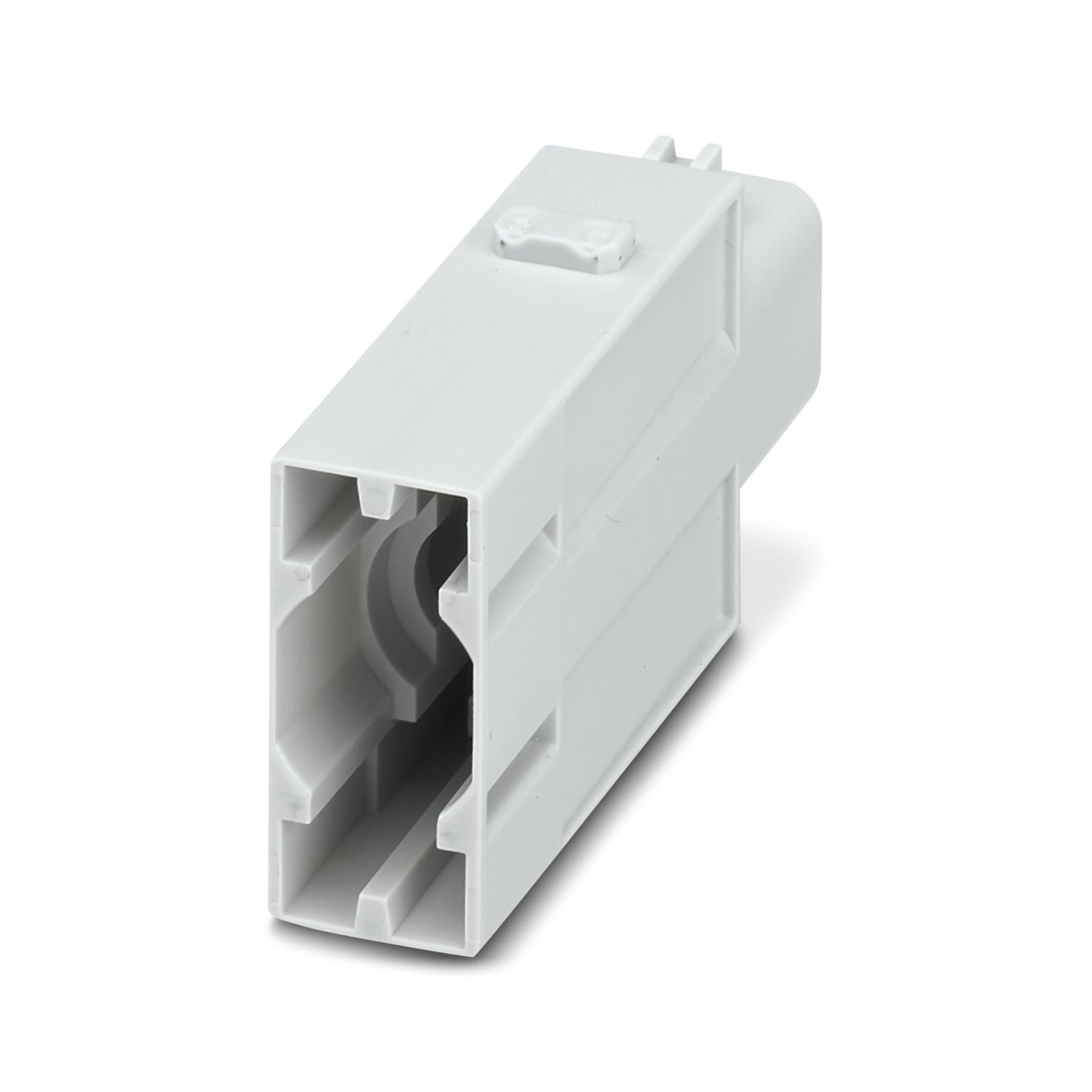

HC-M-01-CT-M-35 - Contact insert module

1544120

Contact insert module, number of positions: 1, power contacts: 1, control contacts: 0, Pin, Crimp connection, 830 V, 100 A, 10 mm² ... 35 mm², application: Power, without crimp contacts

Product details

General	For HEAVYCON housing design B6 to B48, HC-M-MHR... hinged retaining frame required, CK8,0-ED... crimp contacts (crimp contacts not supplied as standard)
General	Order crimp contacts separately

Assembly note	To ensure correct use, installation in housing with IP54 protection or better is required

Product type	Modular contact insert
Series	HC-M-01
Application	Power
Number of positions	1
Connection profile	1
Number of module slots	1
No. of power contacts	1
No. of control contacts	0
Contact material type	turned
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Connection technology
Connection technology	Crimp connection
Conductor connection
Conductor cross section	10 mm² ... 35 mm² (The cross section specification refers to the geometric cross section of the cable used)
Connection cross section AWG	8 ... 2 (The cross section specification refers to the geometric cross section of the cable used)

Width	34 mm
Height	58 mm
Length	15 mm
Mechanical characteristics
Minimum housing height	72 mm
Contact diameter	8 mm

Rated voltage (III/2) contacts	1000 V
Rated voltage (III/3)	830 V
Rated surge voltage	8 kV
Rated current	100 A

Mechanical data
Insertion/withdrawal cycles	≥ 500

Flammability rating according to UL 94	V0
Contact material	Copper alloy
Contact surface material	Ag
Contact carrier material	PC
Standards/regulations	PC

Ambient conditions
Ambient temperature (operation)	-40 °C ... 125 °C

Testing
Standards/regulations	PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Commercial data

Item number	1544120
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BF62
Product key	AF7ACE
GTIN	4067923017313
Weight per piece (including packing)	14.4 g
Weight per piece (excluding packing)	13 g
Customs tariff number	85389099
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	1000 V	100 A	- 2

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
keine
	1000 V	100 A	- 2

Environmental product compliance

Compatible products

Accessories

ECLASS-13.0	27440217
ECLASS-15.0	27440217

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
