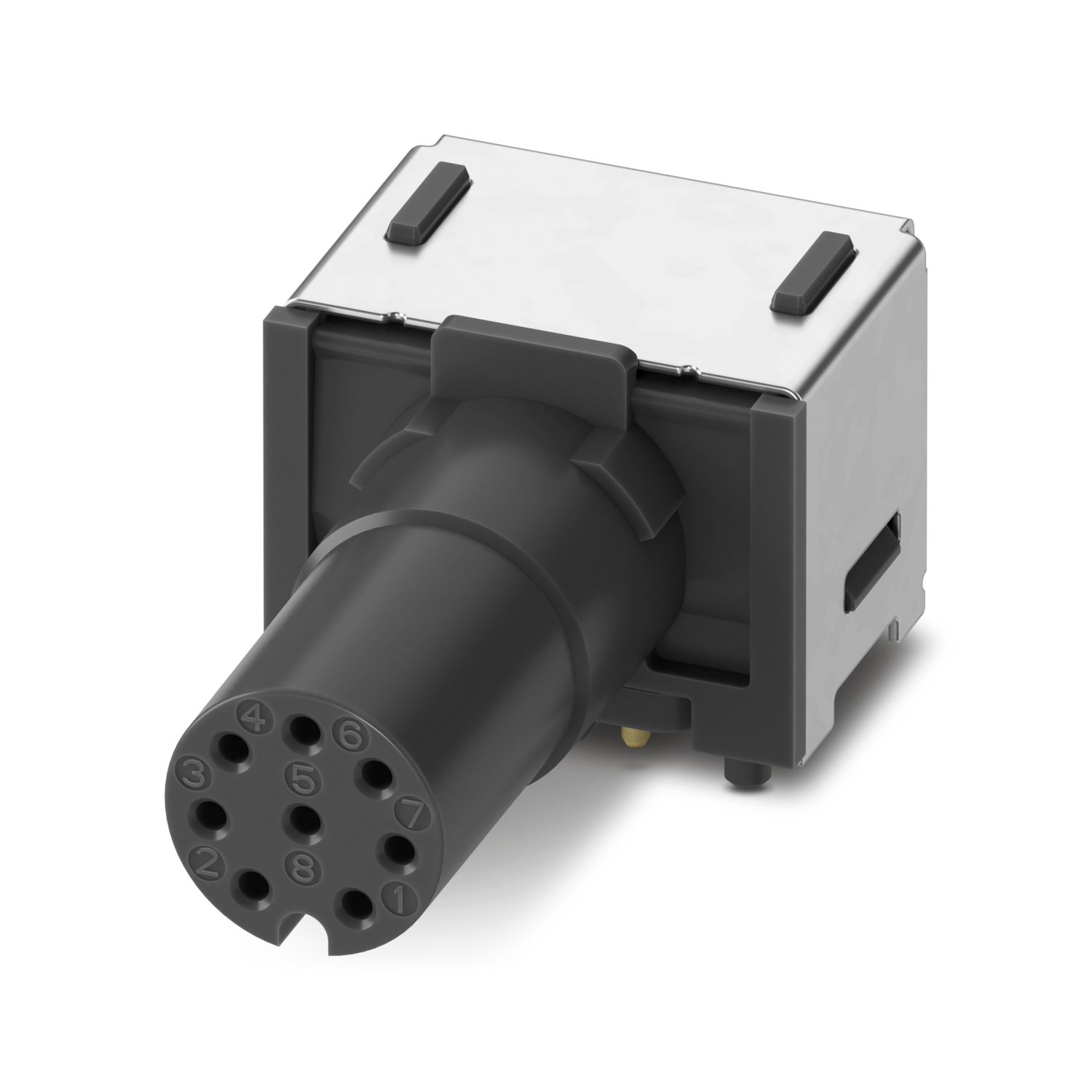

SACC-CI-M12FSR-8CON-L90 THR T - Contact carrier

1706890

Contact carrier, 8-position, Socket, angled, M12, coding: A, THR solder connection, THR solder connection

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:	Not compatible with SPEEDCON housings.

Product type	Contact insert
Application	Signal
Number of positions	8
Shielded	no
Coding	A
Thread type	M12
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Rated surge voltage	0.8 kV
Contact resistance	≤ 10 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	30 V
Nominal current I_N	2 A

Connection method	THR solder connection

Flammability rating according to UL 94	V0
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA 6.6

Connection 1
Head design	Socket
Head cable outlet	angled
Head thread type	M12
Coding	A

Mechanical data
Insertion/withdrawal cycles	> 100

Ambient conditions
Degree of protection	IP67, in plugged and locked state
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 105 °C (without mechanical actuation)
UL Type Rating	Type 4 (indoor use only)

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101

Mounting type	THR solder connection The pin assignment is rotated 180° to comply with the standard.
Assembly note	The pin assignment is rotated 180° to comply with the standard.

Type of packaging	Tray

Item number	1706890
Packing unit	120 pc
Minimum order quantity	120 pc
Product key	ABQAHS
GTIN	4067923266827
Weight per piece (including packing)	6.156 g
Weight per piece (excluding packing)	6.156 g

Compatible products

Accessories

Your advantages

Suitable for pick-and-place: Automated assembly on the PCB helps to increase efficiency in production

Optimized design: Shifted center of gravity, thereby “effortless” standing on the PCB without locking clips

Flexible: Easy positioning and alignment on the PCB even in confined spaces

Modular: Compatible with the available THR housings

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
