HC-EVO-B16PT-BWSC-HH-M25ELC-AL
-
Connector set
1411492

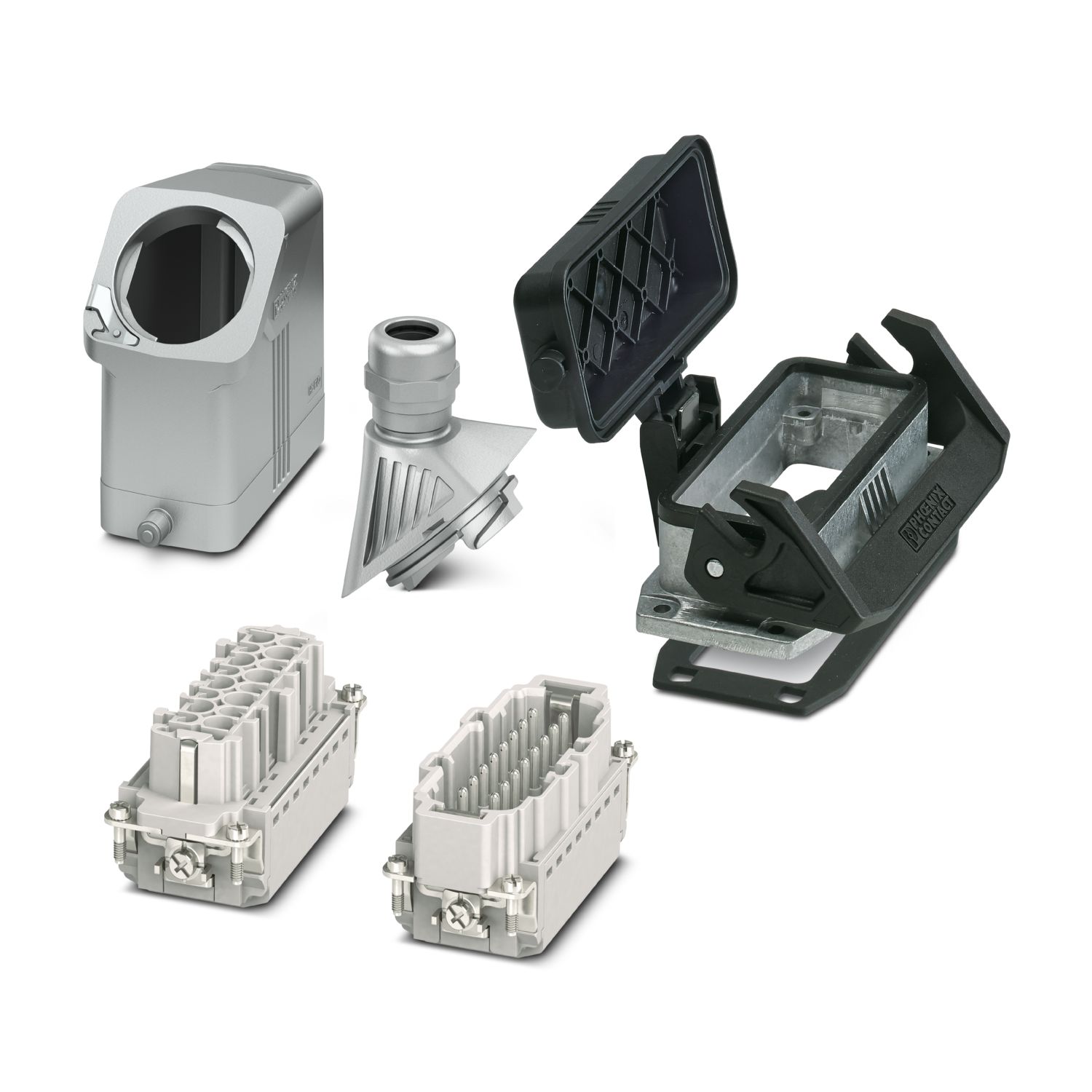

EVO connector set, B16 series, metal housing, consisting of sleeve housing 1411461, panel mounting base 1411325, EVO screw connection 1411446, pin contact insert 1407732, socket contact insert 1407731
Product details
| Product type | Connector set |
| Housing type | Complete housing |
| Series | HC-B |
| Type | B16 |
| Number of positions | 16 |
| Connection profile | 16+PE |
| No. of cable outlets | 1 |
| Seal present | yes |
| Protective cover | yes |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 500 V |
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
| Connection method | Push-in connection |
| Connection technology | Push-in connection |
| Conductor cross section | 0.14 mm² ... 2.5 mm² (with ferrule) |
| 0.14 mm² ... 2.5 mm² (with ferrule) | |
| Connection cross section AWG | 26 ... 14 |
| Tightening torque | 0.5 Nm ... 1.7 Nm (Fixing screws for panel mounting base) |
| Stripping length | 8 mm ... 10 mm |

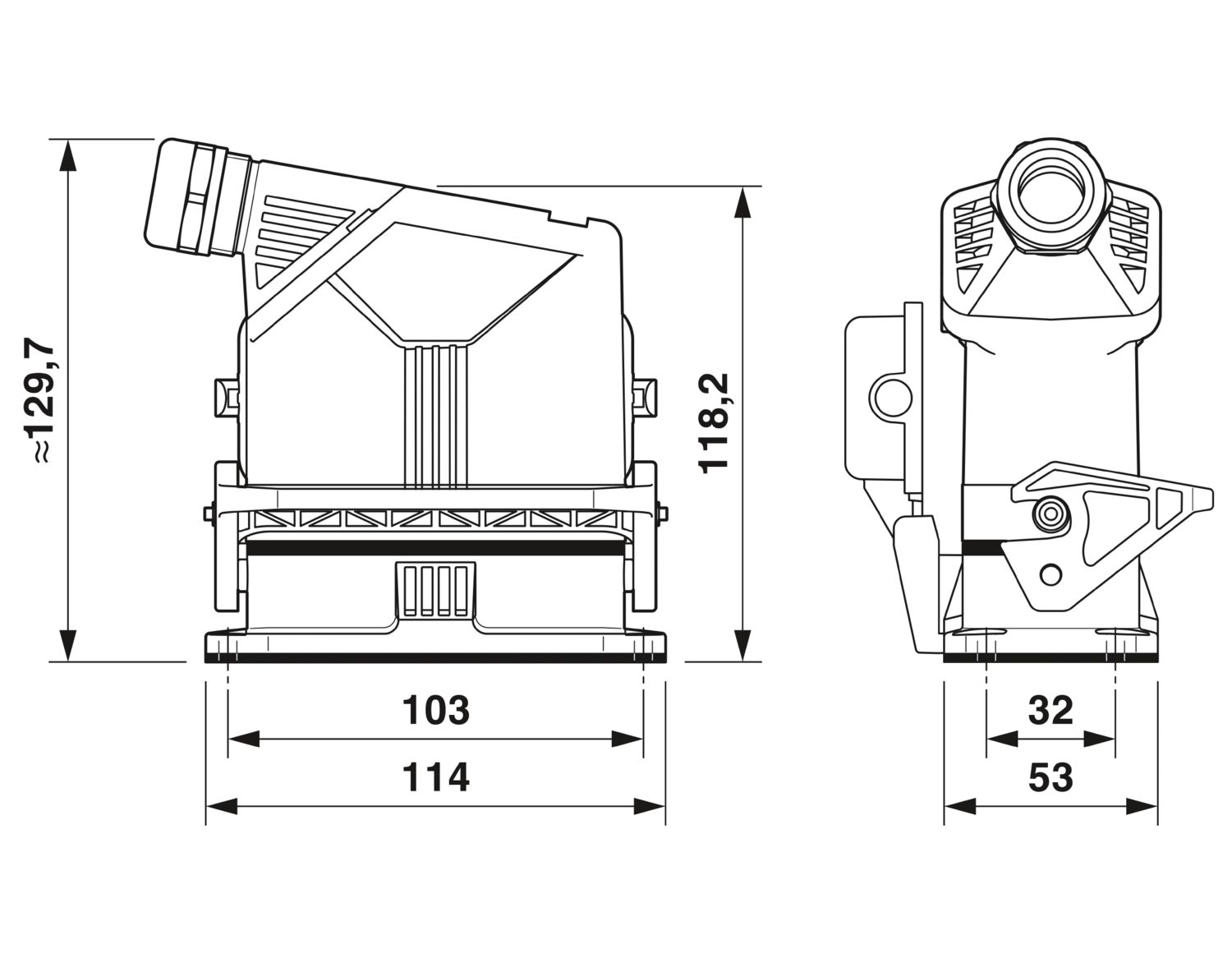

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 118.5 mm |
| Length | 114 mm |
| Drill hole distance, horizontal | 103 mm |
| Drill hole distance, vertical | 32 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
| Material Housing | Die-cast aluminum, corrosion-resistant |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| NBR | |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Locking latch material | PA |
| External cable diameter | 11 mm ... 16 mm |
| Mechanical data | |
| Locking type | Latch |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| IP66 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Mounting type | Screw mounting |
| Assembly note | Coding also using the CP-HC (1686478) coding profiles. HC-B6../ HC-B10..for two coding profiles. HC-B16../ HC-B24..for four coding profiles. |
| Connectors may only be operated when there is no load/the power is switched off. Can be used for solid wires and stranded wires with ferrule. |
