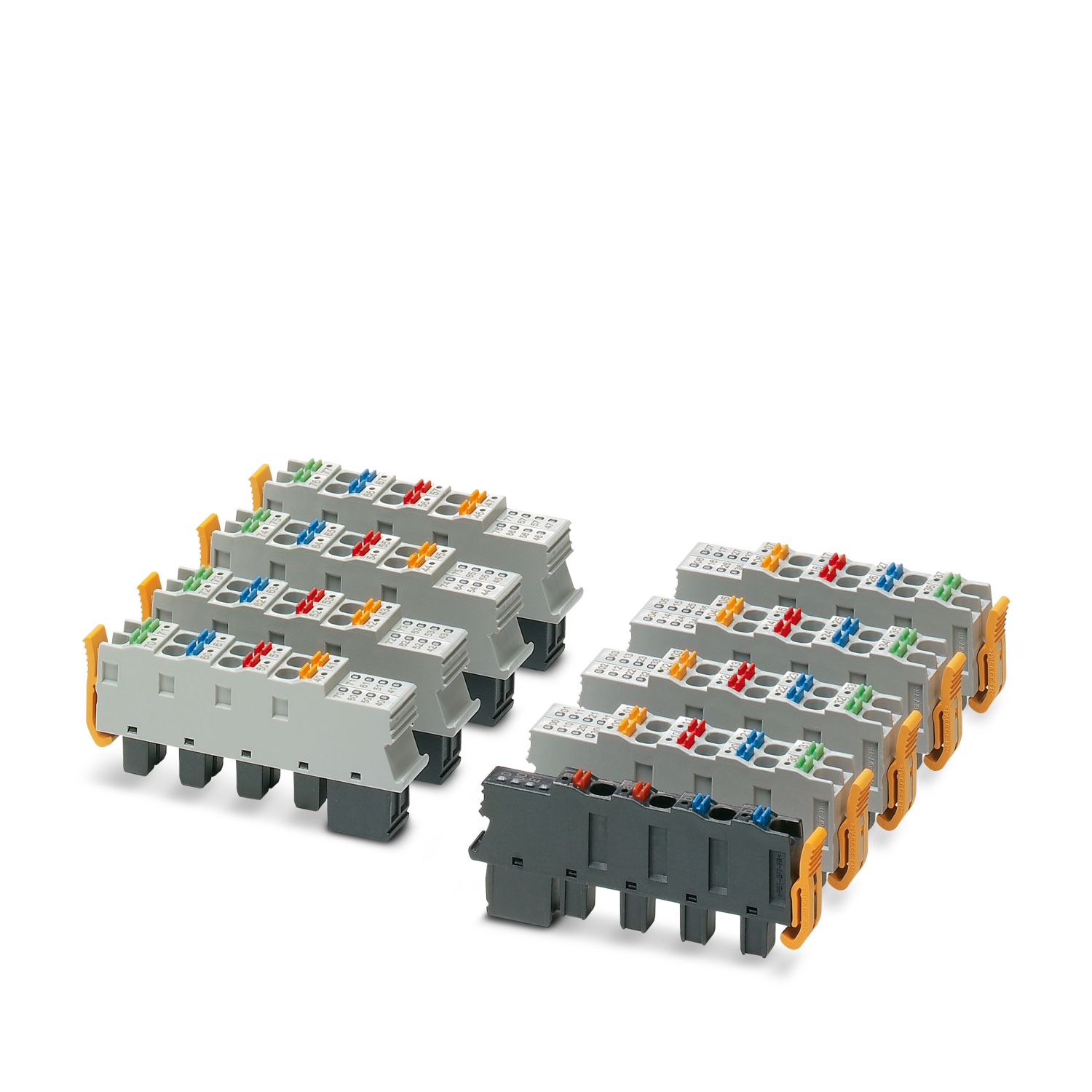

AXL CNS 8L-ORBG/D/UI/E1/E2 - Connector set
AXL CNS 8L-ORBG/D/UI/E1/E2
-
Connector set
2700980
Axioline F connector set (for e.g., AXL F DI16/4 2F)
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Connector set
Application
Axioline
Connection data
Connection method
Push-in connection
Conductor cross section, rigid
0.2 mm² ... 1.5 mm²
Conductor cross section, flexible
0.2 mm² ... 1.5 mm²
Conductor cross section AWG
24 ... 16
Stripping length
8 mm
Commercial data
Item number
2700980
Packing unit
1 pc
Note
Made to order (non-returnable)
Sales key
DR02
Product key
DRI2Z1
GTIN
4046356668767
Weight per piece (including packing)
111 g
Weight per piece (excluding packing)
111 g
Customs tariff number
85366990
Country of origin
DE
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories
AXL F DI16/4 2F
-
Digital module
2688022
