PDCC-MINMS-6CON - Connector

PDCC-MINMS-6CON - Connector

1559247

Connector, 6-position, Plug straight 7/8"-16UNF, coding: A, Screw connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 17 mm

Product details

Expand all Collapse all

Technical data

Notes

Assembly note	with packaging

Product properties

Product type	Circular connector (cable-side)
Number of positions	6
Shielded	no

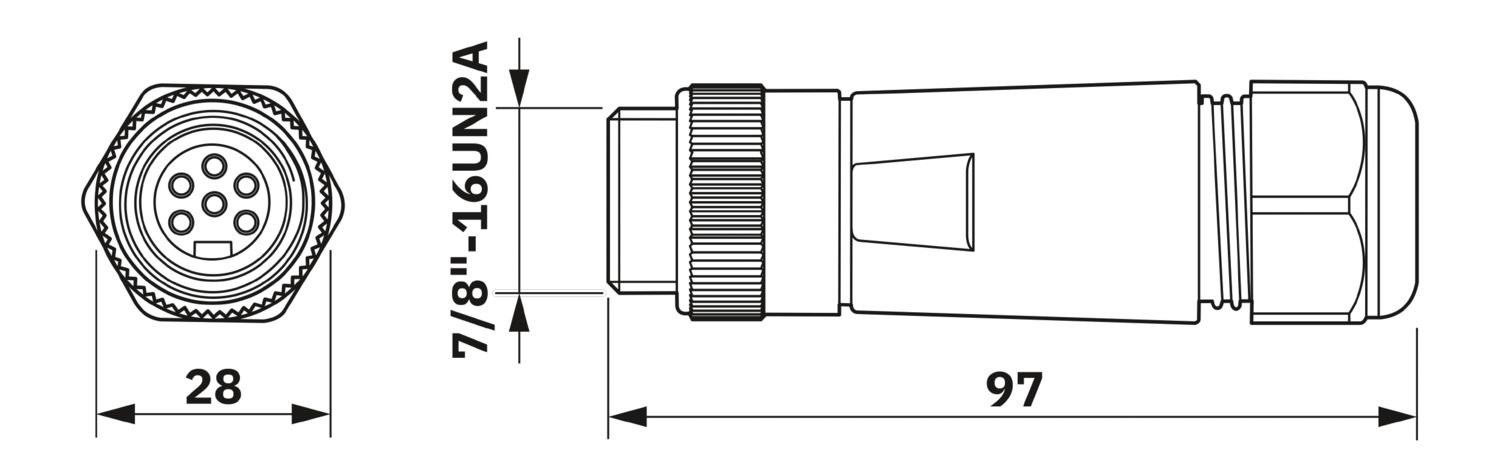

Dimensions

External dimensions
Outside diameter	8 mm ... 17 mm

Material specifications

Seal material	NBR
Material of grip body	Black polyamide
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PVC
Material for screw connection	Brass, nickel-plated

Connection data

Conductor connection
Connection method	Screw connection
Connection cross section AWG	22 ... 16
Tightening torque	7/8" connector

Electrical properties

Nominal voltage U_N	600 V (UL Rating)
Nominal voltage U_N		50 V AC (IEC Rating)
Nominal current I_N	8 A (8 A (16 AWG), 5.5 A (18 AWG), 4 A (20 - 22 AWG))

Connector

Connection 1
Head design	Plug
Head cable outlet	straight
Head thread type	7/8"-16UNF
Coding	A

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67

Standards and regulations

Standards/specifications	UL 2238

Commercial data

Item number	1559247
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BF37
Product key	AF2ICB
GTIN	4067923039544
Weight per piece (including packing)	22.22 g
Weight per piece (excluding packing)	22.22 g
Country of origin	US

Classifications

ECLASS

ECLASS-13.0

27440116

ETIM

ETIM 9.0

EC002635

Approvals



cULus Listed

Approval ID: E221474

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
