PDCC-MINFS-6CON - Connector

PDCC-MINFS-6CON - Connector

1559248

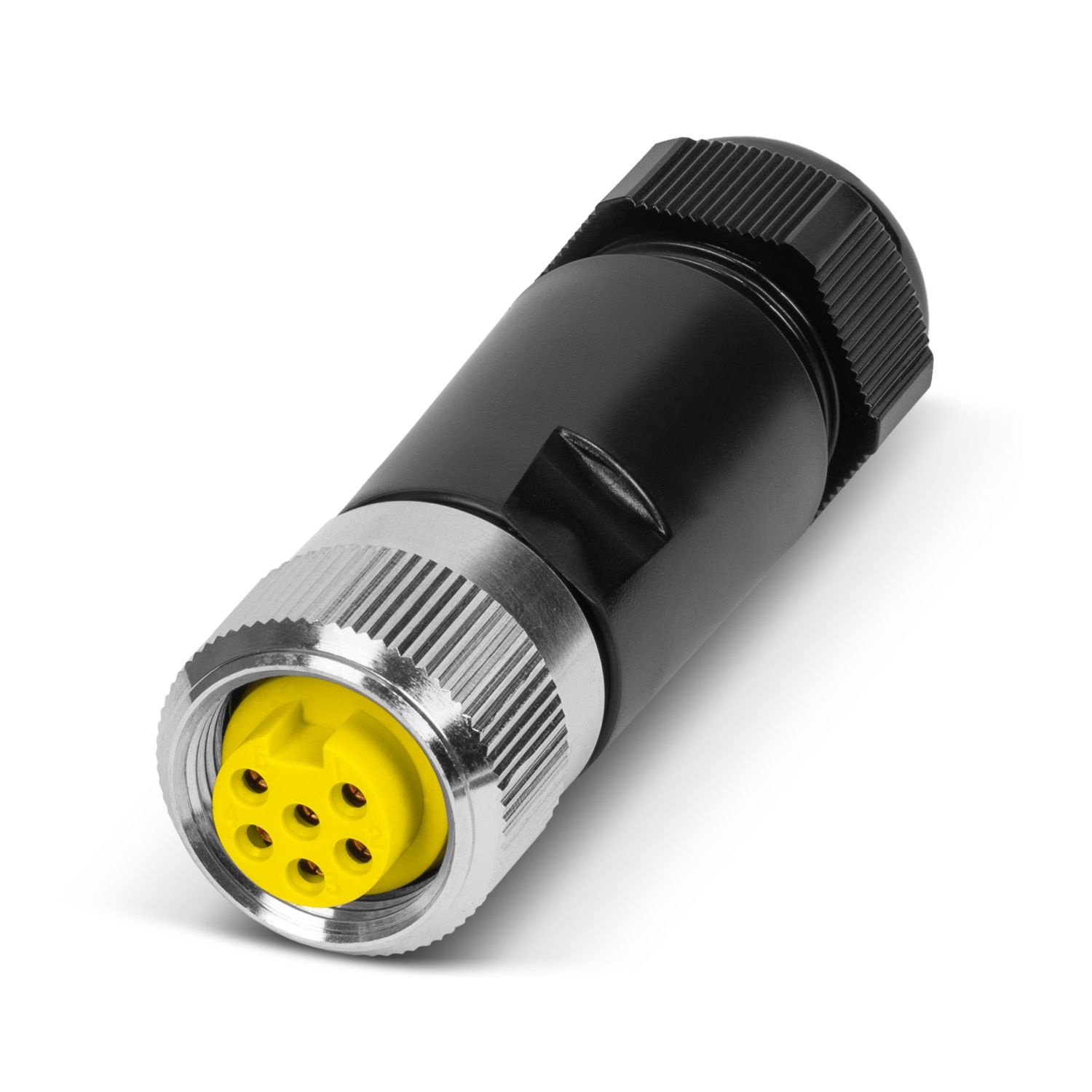

Connector, 6-position, Socket straight 7/8"-16UNF, coding: A, Screw connection, knurl material: Brass, nickel-plated, external cable diameter 8 mm ... 17 mm

Product details

Expand all Collapse all

Technical data

Notes

Assembly note	with packaging

Product properties

Number of positions	6
Shielded	no

Dimensions

External dimensions
Outside diameter	8 mm ... 17 mm (M25 thread on rear cable gland)

Material specifications

Seal material	NBR
Material of grip body	Black polyamide
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PVC
Material for screw connection	Brass, nickel-plated

Connection data

Conductor connection
Connection method	Screw connection
Connection cross section AWG	22 ... 16
Tightening torque	7/8" connector

Electrical properties

Nominal voltage U_N	600 V (UL rating)
Nominal voltage U_N		50 V AC (IEC rating)
Nominal current I_N	8 A (8 A (16 AWG), 5.5 A (18 AWG), 4 A (20 - 22 AWG))

Connector

Connection 1

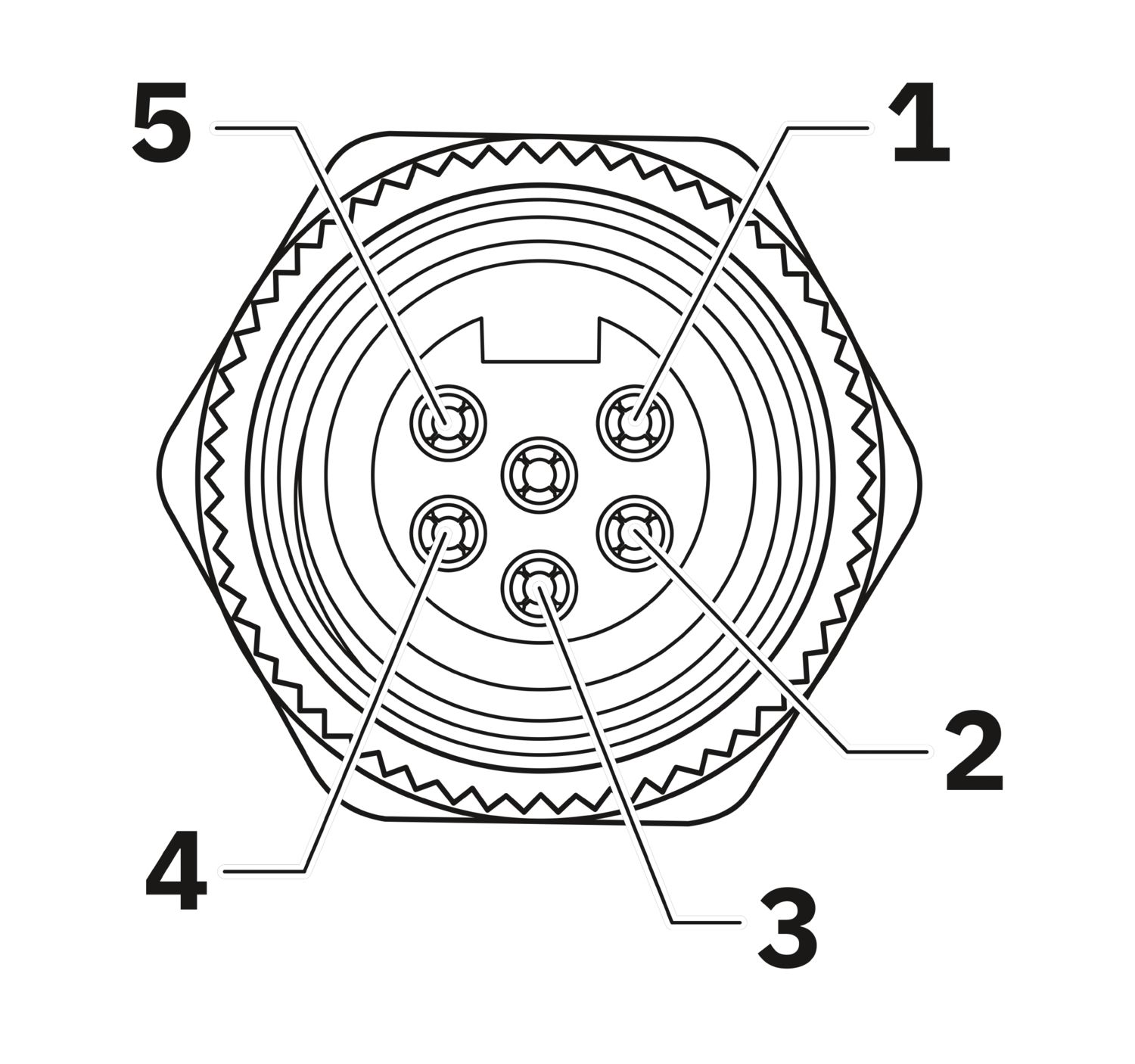

Head design	Socket
Head cable outlet	straight
Head thread type	7/8"-16UNF
Coding	A

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67

Standards and regulations

Standards/specifications	UL 2238

Commercial data

Item number	1559248
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BF37
Product key	AF2ICB
GTIN	4067923039827
Weight per piece (including packing)	22.22 g
Weight per piece (excluding packing)	22.22 g
Country of origin	US

Classifications

ECLASS

ECLASS-13.0	27440116
ECLASS-15.0	27440116

ETIM

ETIM 9.0

EC002635

Approvals



cULus Listed

Approval ID: E221474

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
