SACB-PT-H180-10/3-M8 HD
-
Connector hood
1197658
Connector hood, application: Standard, connection method: M8 socket Metal, number of slots: 10, number of positions: 3, slot assignment: single, status display: no, Universal; master cable connection: plug-in push-in spring connection 180°, shielding: no
This product needs further products for operation.
Mandatory accessories
Product details
| Assembly note | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Product type | Connector hood |
| Application | Standard |
| Number of positions | 3 |
| Number of slots | 10 |
| Max. operating voltage Umax | 30 V DC |
| Nominal voltage UN | 24 V DC |
| Rated current, total | 8 A |
| Max. current carrying capacity per path | 2 A |
| Current carrying capacity per slot | 2 A |
| Conductor connection | |
| Sensor/actuator connection system | M8 socket |
| Connection method | plug-in push-in spring connection |
| Conductor cross section Flexible signal line | 0.2 mm² ... 1.5 mm² |
| Conductor cross section Flexible power supply | 0.2 mm² ... 1.5 mm² |
| Connection cross section AWG Flexible signal line | 24 ... 16 |
| Connection cross section AWG Flexible power supply | 24 ... 16 |
| Stripping length Signal line | 10 mm |
| Stripping length of the sheath | 70 mm (Master cable) |
| Tightening torque, cover screw | 1 Nm |

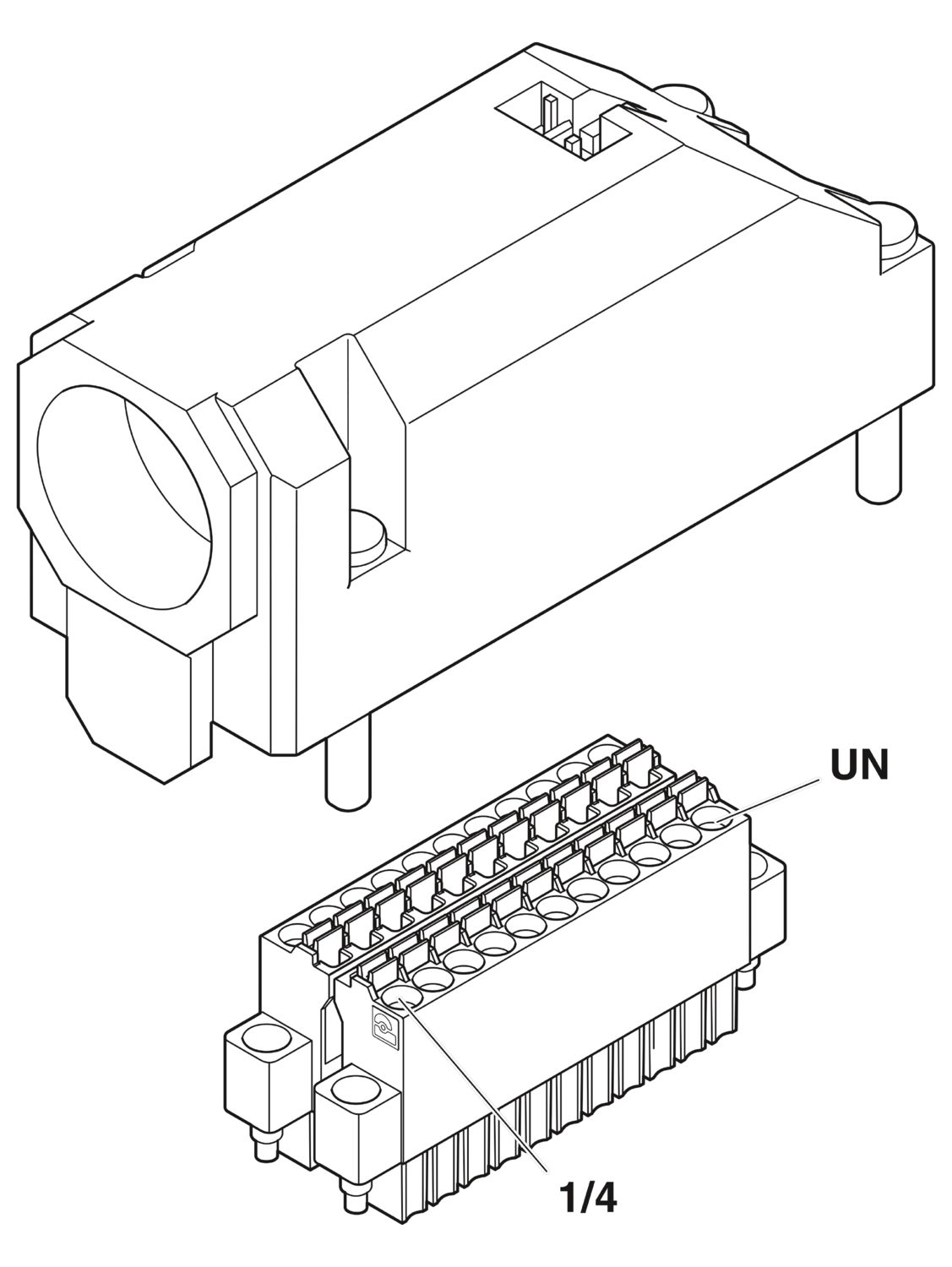

| Pin assignment | |
| Slot/position = Wire color or connection | 1 / 4 (A) = 1 / 4 |
| 2 / 4 (A) = 2 / 4 | |
| 3 / 4 (A) = 3 / 4 | |
| 4 / 4 (A) = 4 / 4 | |
| 5 / 4 (A) = 5 / 4 | |
| 6 / 4 (A) = 6 / 4 | |
| 7 / 4 (A) = 7 / 4 | |
| 8 / 4 (A) = 8 / 4 | |
| 9 / 4 (A) = 9 / 4 | |
| 10 / 4 (A) = 10 / 4 | |
| 1-10 / 1 (+24 V) = UN | |
| 1-10 / 3 (0 V) = 0 V | |
| Status display present | no |
| Dimensional drawing |
|
| Wrench size, union nut | 24 mm |
| Wrench size, counter nut | 24 mm |
| Material Housing | PBT |
| Material Cable gland | PA 6 (Cable gland) |
| Seal material | CR/NBR |
| Material of contact, master cable side | CU alloy |
| Material of the contact carrier on the master cable side | PA |
| Material of contact surface, master cable side | tin-plated |
| External cable diameter | 6 mm ... 12 mm |
| Connection method | plug-in push-in spring connection |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -25 °C ... 80 °C |
Your advantages
Flexible, distributed bundling of signals in one master cable
