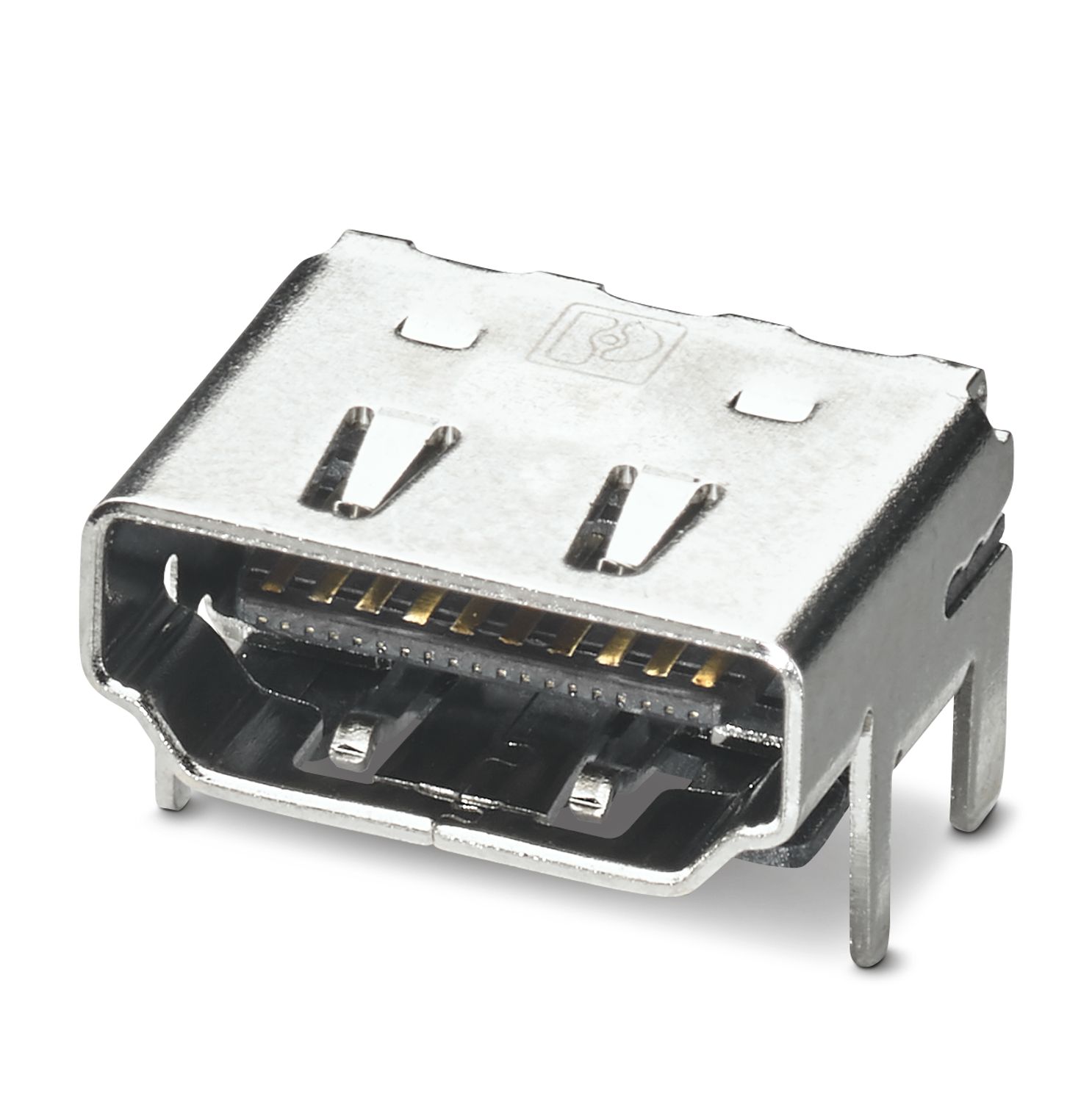

CUC-HDMI-J1ST-AH/HAF-SMD
-
HDMI PCB connectors
1332071
HDMI PCB connectors, design: HDMI A, degree of protection: IP20, number of positions: 19, 14 Gbps, material: Plastic, connection method: Solder connection, cable outlet: straight
Product details
| Product type | Data connector (device side) |
| Type | HDMI |
| Number of positions | 19 |
| Type of packaging | Tape and Reel |
| [W] tape width | 32.00 mm |
| [A] coil diameter | 330.00 mm |
| Number of slots | 1 |
| Type | Socket |
| Shielded | yes |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | I |
| Degree of pollution | 2 |
| Rated voltage (III/2) | 40 V |
| Rated surge voltage (III/2) | 1500 V |
| Rated current | 0.5 A (Contacts) |
| Insulation resistance | 100 MΩ |
| Test voltage | 300 V AC |
| Contact resistance | 20 mΩ |
| Transmission medium | Copper |
| Transmission speed | 14,4 GBit/s |
| Connection technology | |
| Connection method | Solder connection |
| Width | 15 mm |
| Height | 6.18 mm |
| Length | 12.16 mm |
| Color of the housing part | black |
| Material | Selective gold plating |
| Nickel coating 50 µ min | |
| Material Metal surface soldering area (top layer) | Tin coating 100 µ min |
| Flammability rating according to UL 94 | V0 |
| Housing material | Plastic |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Mechanical data | |
| Insertion/withdrawal cycles | 10000 |
| Insertion force per signal contact | 44.00 N |
| Extraction force per signal contact | < 10 N |
| Test specification | |
| Specification | EIA 364-1000 |
| Contact resistance R1 | 30.00 mΩ |
| Test specification | |
| Specification | EIA 364-28 |
| Frequency | 10Hz - 200Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 1.52 mm |
| Acceleration | 15.00 m/s² |
| Test duration | 12.00 min |
| Test specification | |
| Specification | EIA 364-27 |
| Acceleration | 50.00 m/s² |
| Number of shocks per direction | 18.00 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 85 °C |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
| Mounting type | SMD soldering |
| Processing notes | |
| Process | THR/SMD |
| Moisture Sensitive Level | MSL 1 |
| Classification temperature Tc | 260 °C |
| Solder cycles in the reflow | 3 |
| Item number | 1332071 |
| Packing unit | 300 pc |
| Minimum order quantity | 300 pc |
| Sales key | AB14 |
| Product key | ABNEAA |
| GTIN | 4063151628857 |
| Weight per piece (including packing) | 3.38 g |
| Weight per piece (excluding packing) | 3.38 g |
| Customs tariff number | 85366930 |
| Country of origin | CN |
ECLASS
| ECLASS-13.0 | 27460201 |
ETIM
| ETIM 9.0 | EC002637 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
Your advantages
Optimized for SMD reflow soldering processes
Reliable transmission of 4K videos
Can be processed automatically thanks to tape-on-reel packaging
