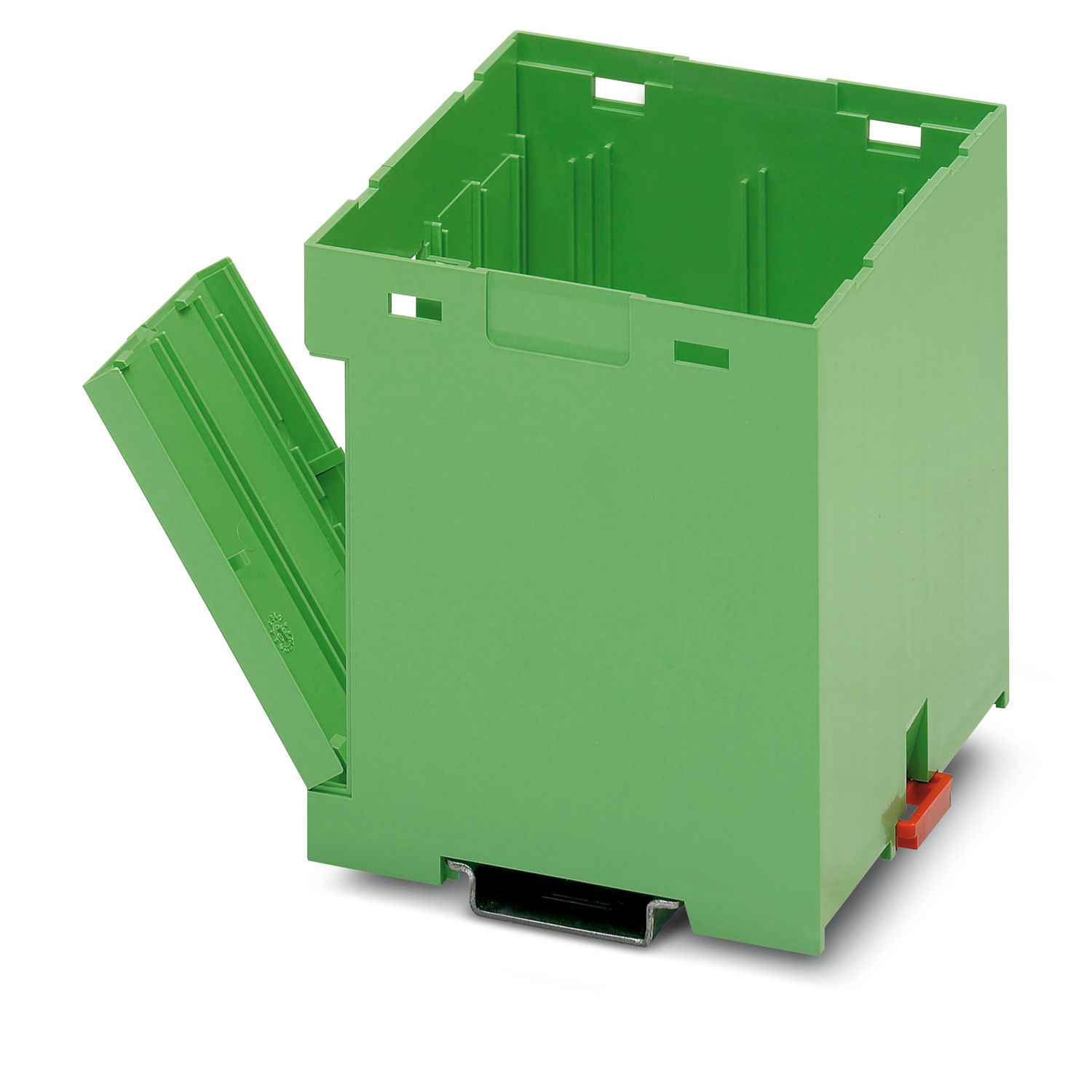

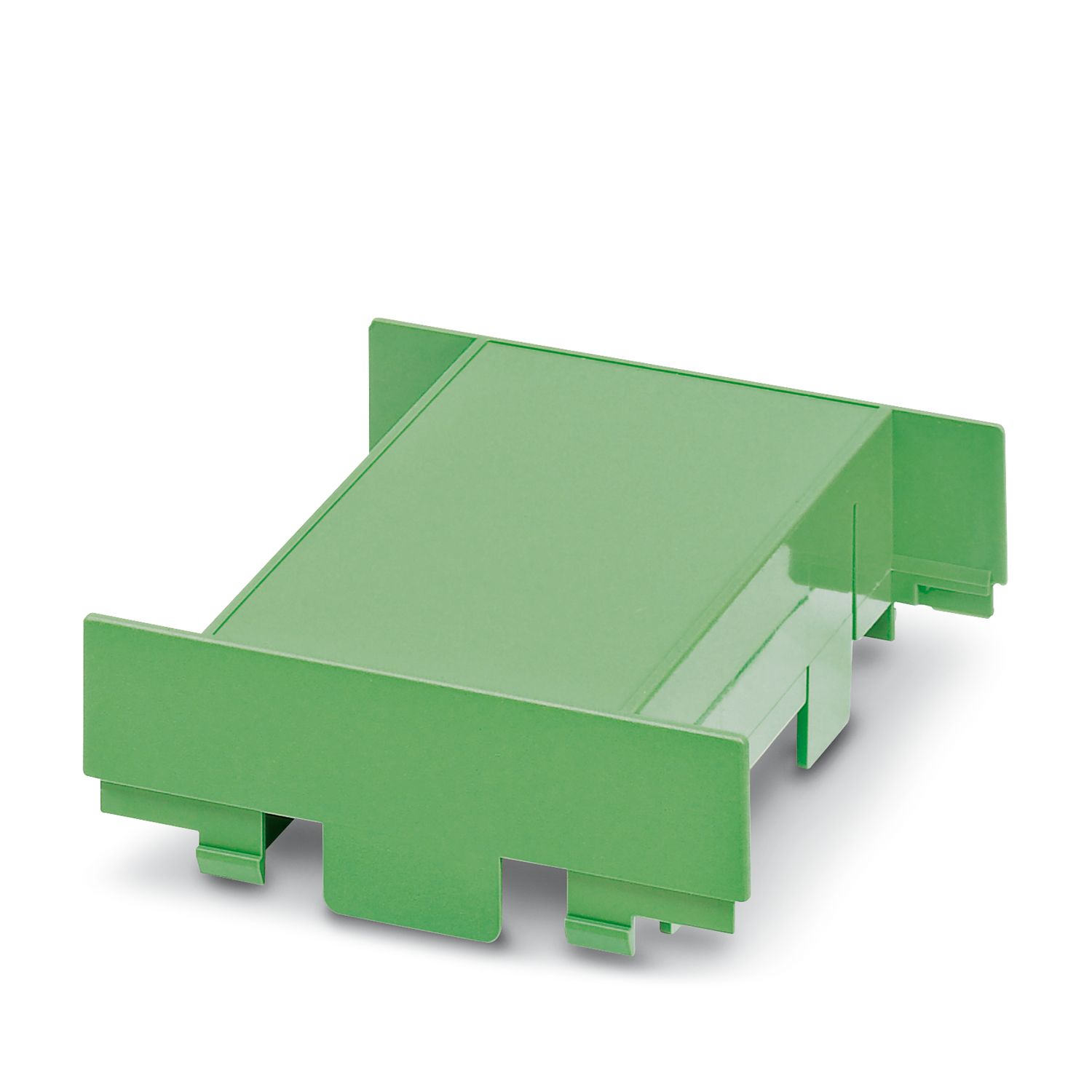

Mounting base housing - EG 90-GP/ABS GN

Component housing, Lower housing part, with snap-on foot and test opening with side cover, without vents, width: 90 mm, height: 75 mm, color: green (6021), cross connection: without bus connector, number of positions cross connector: not relevant

This product needs further products for operation. Mandatory Accessories

Product Details

Type Lower housing parts with test opening with side cover, housing cover necessary to complete the module
Product type Lower part of the housing
Number of positions 34
Type Lower housing part, with snap-on foot and test opening with side cover
Housing type Component housing
Ventilation openings present no
Housing series EG

Dimensional drawing
Width 90 mm
Height 75 mm
PCB design
PCB thickness 1.4 mm ... 1.8 mm

Color green (6021)
Flammability rating according to UL 94 HB
Surface characteristics untreated
Housing material ABS

Ambient conditions
Degree of protection IP20
Max. IP code to attain IP20
Ambient temperature (operation) -40 °C ... 80 °C (depending on power dissipation)
Ambient temperature (storage/transport) -40 °C ... 55 °C
Ambient temperature (assembly) -5 °C ... 80 °C

Thickness of the PCB 1.4 mm ... 1.8 mm

Mounting type DIN rail mounting
Mounting position Vertical (horizontal DIN rail)

Item number 2764315
Packing unit 1 pc
Minimum order quantity 10 pc
Sales Key A13
Product Key ACHCGA
Catalog Page Page 719 (C-1-2013)
GTIN 4017918065942
Weight per Piece (including packing) 93.23 g
Weight per Piece (excluding packing) 68.598 g
Country of origin PL


ECLASS-9.0 27182702
ECLASS-10.0.1 27182702
ECLASS-11.0 27182702


ETIM 8.0 EC001031


UNSPSC 21.0 31261500


UL Recognized

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Your advantages

Tool-free mounting
