Home
Products

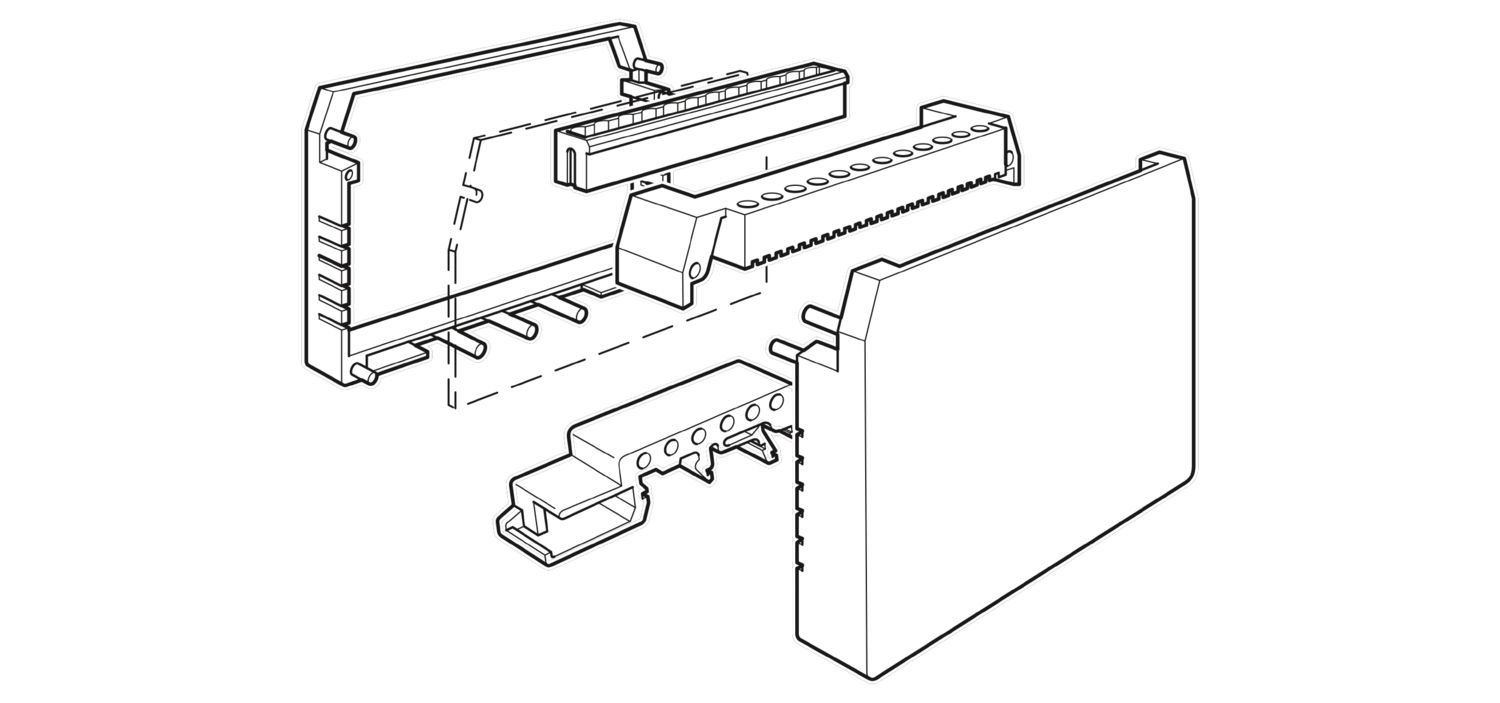

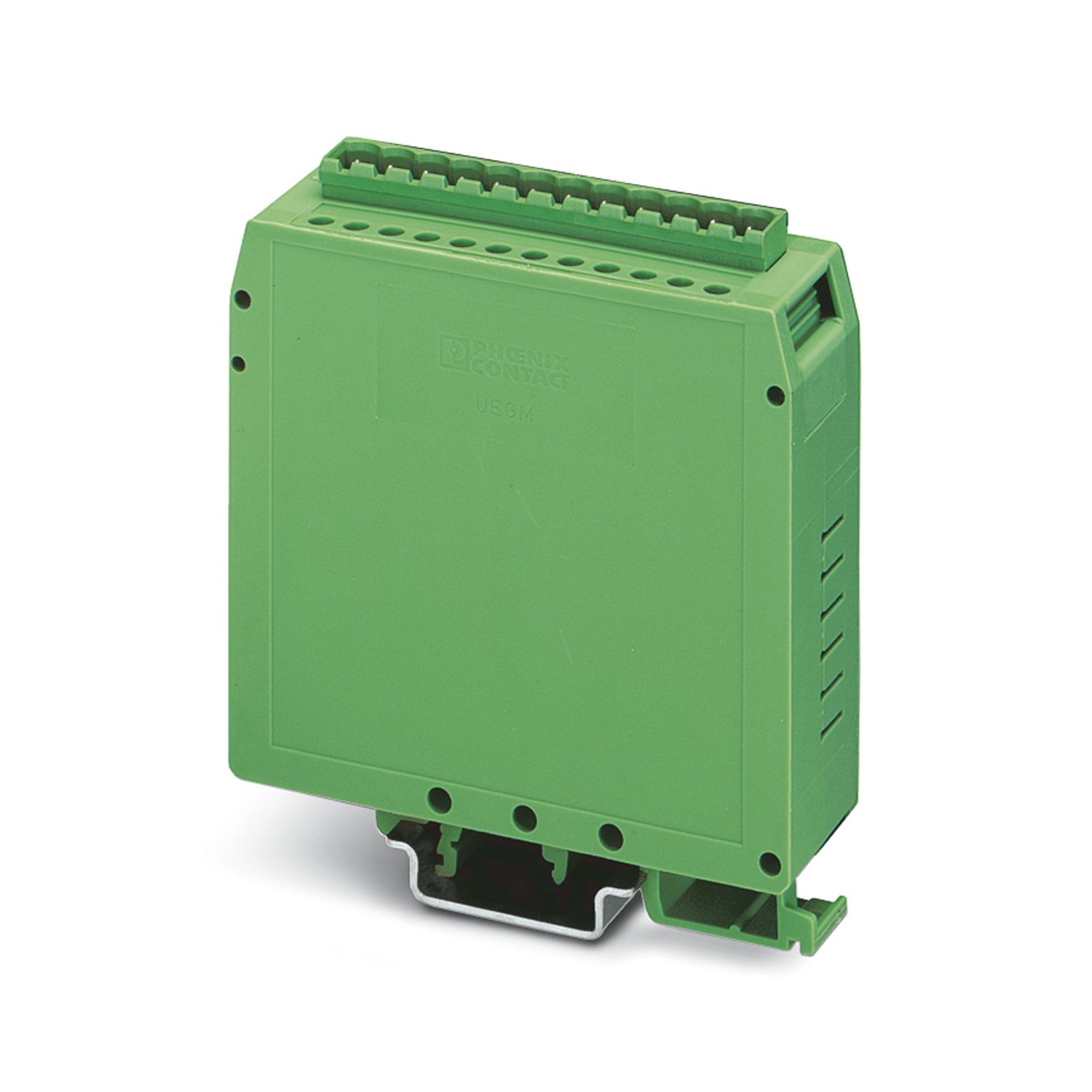

UEGM-MSTB - Electronics housing
UEGM-MSTB
-
Electronics housing
2781453
Electronic housing, for PCB insertion, with 12-pos. Combicon pin strip
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Complete housing
Housing type
Complete housing
Housing series
UEG
Product family
UEGM-MSTB
Type
Connection system integrated, housing closed
Number of positions
12
Type
Complete housing
Dimensions
Width
25 mm
Installed height
90.5 mm
Height NS 35/7,5
90.5 mm
Depth
79 mm
Length
79 mm
Material specifications
Color (Housing)
green (RAL 6021)
Flammability rating according to UL 94
V2
Housing material
PA
Surface characteristics
untreated
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C
Commercial data
Item number
2781453
Packing unit
10 pc
Minimum order quantity
10 pc
Sales key
AC11
Product key
ACHCCC
Catalog page
Page 728 (C-1-2013)
GTIN
4017918068967
Weight per piece (including packing)
52.07 g
Weight per piece (excluding packing)
45.5 g
Customs tariff number
85366990
Country of origin
DE
Classifications
ECLASS
ECLASS-13.0
27190301
ETIM
ETIM 9.0
EC001031
UNSPSC
UNSPSC 21.0
31261500
Approvals
UL Recognized
Approval ID: E240868
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories

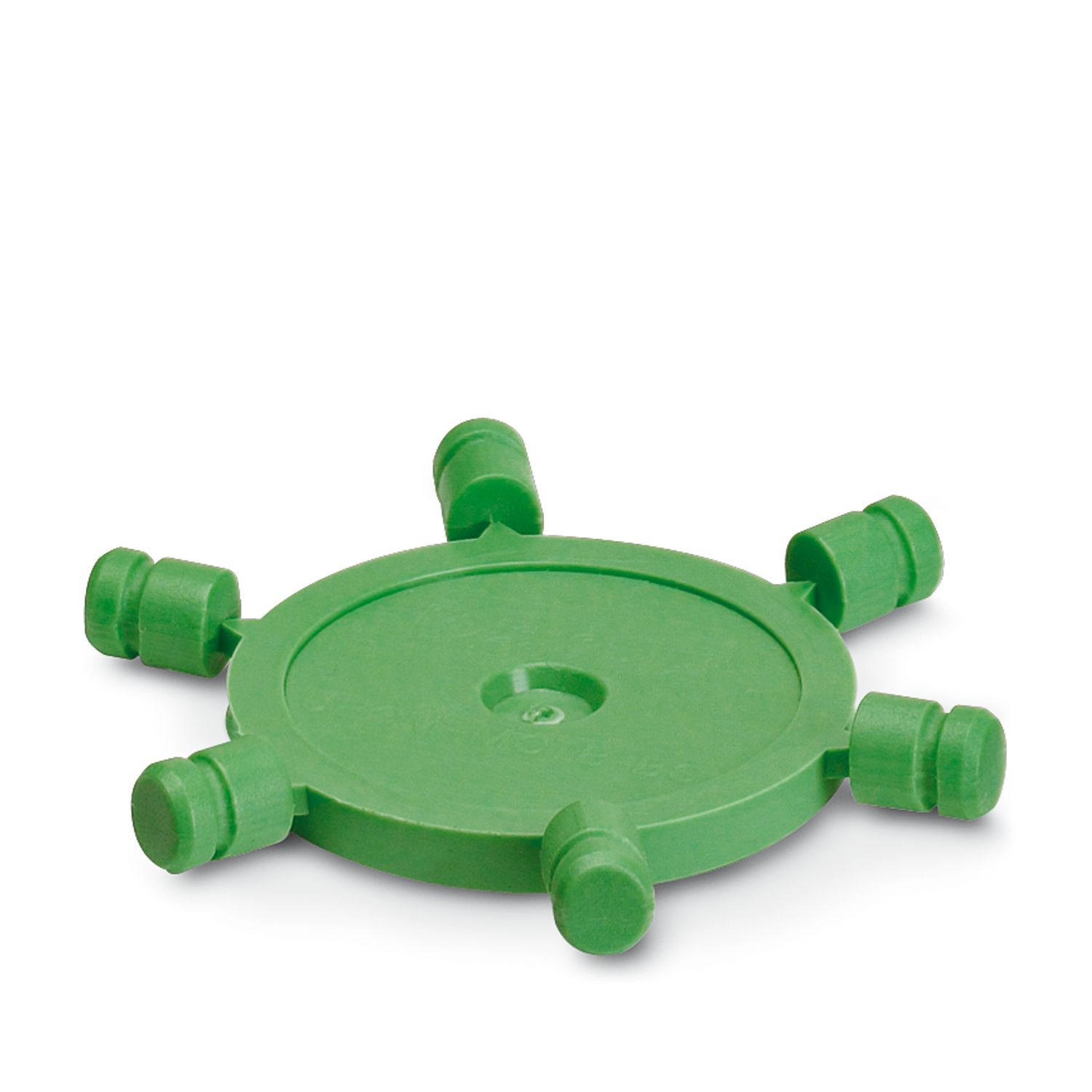

UEGM-MSTB-BS
-
Filler plug
2781466
MSTBA 2,5/12-G-5,08
-
PCB header
1757349
