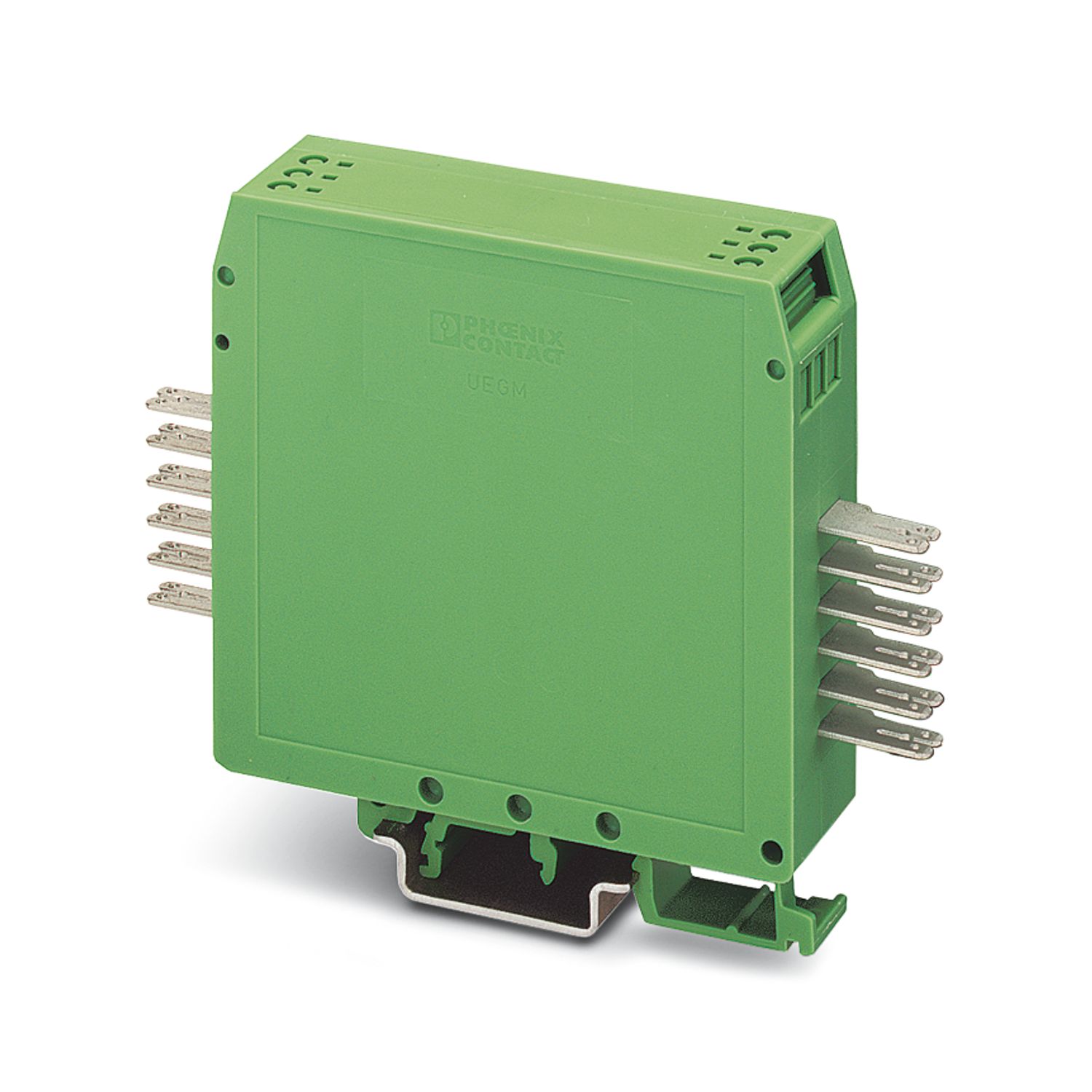

UEGM 25-FS/FS
-
Electronics housing
2792086
Electronic housing, for PCB insertion, fully equipped with 3 screw or 6 tab connections per side
Product details
| Product type | Complete housing |
| Housing type | Component housing |
| Housing series | UEG |
| Product family | UEGM |
| Type | Connection system integrated, housing closed |
| Number of positions | 12 |
| Type | Complete housing equipped with 6 spade connections per side |
| Nominal voltage UN | 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) |
| Nominal current IN | 10 A (6.3 mm slip-on connection) |
| 8 A (2.8 mm slip-on connection) |

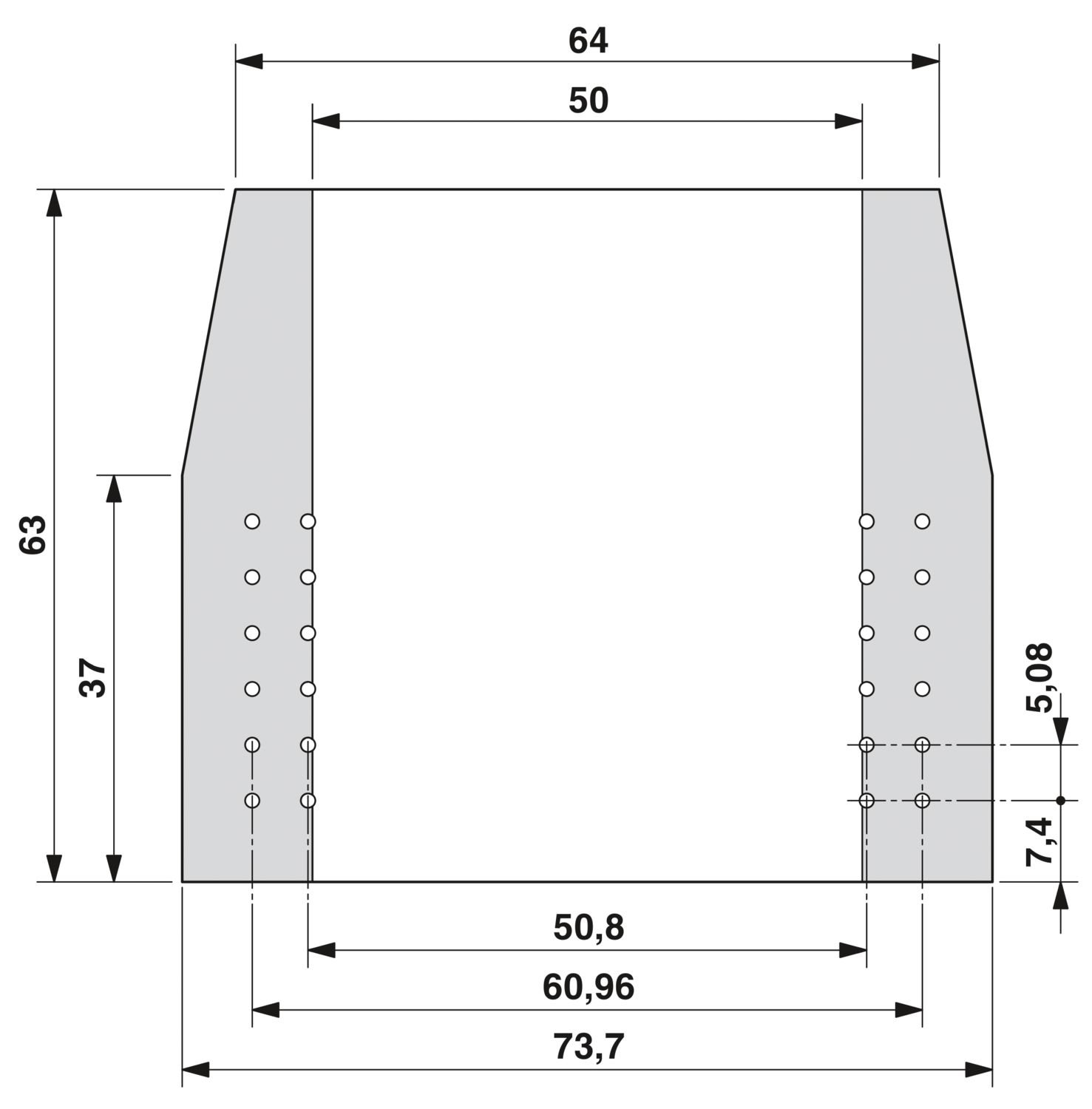

| Dimensional drawing |
|
| Width | 25 mm |
| Installed height | 85.5 mm |
| Height NS 35/7,5 | 85.5 mm |
| Depth | 101 mm |
| Length | 101 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing material | PA |
| Surface characteristics | untreated |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C |
| Mounting type | DIN rail mounting |
