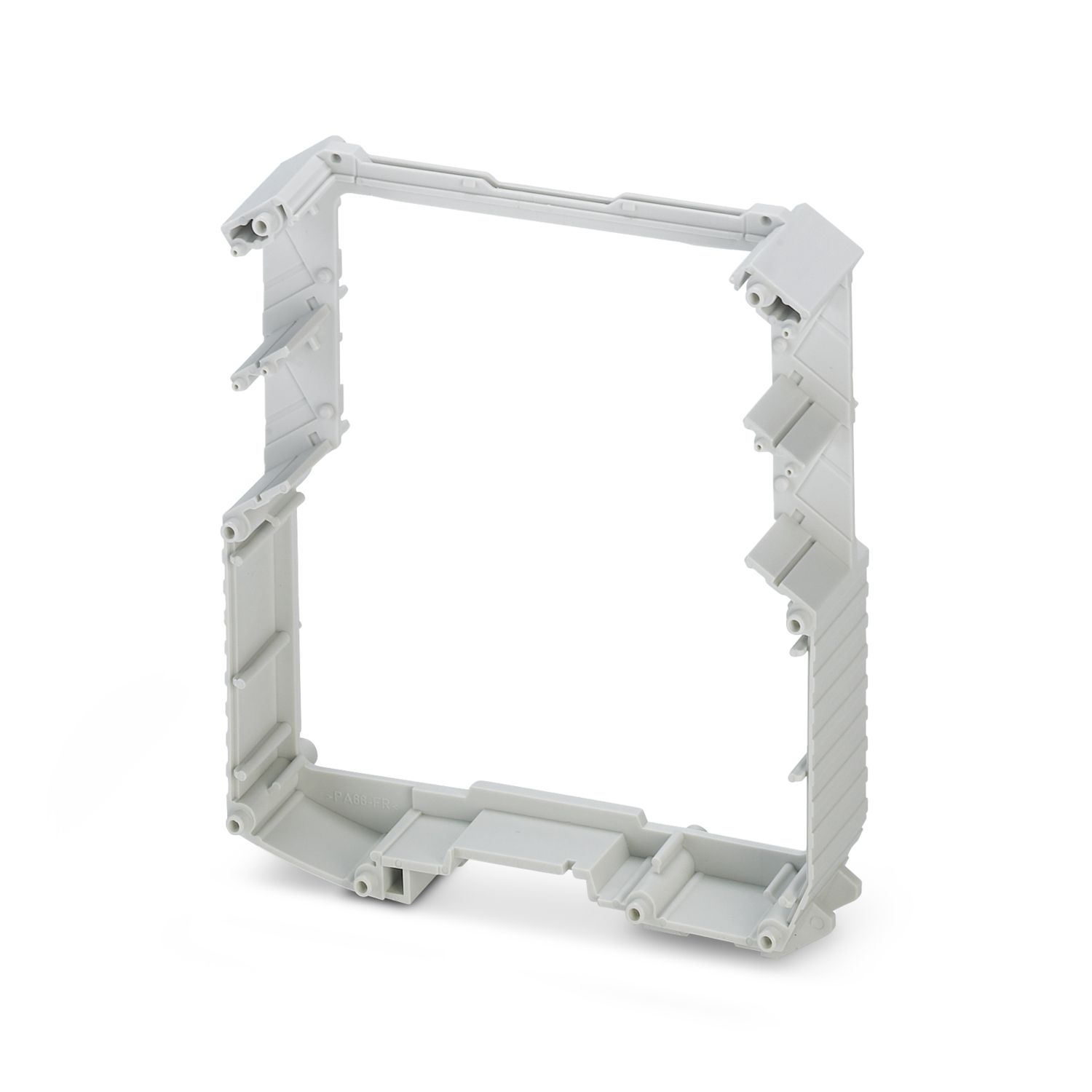

ME MAX 45 MT G 2-2 KMGY
-
Intermediate element
2200043
DIN rail housing, Intermediate element, tall design, without vents, width: 22.6 mm, height: 99 mm, depth: 112.85 mm, color: light gray (similar RAL 7035)
Product details
| Assembly note | Please observe the application note in the download area. |
| Product type | Complete housing center part |
| Housing type | DIN rail housing |
| Housing series | ME-MAX |
| Product family | ME MAX 45.. |
| Number of rows | 2 |
| Type | Intermediate element, tall design |
| Ventilation openings present | no |
| Dimensional drawing |
|
| Width | 22.6 mm |
| Height | 99 mm |
| Depth | 112.85 mm |
| Depth from top edge of DIN rail | 107 mm |
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing material | PA |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
| Type of PCB mount | Latching |
| Mounting type | DIN rail mounting |
Your advantages
Easy installation
Variety of connection technology
Can be mounted on the DIN rail
