SACC-E-MINF-5CON-NPT12-U30/1,0 - Flush-type connector

1420960

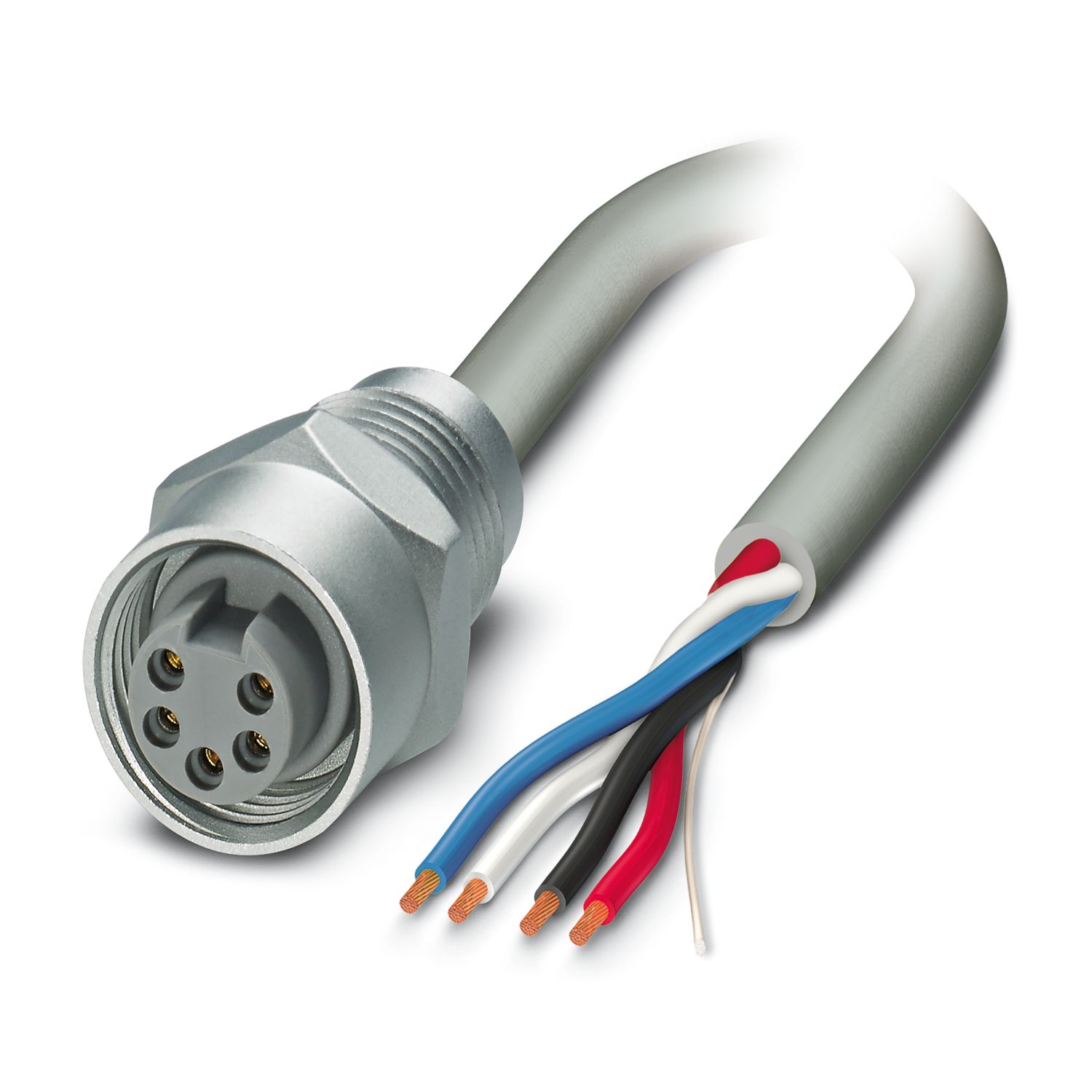

Flush-type connector, 5-position, PVC/PVC, gray, Socket, straight, 7/8"-16UNF, on free cable end, Front mounting, with 1/2 inch-14 NPT mounting thread, Individual wires, cable length: 1 m, 0.25 mm², CANopen®/DeviceNet™, PUR, gray

Mounting type	Front mounting, with 1/2 inch-14 NPT mounting thread

Product type	Circular connectors (device side)

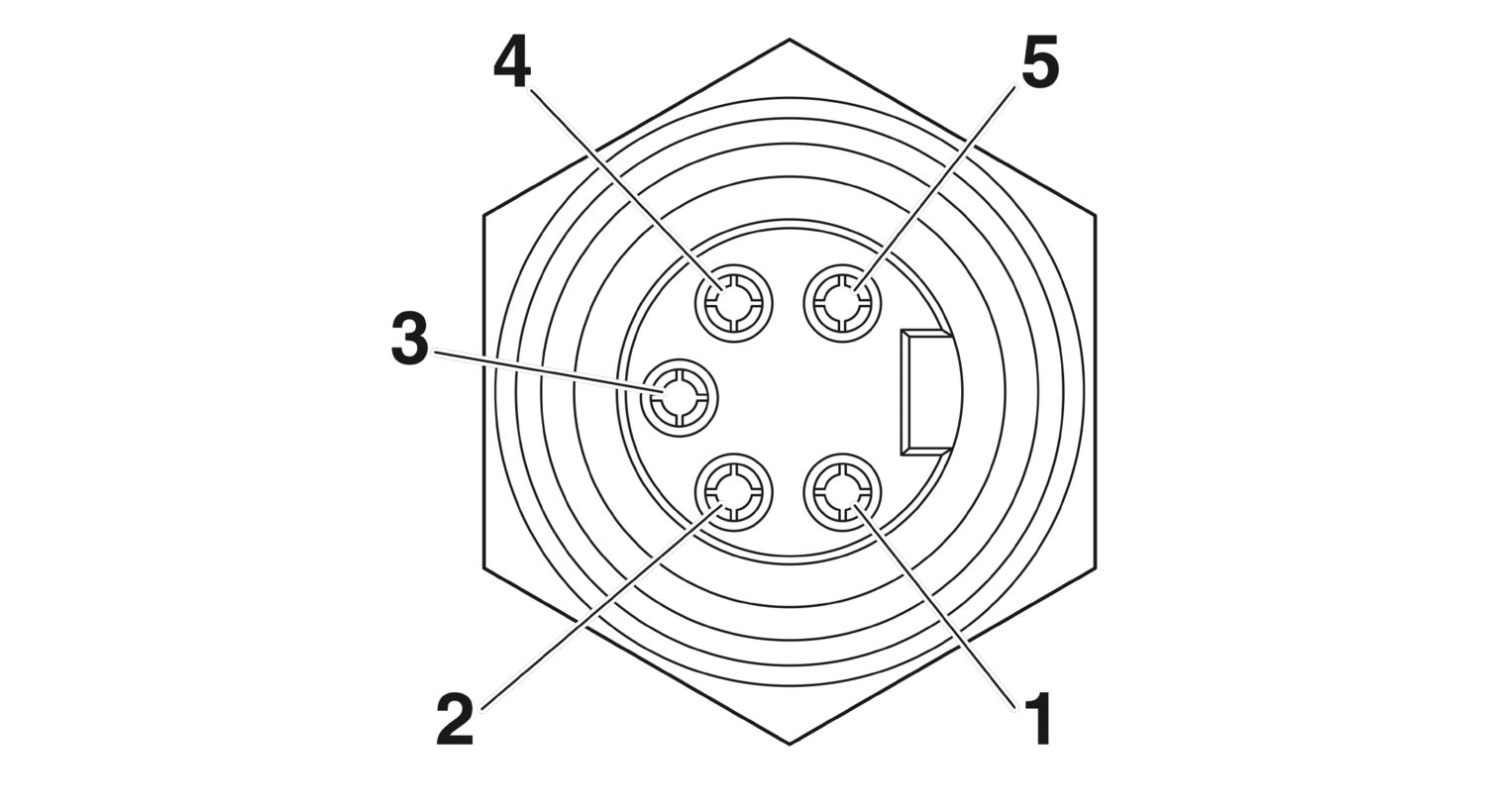

Number of positions	5
No. of cable outlets	1
Shielded	yes
Insulation characteristics
Overvoltage category	UL 2238 Section 38
Degree of pollution	3

Flammability rating according to UL 94	V-0
Housing surface material	Al anodized
Contact material	Copper alloy
Contact surface material	Au
Contact carrier material	PVC
Material for screw connection	Anodized aluminum
Outer sheath, material	PVC

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	300 V AC/DC (UL rating)
	50 V AC/DC (IEC rating)
Nominal current I_N	4 A

Conductor connection
Connection method	Individual wires
Contact connection type	Socket
Conductor cross section	0.25 mm² (2 x AWG 24 data cable)
Tightening torque	10 lb_f-in.
	1.12 Nm

Mechanical data
Insertion/withdrawal cycles	> 500

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	7/8"-16UNF
Connection 2
Head design	free cable end

Cable length	1 m
Cable type	CANopen®/DeviceNet™, PUR, gray
Cable abbreviation	U30
Cable structure	2xAWG24+2xAWG22+1xAWG22
Outer sheath, material	PVC
External sheath, color	gray
Wire diameter incl. insulation	6.6 mm

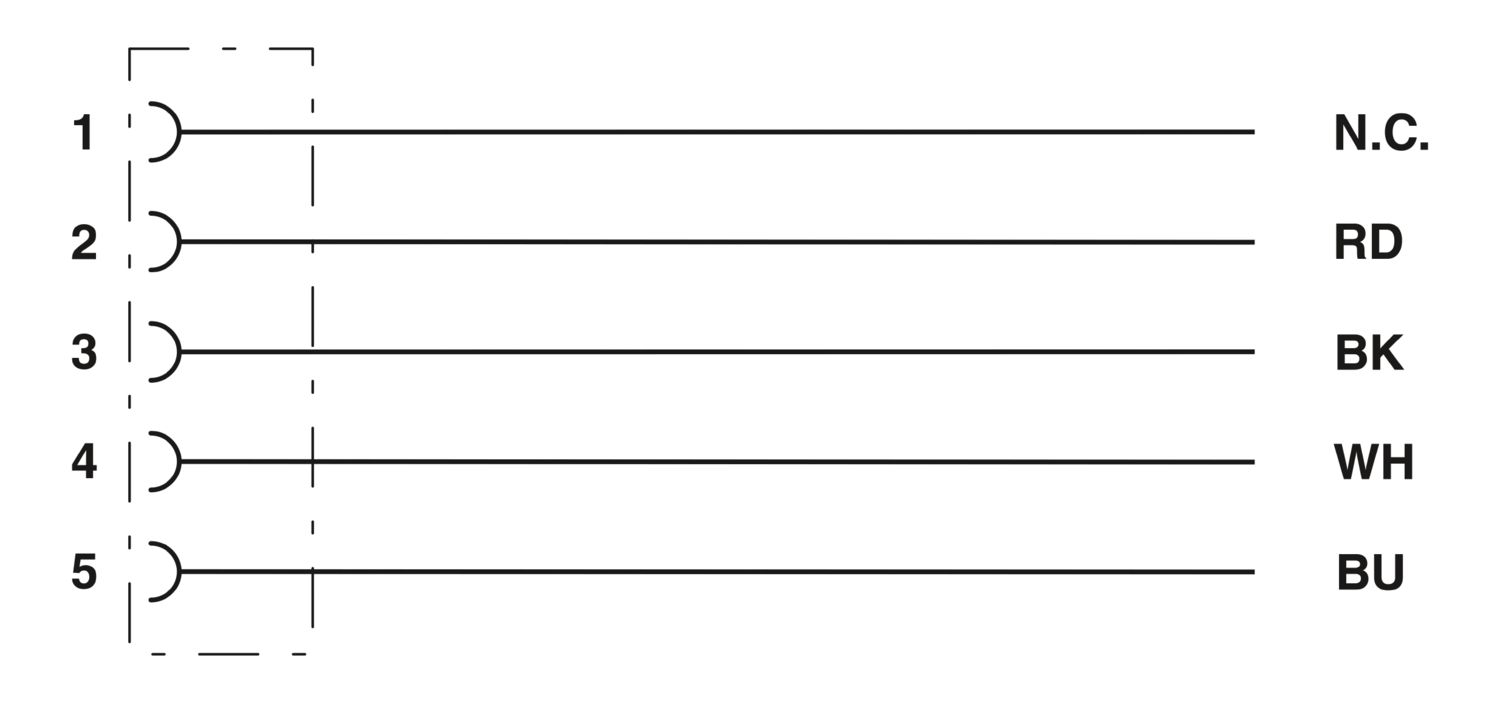

Single wire, color	red-black, blue-white
Cable cross section	0.25 mm² (2 x AWG 24 data cable)
	0.34 mm² (2 x AWG 22 power supply)
	0.34 mm² (1 x AWG 22 drain wire)
Material, inner sheath	PVC
Conductor structure signal line	19 x AWG 36
AWG signal line	24
Conductor structure, voltage supply	19 x AWG 34
AWG power supply	22
Material wire insulation	PVC (Power supply)
	Foamed PE (Data)
Twisted pairs	2 cores to the pair
Type of pair shielding	Plastic-coated aluminum foil, aluminum side outside
Overall twist	2 pairs and one drain wire to the core
Optical shield covering	65 %

Ambient conditions
Degree of protection	IP68
	IP68
Ambient temperature (operation) (male connector/female connector)	-20 °C ... 80 °C (Plug)
Ambient temperature (operation)	-20 °C ... 80 °C (cable, fixed installation)

Standard designation	7/8" connector
Standards/specifications	UL 2238
Note	Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3

Item number	1420960
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	BF14
Product key	AF2ICA
GTIN	4055626341514
Weight per piece (including packing)	22.22 g
Weight per piece (excluding packing)	22.22 g
Customs tariff number	85444290
Country of origin	MX

Compatible products

Accessories

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
