SACC-E-MINF-3CON-NPT12-U50/1,0 - Flush-type connector

1420957

Flush-type connector, 3-position, Socket, straight, 7/8"-16UNF, on free cable end, Front mounting, with 1/2 inch-14 NPT mounting thread, Individual wires, cable length: 1 m, 2.50 mm², PVC litz wire

Product details

Trade restriction
CE note	The products are offered exclusively for export outside the EU and the European Economic Area.

Mounting type	Front mounting, with 1/2 inch-14 NPT mounting thread

Product type	Circular connectors (device side)
Number of positions	3
No. of cable outlets	1
Shielded	no
Insulation characteristics
Degree of pollution	3

Flammability rating according to UL 94	V-0
Housing surface material	Al anodized
Contact material	Copper alloy
Contact surface material	Au
Contact carrier material	PVC
Material for screw connection	Anodized aluminum

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	600 V AC/DC (UL rating)
	50 V AC/DC (IEC rating)
Nominal current I_N	23.5 A (UL 2238)
	7 A (UL 2237)

Conductor connection
Connection method	Individual wires
Contact connection type	Socket
Conductor cross section	2.5 mm²
Tightening torque	10 lb_f-in.
	1.12 Nm

Mechanical data
Insertion/withdrawal cycles	> 500

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	7/8"-16UNF
Connection 2
Head design	free cable end

Cable length	1 m
Cable type	PVC litz wire
Wire diameter incl. insulation	4.5 mm

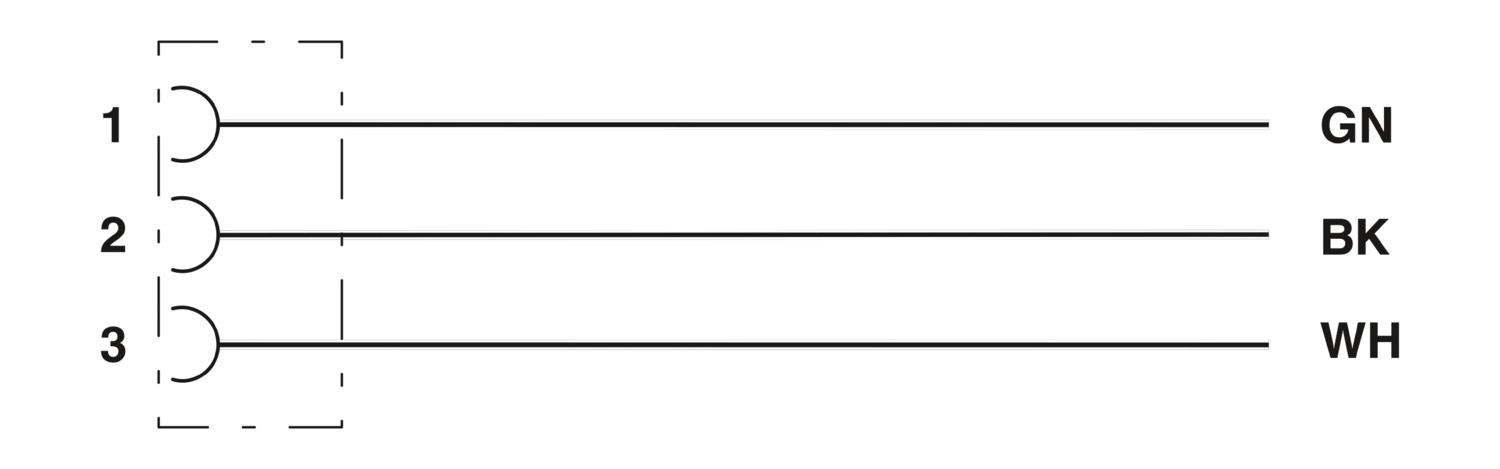

Single wire, color	green 1, black 2, white 3
Cable cross section	2.5 mm²
AWG signal line	14
Material wire insulation	PVC
Thickness, insulation	Core insulation

Ambient conditions
Degree of protection	IP68
	IP68
Ambient temperature (operation)	-20 °C ... 80 °C (Plug)
	-20 °C ... 80 °C (cable, fixed installation)

Standard designation	7/8" connector
Standards/specifications	UL 2237, UL 2238
Note	Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3

Commercial data

Item number	1420957
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	BF14
Product key	AF2ICA
GTIN	4055626403595
Weight per piece (including packing)	22.22 g
Weight per piece (excluding packing)	22.22 g
Customs tariff number	85444290
Country of origin	MX

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
