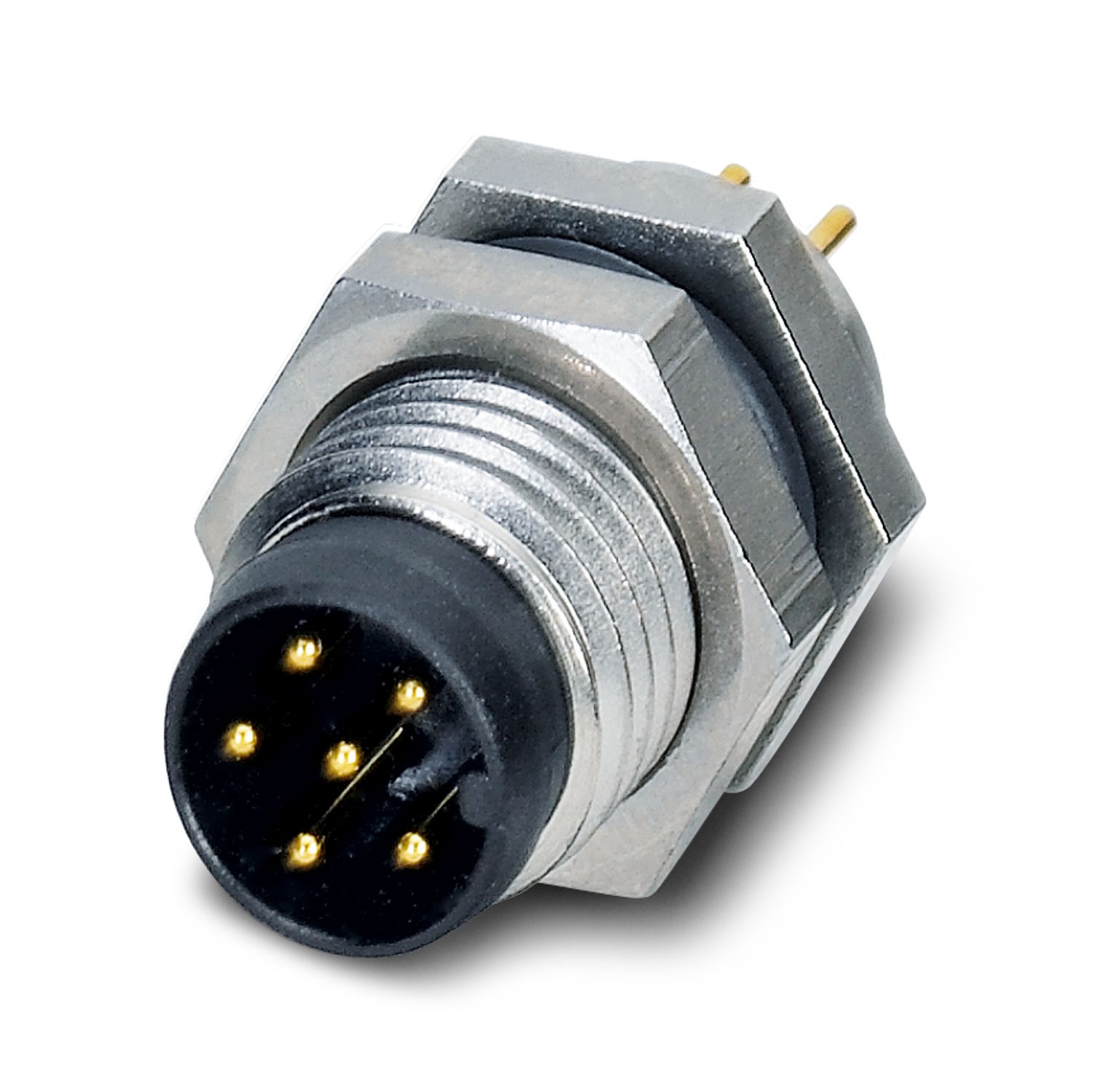

SACC-DSI-M 8MS-6CON-L180 - Device connector rear mounting

1436521

Device connector rear mounting, Universal, 6-position, Pin, straight, M8, coding: A, Rear mounting, M8 x 1, Wave soldering

Product details

Mounting type	Rear mounting M8 x 1 With locking nut
Assembly note	With locking nut

Product type	Circular connectors (device side)
Sensor type	Universal
Number of positions	6
Shielded	no
Coding	A
Thread type	M8
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Flammability rating according to UL 94	HB
Seal material	NBR
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA 6.6
Material for screw connection	Brass, nickel-plated

Rated surge voltage	0.8 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	30 V AC
	30 V DC
Nominal current I_N	2 A

Conductor connection
Connection method	Wave soldering
Contact connection type	Pin
Tightening torque	1 Nm ... 1.5 Nm (Installation-side)

Connection 1
Head design	Pin
Head cable outlet	straight
Head thread type	M8
Coding	A

Signal type/category	Universal

Ambient conditions
Degree of protection	IP67
	IP67
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 85 °C
UL Type Rating	Type 4 (indoor use only)

Standard designation	M8 circular connector
Standards/specifications	according to IEC 61076-2-104

Commercial data

Item number	1436521
Packing unit	20 pc
Minimum order quantity	20 pc
Sales key	AB22
Product key	ABQJAA
Catalog page	Page 226 (C-2-2013)
GTIN	4046356434881
Weight per piece (including packing)	5.625 g
Weight per piece (excluding packing)	5.07 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	30 V	1.5 A	26

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	30 V	1.5 A	26

Environmental product compliance

Your advantages

Easy PCB assembly: one-piece connectors for wave soldering

Standard pin assignments and codings for signal transmission with a uniform design-in design

For high transmission reliability: optional shield connection to the housing and latching on the PCB

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	c5928ff5-9613-4055-b459-52dcac8b26d1
