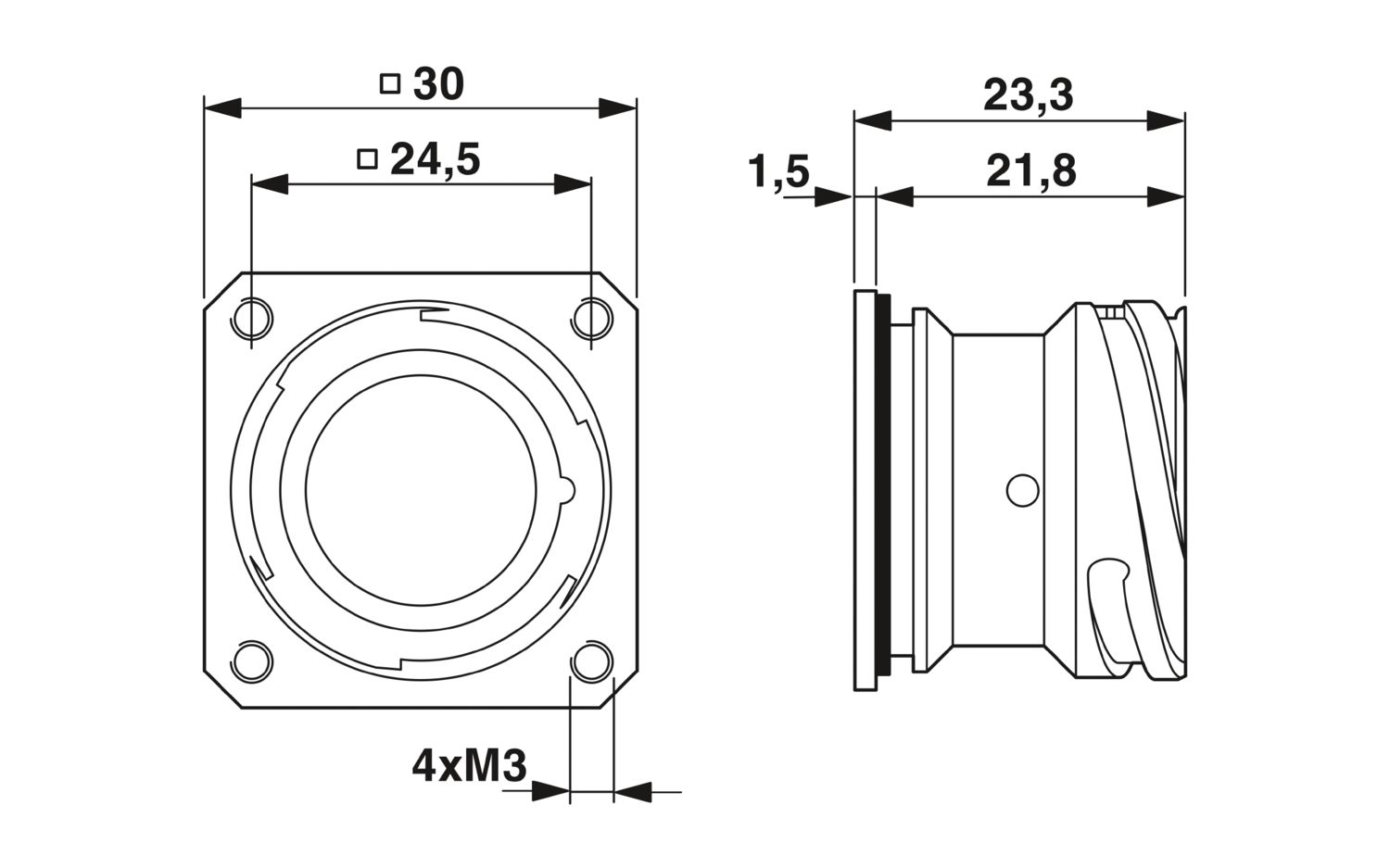

TU-16P1N124100 - Device connector rear mounting

1612591

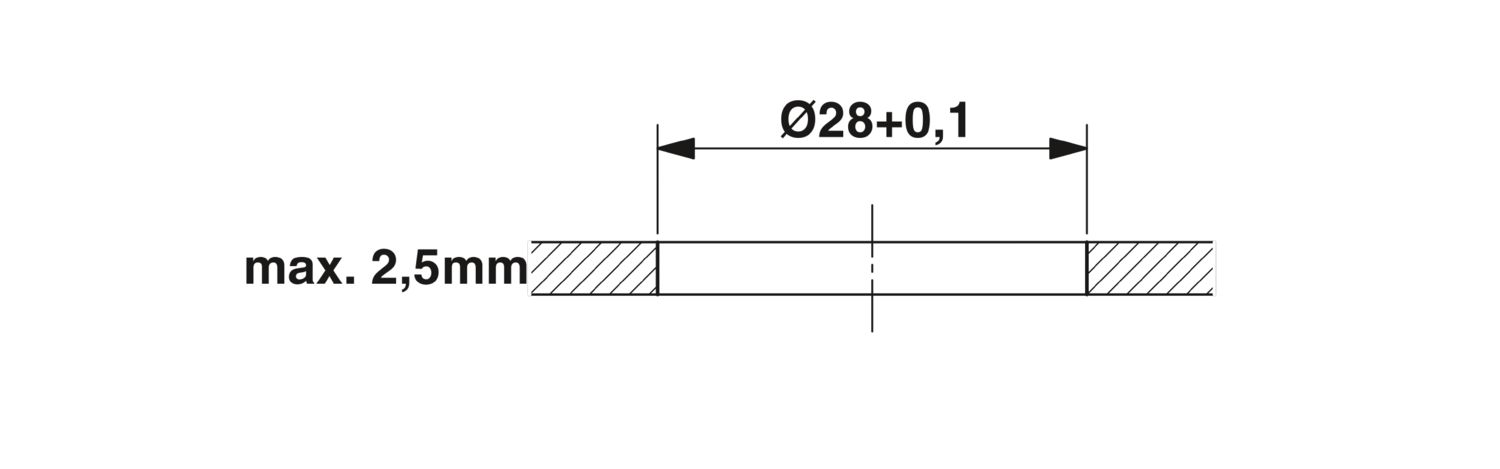

M23, Device connector rear mounting, series: TU, straight, shielded: yes, Bayonet locking, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Pin, Solder cup, Flat gasket, Panel thickness max.: 2.5 mm, coding: N

Product details

Technical data

Product properties

Product type	Circular connector (cable-side)

Connector

Insulating body
Coding	N
Contact material	CuZn
Contact surface material	Ni/Au
Insertion/withdrawal cycles	50
Connection method	Solder cup
Contact switching type	Pin
Application	Signal
Number of positions	16
Direction of rotation	Standard
Connection profile	16
Number Contact (Contact group 1)	16
Diameter Contact (Contact group 1)	1 mm
Litz wire cross-section min. Contact (Contact group 1)	0.08 mm²
Litz wire cross-section max. Contact (Contact group 1)	1 mm²
Rated current Contact (Contact group 1)	8 A (for max. connection cross section)
Rated voltage Contact (Contact group 1)	48 V AC
Rated voltage Contact (Contact group 1)		74 V DC
Rated surge voltage	1.5 kV
Overvoltage category	III
Degree of pollution	3
Housing
Order information:	Order contact inserts separately
Thread type	M23
Type of locking	Bayonet locking
Pg screw connection	none
Housing material	GD-Zn
Degree of protection (plugged in)	IP67

Commercial data

Item number	1612591
Packing unit	20 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	ABRAHR
GTIN	4046356310079
Weight per piece (including packing)	50.24 g
Weight per piece (excluding packing)	50.24 g
Country of origin	DE

Environmental product compliance

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
