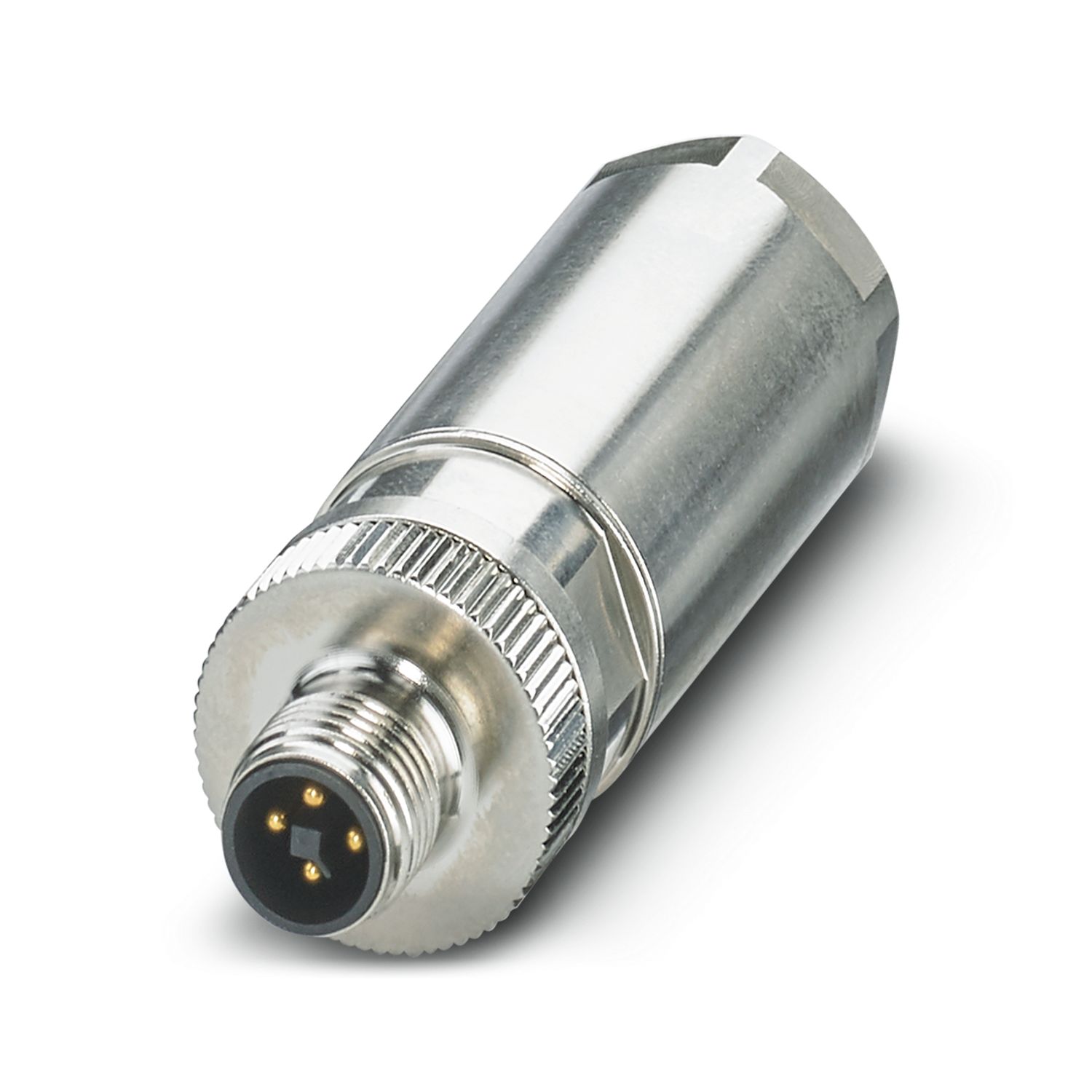

Power connector - SACC-M12MST-4PL-CM SH

Power connector, Power, 4-position, shielded, Plug straight M12, Coding: T, Push-lock spring connection, knurl material: Nickel-plated brass, external cable diameter 6 mm ... 11 mm, Contact 4 leading

Product Details

Assembly instruction: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties.

Product type Circular connector (cable-side)
Number of positions 4
Application Power supply
No. of cable outlets 1
Shielded yes
Coding T power
Cable outlet straight
Insulation characteristics
Overvoltage category III
Degree of pollution 3

Degree of protection IP65
Ambient temperature (operation) -40 °C ... 85 °C (Plug / socket)

Dimensional drawing
Length 70 mm
External dimensions
Outside diameter 6 mm ... 11 mm
Diameter housing 23 mm

Insertion/withdrawal cycles ≥ 100
Header 1
Head design Plug
Head cable outlet straight
Head thread type M12
Coding T-coded

Rated surge voltage 1.5 kV
Nominal voltage UN 63 V DC
Nominal current IN 12 A (when using 1.5 mm² conductors)
12 A (at 40 °C)

Flammability rating according to UL 94 V0
Material of grip body Nickel-plated brass
Contact surface material Au
Cable gland material Nickel-plated brass

Conductor connection
Connection method Push-lock spring connection
Connection cross section 2.5 mm² ... 1.5 mm²
2.5 mm² ... 1.5 mm²
2.5 mm² ... 1.5 mm²
Connection cross section AWG 16 ... 14 (without ferrule)
18 ... 14 (with ferrule)
Tightening torque 0.6 Nm (M12 knurl)
5 Nm (Pressure nut with connector housing)
Pin assignment
Contact | Color (signal designation) | Contact (optional) 1 = BN
2 = WH
3 = BU
4 = BK

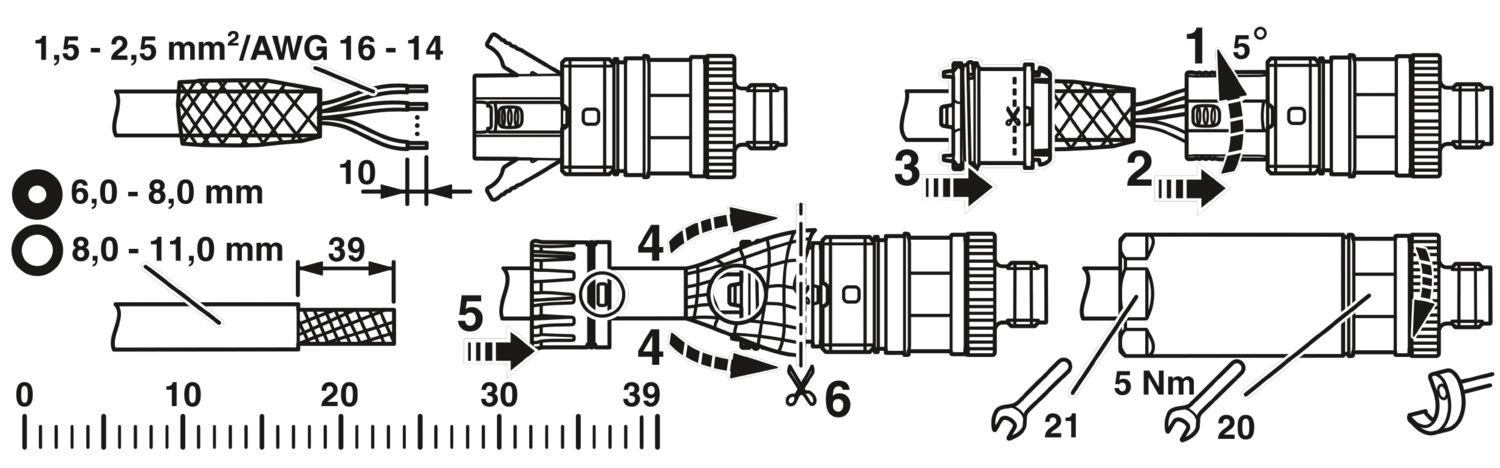

Assembly instructions The wires can be connected both with ferrules and without ferrules

Standards/specifications based on IEC 61076-2-111

Cable structure
Signal type/category Power
Stripping length of the individual wire 10 mm

Item number 1080215
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key B07
Product Key BF2CFP
GTIN 4055626802831
Weight per Piece (including packing) 74.4 g
Weight per Piece (excluding packing) 74.4 g
Customs tariff number 85366990
Country of origin DE


ECLASS-9.0 27440102
ECLASS-10.0.1 27440102
ECLASS-11.0 27440102


ETIM 8.0 EC002635


UNSPSC 21.0 39121400

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Your advantages

Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
Safely shielded: Reliable 360° shield connection even under extreme mechanical strain
