Charging connector holder - EV-GBDC-PARK-R
1623496

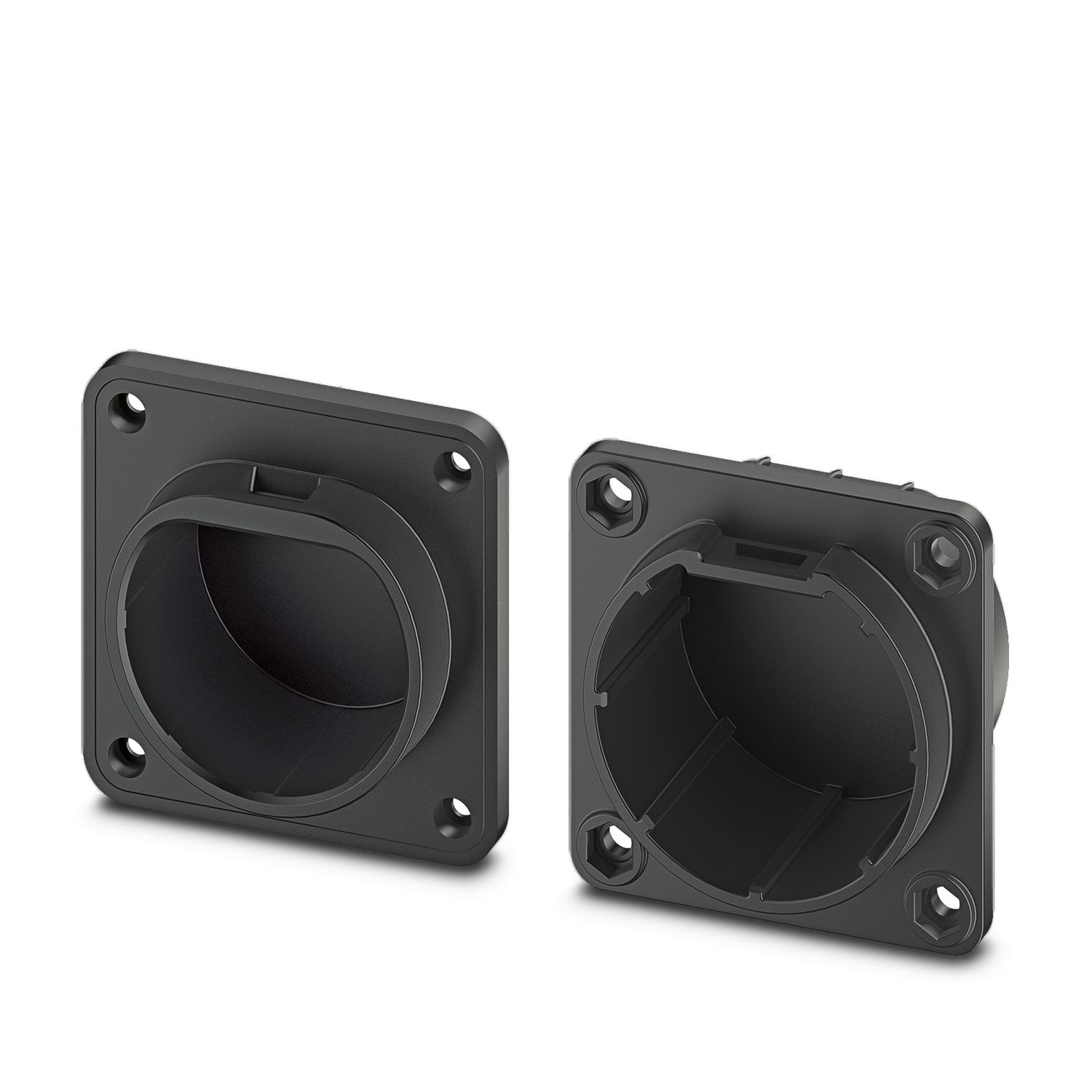

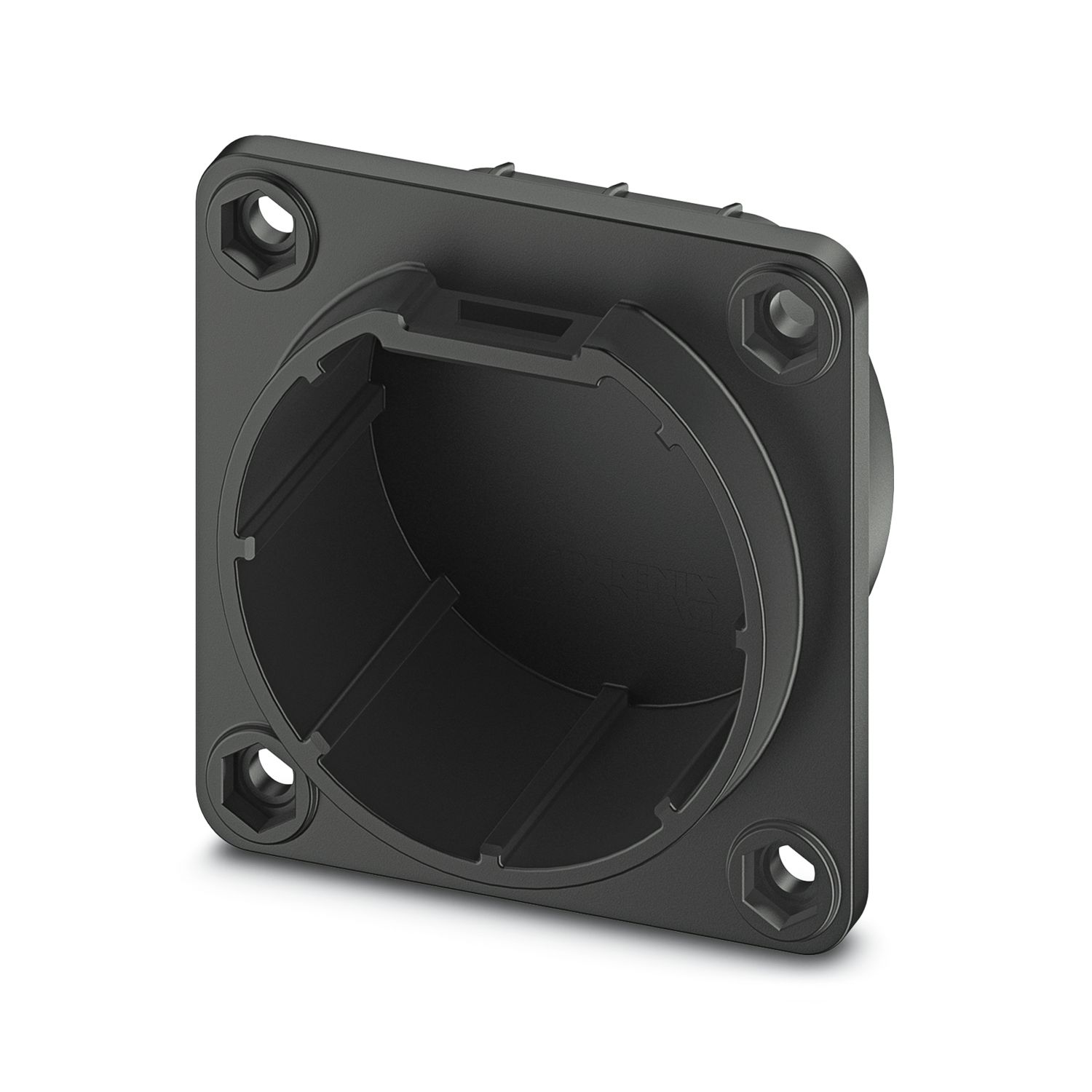

CHARX connect, Charging connector holder, for vehicle charging connectors on charging stations (EVSE), GB/T, GB/T 20234.3, Front mounting


Product Details


Retainer for Vehicle Connector as parking position at charging stations for E-Mobility (EVSE)



Product type Charging connector holder
Application for vehicle charging connectors on charging stations (EVSE)
Charging standard GB/T
Charging mode Mode 4

Type of charging current DC

Dimensional drawing
Width 91 mm
Height 91 mm
Depth 51 mm
Bore dimensions 72 mm x 72 mm

Color Housing black
Flammability rating according to UL 94 V0
Material Plastic

Securing With actuation lever
Removal Lever actuation and removal

Ambient conditions
Degree of protection (when plugged in) IP54
Degree of protection IP54
Ambient temperature (operation) -30 °C ... 50 °C
Ambient temperature (storage/transport) -40 °C ... 80 °C

Standards
Standards/regulations GB/T 20234.3

Mounting type Front mounting 0 to 45 degree frontal inclination possible Front mounting 0 to 45 degree frontal inclination possible
Possible mounting positions Front mounting
Restrictions to mounting position Only 0 to 45 degree frontal inclination possible, see figure
Mounting hole diameter 6.10 mm (Reinforced hexagonal fixing with SW10)

Item number 1623496
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key A17
Product Key XWBAJG
Catalog Page Page 43 (C-7-2019)
GTIN 4055626193861
Weight per Piece (including packing) 108.4 g
Weight per Piece (excluding packing) 105 g
Customs tariff number 39269097
Country of origin CN


ECLASS

ECLASS-9.0 27144792
ECLASS-10.0.1 27144792
ECLASS-11.0 27144792

ETIM

ETIM 8.0 EC002884

UNSPSC

UNSPSC 21.0 39121500

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Your advantages

Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Individual branding, thanks to the use your own logo
