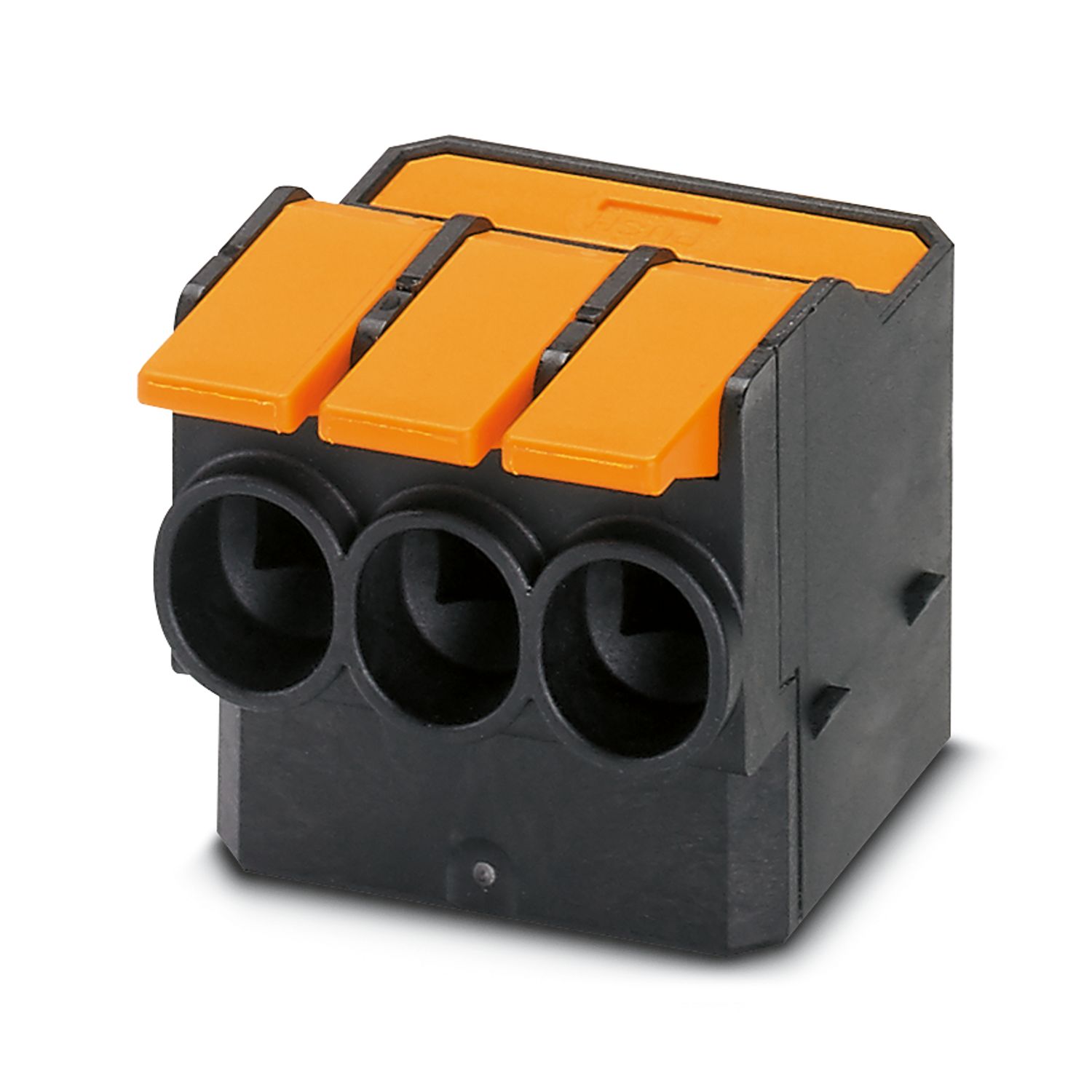

LLH 25/ 3-H-13,0-B
-
Capacitor terminal block
1709113
Capacitor terminal block, nominal cross section: 25 mm2, color: black, nominal current: 90 A, rated voltage (III/2): 1000 V, contact surface: Sn, number of potentials: 3, number of positions: 3, number of connections: 3, product range: LLH 25/..-H, pitch: 13 mm, connection method: Push-lock spring connection, conductor/PCB connection direction: 0 °, type of packaging: packed in cardboard
Product details
| Product type | Capacitor terminal block |
| Product family | LLH 25/..-H |
| Product line | COMBICON Terminals Special |
| Number of positions | 3 |
| Pitch | 13 mm |
| Number of connections | 3 |
| Number of potentials | 3 |
| Properties | |
| Nominal current IN | 90 A |
| Nominal voltage UN | 1000 V |
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| Material data - contact | |
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
| Material data - housing | |
| Color (Housing) | black (9005) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Material data – actuating element | |
| Color (Actuating element) | orange (2003) |
| Insulating material | PA GF |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Conductor connection | |
| Connection method | Push-lock spring connection |
| Conductor cross section flexible, with ferrule without plastic sleeve | 2.5 mm² ... 25 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 2.5 mm² ... 25 mm² |
| Cylindrical gauge a x b / diameter | - / 5.4 mm |
| Stripping length | 18 mm |
| Dimensional drawing |
|
| Pitch | 13 mm |
| Width [w] | 40.2 mm |
| Height [h] | 39.4 mm |
| Length [l] | 48.2 mm |
| Air clearances and creepage distances | | |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| minimum creepage distance (III/3) | 12.5 mm |
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum creepage distance (III/2) | 8 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum creepage distance (II/2) | 5.5 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Your advantages
Designed as direct plug-in block for easy connection to capacitors
Defined contact force ensures that contact remains stable over the long term
