MH-25-MULTI-65-PV-BK
-
Cable feed-through plates
1424582
Cable feed-through plates, no. of conductors: 25, external cable diameter: 3x 3 mm ... 6 mm, 9x 3 mm ... 7 mm, 8x 6 mm ... 9 mm, 4x 6 mm ... 12 mm, 1x 10 mm ... 20 mm, material: PP (Core), material: TPE-SEBS (external material), color: black, length: 154 mm, width: 56 mm, height: 20 mm
Product details
| General | incl. mounting screws |
| Product type | Cable feed-through |
| No. of conductors | 25 |
| External cable diameter | 3x 3 mm ... 6 mm |
| Tightening torque | 1.8 Nm |

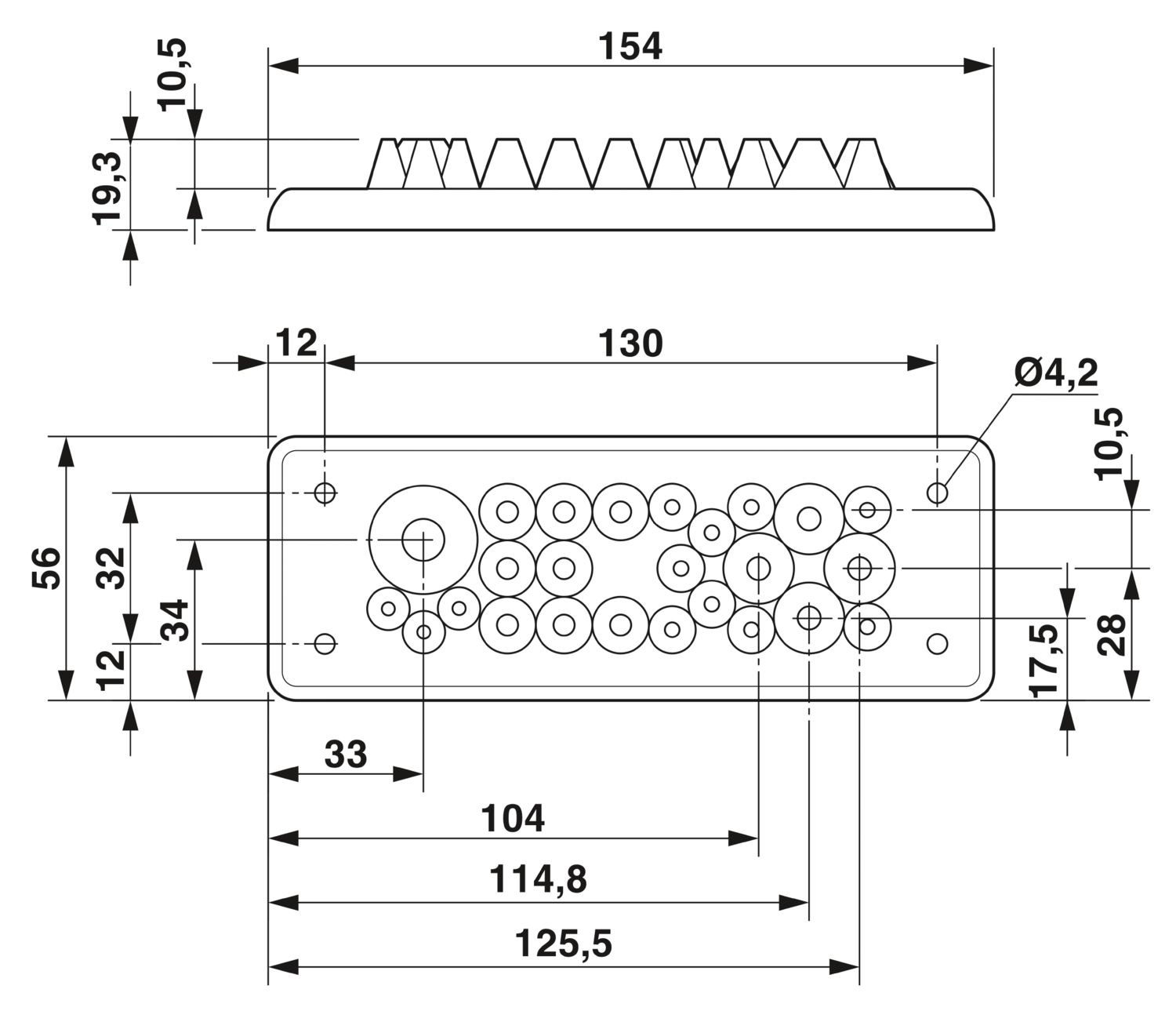

| Dimensional drawing |
|
| Width | 56 mm |
| Height | 20 mm |
| Length | 154 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4 mm |
| Color | black (RAL 9005) |
| Material interior | PP (Core) |
| Material exterior | TPE-SEBS (external material) |
| Flammability rating according to UL 94 | V0 |
| External cable diameter | 3x 3 mm ... 6 mm |
| 9x 3 mm ... 7 mm | |
| 8x 6 mm ... 9 mm | |
| 4x 6 mm ... 12 mm | |
| 1x 10 mm ... 20 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 90 °C |
| Assembly note | M4 mounting screw, torque: 1.8 Nm, SW5 Allen key |
| The mounting screws included should be used for assembly. Assembly steps: 1) Fix Multigates with the mounting screws provided (observe torque) 2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone 3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20 mm (to improve strain relief). |
Your advantages
The panel cutouts of size B24 heavy-duty connectors can be used.
