SACC-AHDP06-9PFS-C-IV
-
Cable connector
1521608
Product details
| General | AHDP06-24-91S-BS1-K16M |
| General | Connector kit includes connector with cable gland for 14-18 mm cable diameter, size 8 (16 mm²) contacts (2 pieces), size 12 (12-14 AWG) contacts (2 pieces), size 16 (16-20 AWG) contacts (4 pieces), size 16 contact pre-assembled and bridged (1 piece) |
| Trade restriction | |
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |

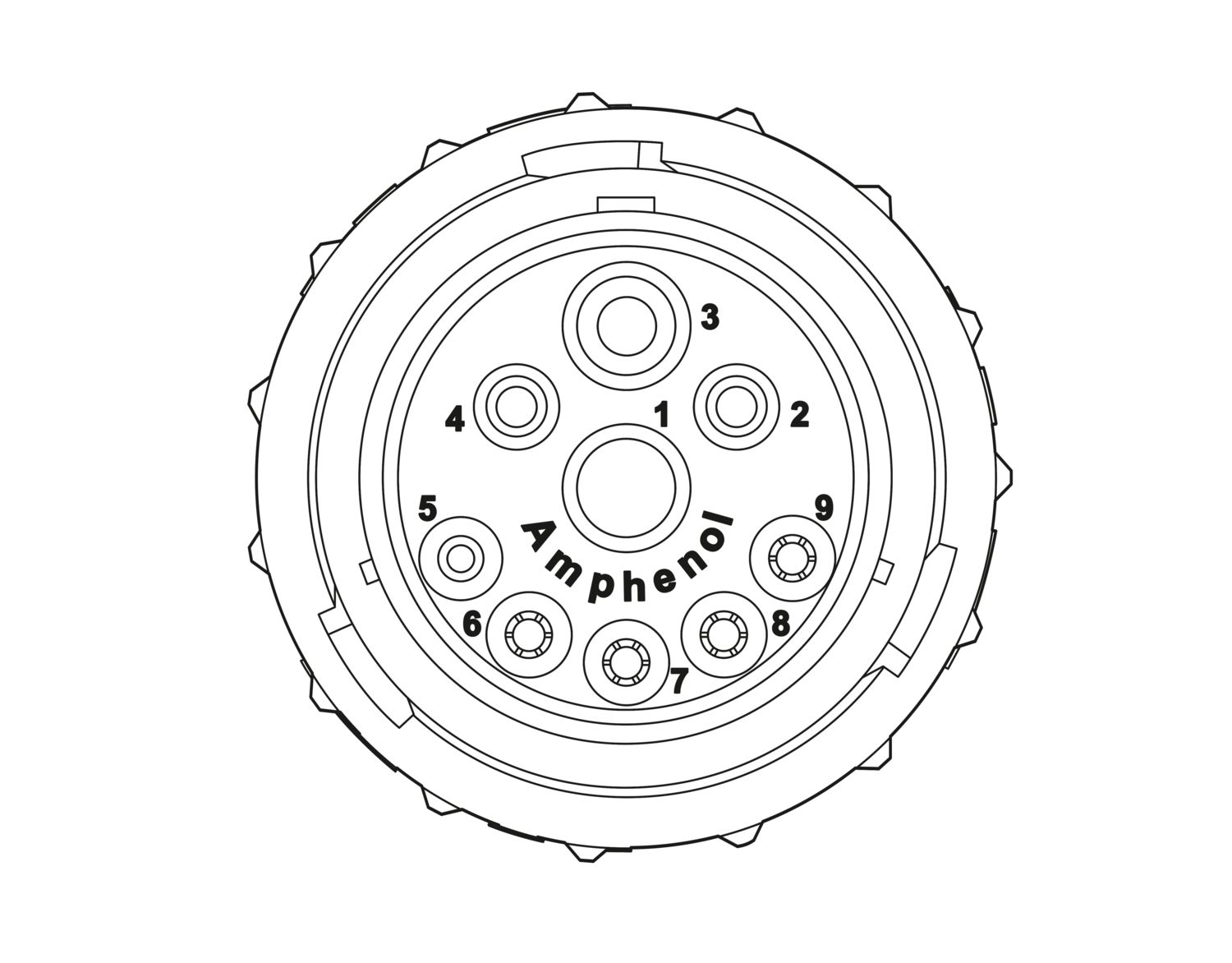

| Number of positions | 9 |
| Shielded | no |

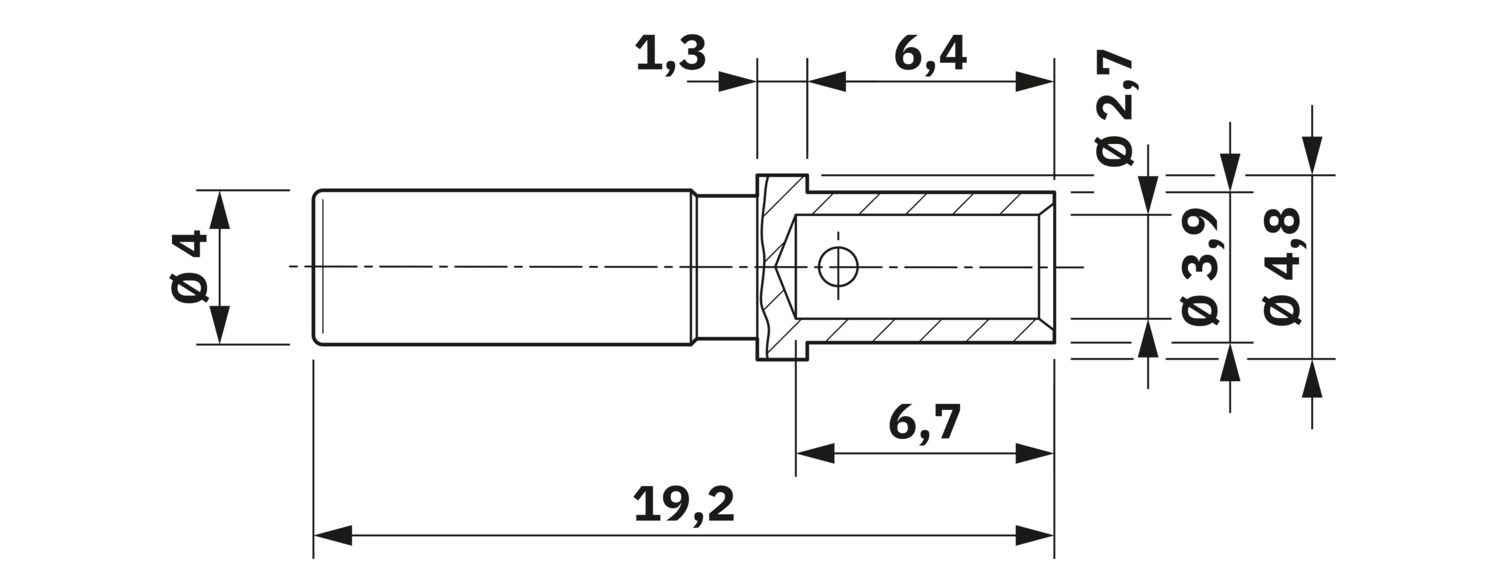

| Dimensional drawing |
|
| Length | 102 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | min. 100 |
| Housing material | PA |
| Contact material | Copper alloy |
| Contact surface material | nickel-plated |
| Ambient conditions | |
| Degree of protection | IP67 (in mated condition) |
| IP69K (in mated condition) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
