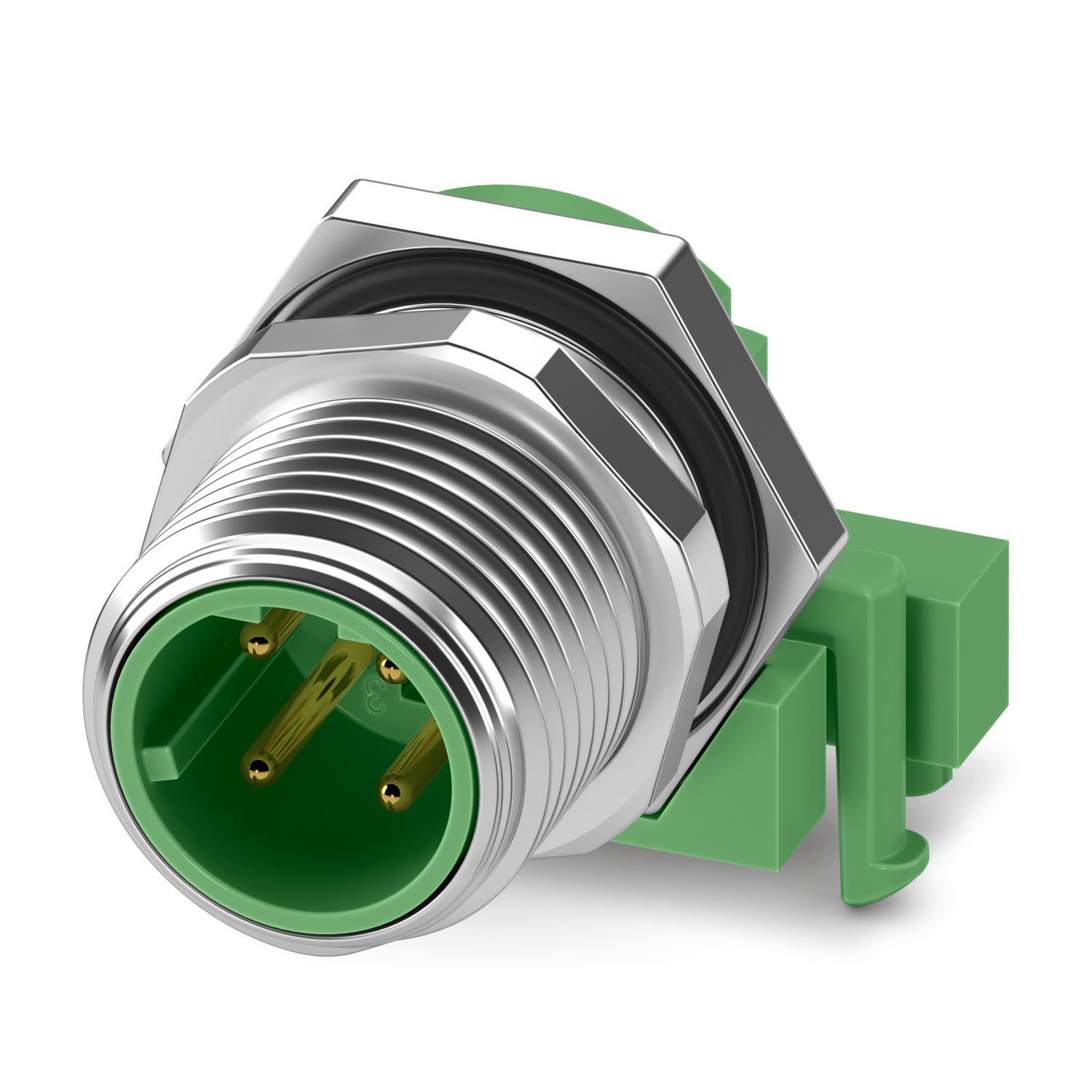

SACC-DSIV-M12MSD-4CON-L90 ST X - Device connector rear mounting

1396620

Device connector rear mounting, 4-position, Pin, angled, M12, coding: D, Rear mounting, M12 x 1, Solder pins

Product details

Mounting type	Rear mounting M12 x 1 With locking nut
Assembly note	With locking nut

Product type	Circular connectors (device side)
Application	Data
Number of positions	4
Shielded	no
Coding	D
Thread type	M12
Insulation characteristics
Overvoltage category	II
Degree of pollution	3

Flammability rating according to UL 94	V-0
Seal material	FKM
Contact material	Copper alloy
Contact surface material	Ni/Au
Contact carrier material	PA 10T
Material for screw connection	Zinc alloy

Mechanical data
Insertion/withdrawal cycles	> 100

Ambient conditions
Degree of protection	IP67
Ambient temperature (operation)	-25 °C ... 85 °C
UL Type Rating	Type 4 (indoor use only)

Standard designation	M12 circular connector
Standards/specifications	according to IEC 61076-2-101

Commercial data

Item number	1396620
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	AB23
Product key	ABQEGI
GTIN	4063151781613
Weight per piece (including packing)	11.84 g
Weight per piece (excluding packing)	11.76 g
Customs tariff number	85366990
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	250 V	4 A	22
