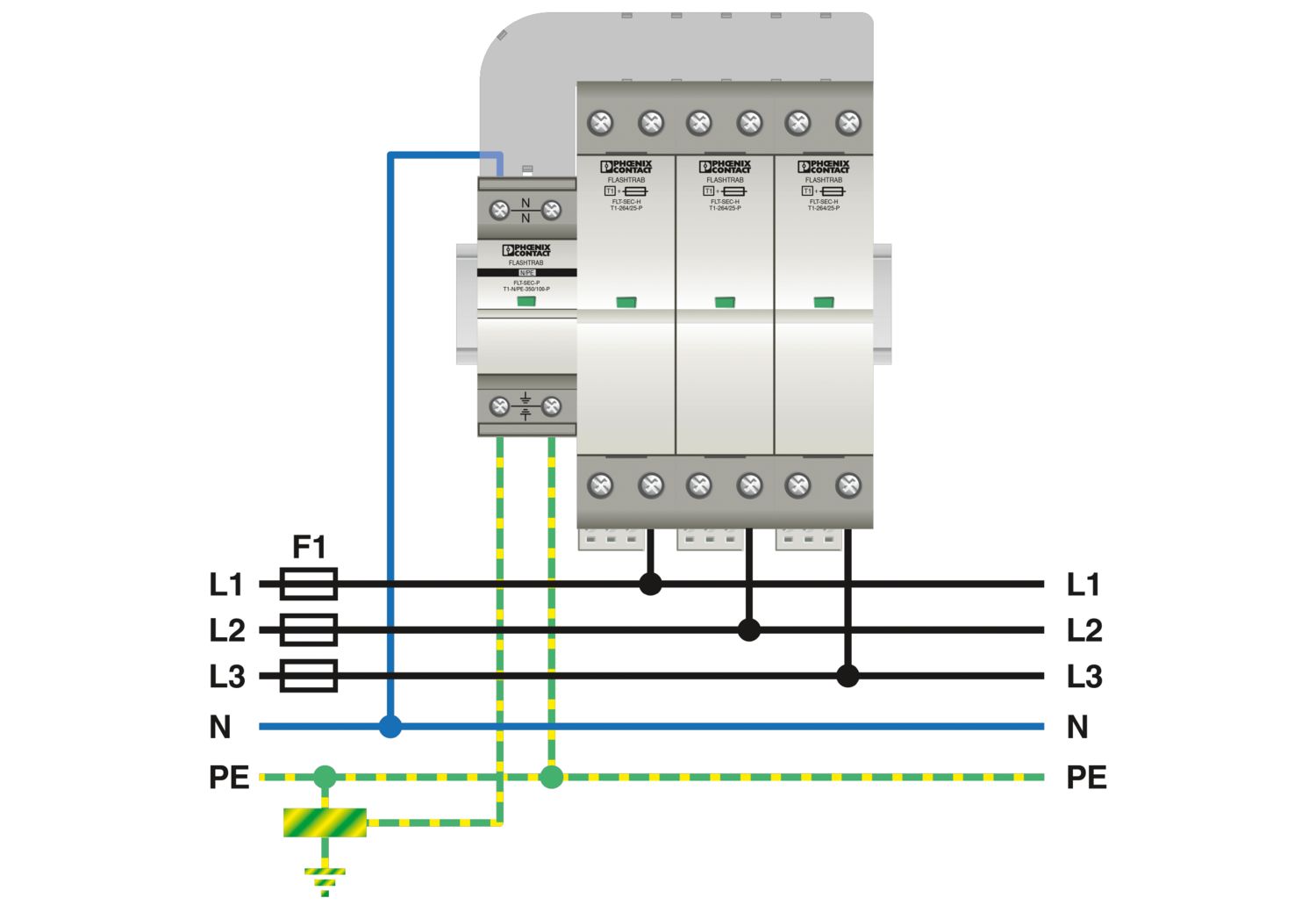

The following products are required when establishing a 3+1 circuit in TN-S/TT systems: 230/415 V AC: 3 x 2801615 (FLT-SEC-H-T1-1C-264/25-FM) + 1 x 2905472 (FLT-SEC-P-T1-N/PE-350/100-FM) + 1 x 2910501 FLT-SEC-H MPB-3+1 400/690 V AC: 3 x 2907259 (FLT-SEC-H-T1-1C-440/25-FM) + 1 x 2907262 (FLT-SEC-P-T1-N/PE-440/100-FM) + 1 x 2910501 FLT-SEC-H MPB-3+1
FLT-SEC-H MPB-3+1
-
Wiring bridge
2910501
Wiring bridge for connecting three FLASHTRAB SEC HYBRID lightning arresters with an N/PE spark gap to a 3+1 circuit for TN-S-/TT systems. Connecting pitch of 17.5 mm, 1-phase, 8-pos., 35 mm2 cross section with stable plastic housing for the required touch proofness when used as neutral conductor bridge.
