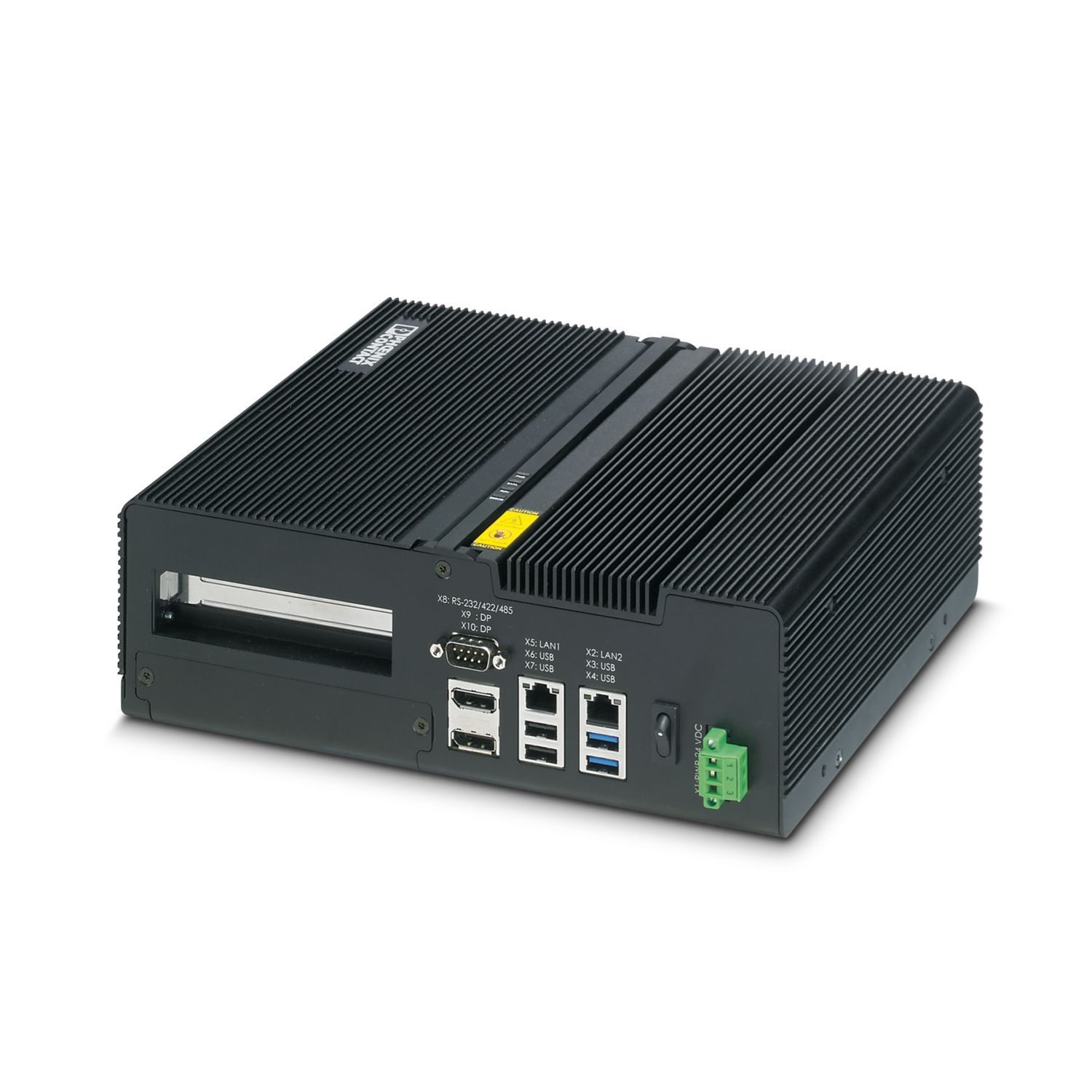

VL2 BPC 7000 - Box PC

2400333

IP30-rated Valueline® industrial box PC (BPC) with fanless design and Intel® Core™ i5-4300U processor with up to 16 GB of RAM. Mass storage options include HDD and SSD. A single optional PCI or PCIe slot is available.

Free download available. Downloads

Product details

Technical data

Notes

Note on application
Note on application	Only for industrial use

Product properties

Product type	Box PC
Computer data
Processor	Intel® Core™ i5-4300U 1.9 GHz/2.9 GHz
Operating system	without operating system
		Windows® 7 Professional SP1 (64-Bit), German
		Windows® 7 Professional SP1 (64-bit), English
		Windows® 7 Ultimate SP1 (64 bit), Multi-language
		Windows® 7 Ultimate SP1 (32-bit), Multi-language
		Windows® 7 Professional SP1 (32-bit), English
		Windows® 7 Professional SP1 (32-bit), German
		Windows® Embedded Standard 7 SP1 (32-bit), Multi-language
		Windows® Embedded Standard 7 SP1 (64-bit), Multi-language
		Windows® 10 IoT Enterprise LTSB 2015 (32-bit), Multi-language
		Windows® 10 IoT Enterprise LTSB 2015 (64-bit), Multi-language
		Windows® 10 IoT Enterprise LTSC 2019 (64-bit), Multi-language
RAM	4 GB DDR3 SODIMM
		8 GB DDR3 SODIMM
		16 GB DDR3 SODIMM
Data storage system	without data storage
		SSD (SLC), 4 GB
		SSD (SLC), 8 GB
		SSD (SLC), 16 GB
		SSD (SLC), 32 GB
		2.5" HDD SATA, 320 GB
		2.5" SSD (MLC), 240 GB
		2.5" SSD (MLC), 480 GB
Cooling	passive
PCI option 1	without slot
		PCI
		PCIe x4
Raid system	0, 1
Slots	PCI/PCIe optional
Display
Display type	without display
Screen resolution	not relevant
Touch technology	Without touch technology
Graphics card	Intel® HD Graphics 4400

Electrical properties

Service life of battery	5 years (typical)
Supply
Power supply unit	24 V DC ±20 %
Real-time clock
Realtime clock	Yes (battery-backed)

Interfaces

Interfaces	1x COM (RS-232/422/485)
	2x USB 2.0
	2x USB 3.0
Optional interfaces	Without optional interface
	2x COM (RS-232), 1x COM (RS-232/422/485)
	2x Ethernet, 1x audio out (3.5 mm), 1x audio in (3.5 mm)
Monitor output	2x DisplayPort
Network	2x Ethernet (10/100/1000 Mbps), RJ45
LAN chipset	Intel® I210-AT

Dimensions

Width	264 mm
Height	215 mm
Depth	95 mm
Note on dimensions	dependent on configuration
External dimensions
Width / Height / Depth	264 mm / 215 mm / 95 mm (dependent on configuration)
Installation dimensions
Width / Height / Installation depth	/ / (dependent on configuration)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP30
Ambient temperature (operation)	0 °C ... 45 °C (with HDD)
	-20 °C ... 60 °C (with SSD)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)
Shock	15g, 11 ms in accordance with IEC 60068-2-27
Vibration (operation)	DIN EN 60068-2-6

Mounting

Mounting type	Bookshelf mounting
	Panel mounting

Commercial data

Item number	2400333
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DR20
Product key	DRBAAA
Catalog page	Page 474 (C-6-2019)
Weight per piece (including packing)	4,800 g
Weight per piece (excluding packing)	6,036 g
Customs tariff number	84715000
Country of origin	TW

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

Your advantages

Configurable as a box PC (BPC)

Fanless design for industrial applications

Powerful and energy-efficient Intel® Core™ i5 processor

Box PC (BPC): IP30 rating

Easily removable rotating or solid-state hard drives in a variety of sizes

ECLASS-11.0	19200102
ECLASS-12.0	19200102
ECLASS-13.0	19200102

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(a), 6(a)-I, 6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-15 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead titanium zirconium oxide (CAS: 12626-81-2)
		Lead titanium trioxide (CAS: 12060-00-3)
		Lead (CAS: 7439-92-1)

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VL2 BPC 7000 - Box PC

2400333

Product details

ECLASS

ETIM

UNSPSC

UL Listed

cUL Listed

EAC-RoHS

cUL Listed

UL Listed

cUL Listed

UL Listed

cUL Listed

UL Listed

cULus Listed

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VL2 BPC 7000 - Box PC 2400333

Product details

ECLASS

ETIM

UNSPSC

Compatible products

WES2009 / WES7 RECOVERY USB - Software package 2400303

VL2 4 GB SLC SSD SATA KIT - Memory 2400335

VL2 8 GB SLC SSD SATA KIT - Memory 2400336

VL2 16 GB SLC SSD SATA KIT - Memory 2400337

VL2 32 GB SLC SSD SATA KIT - Memory 2400338

DP TO VGA ADPTR - Adapter 2400173

DP TO DVI ADPTR - Adapter 2400174

VL2 480 GB SSD KIT - Memory 2403834

VL 2.0M DP CABLE - Connecting cable 2404774

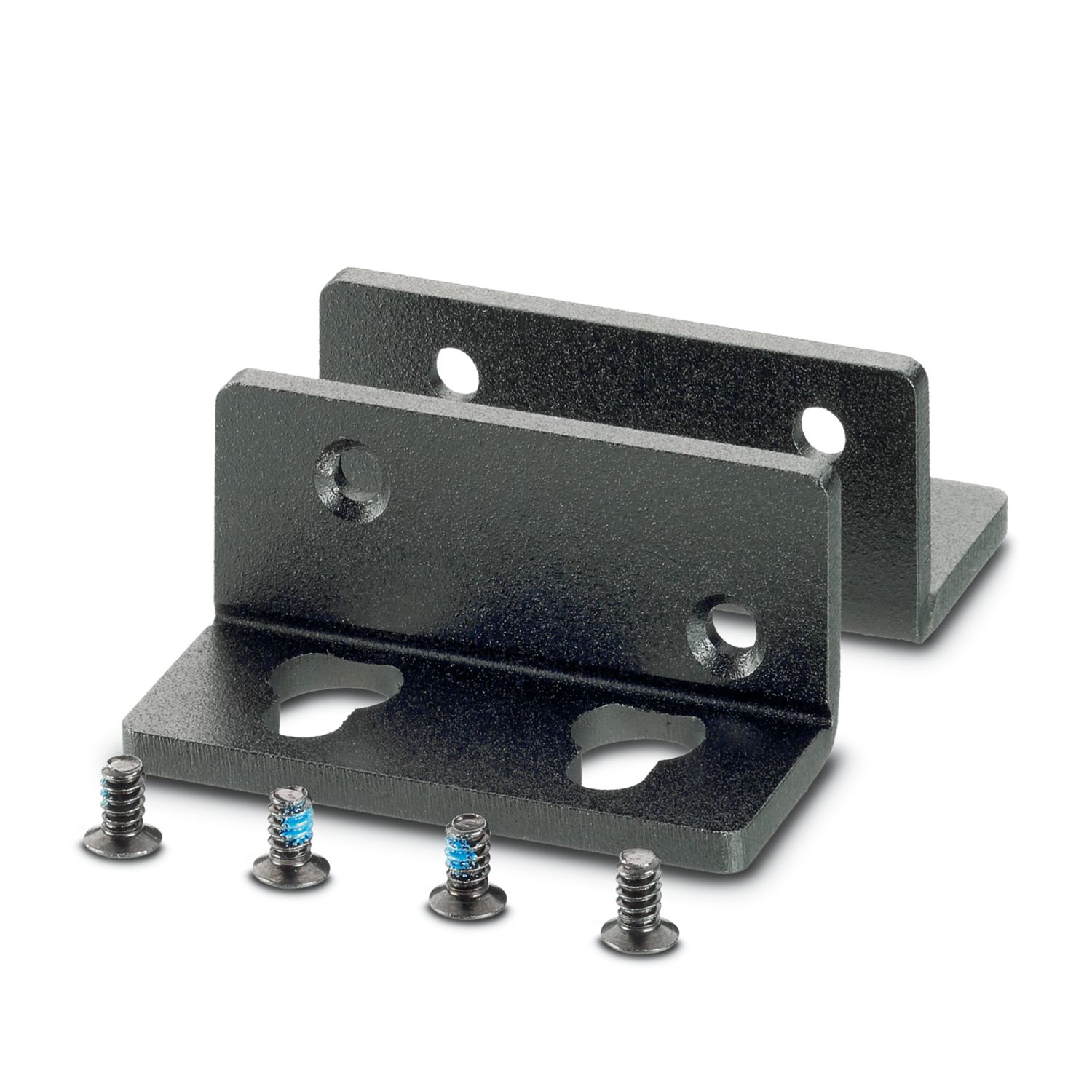

VL2 BOOKSHELF MOUNT BRACKET - Mounting material 1015306
