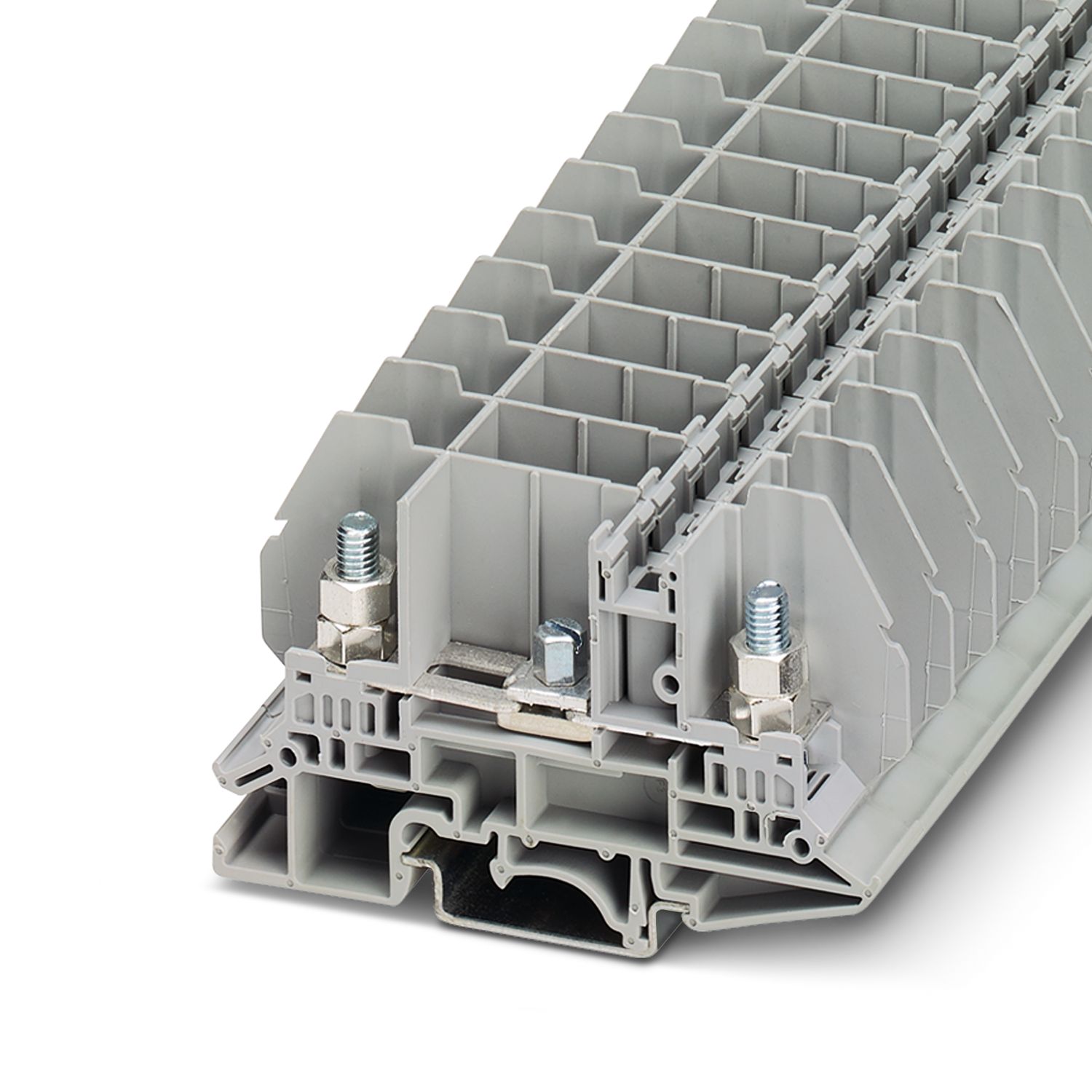

RBO 5-T-B-HEX - Test disconnect terminal block

3076714

Test disconnect terminal block, nom. voltage: 800 V, nominal current: 50 A, connection method: Bolt connection, Rated cross section: 10 mm², mounting: NS 35/7,5, NS 35/15, color: gray

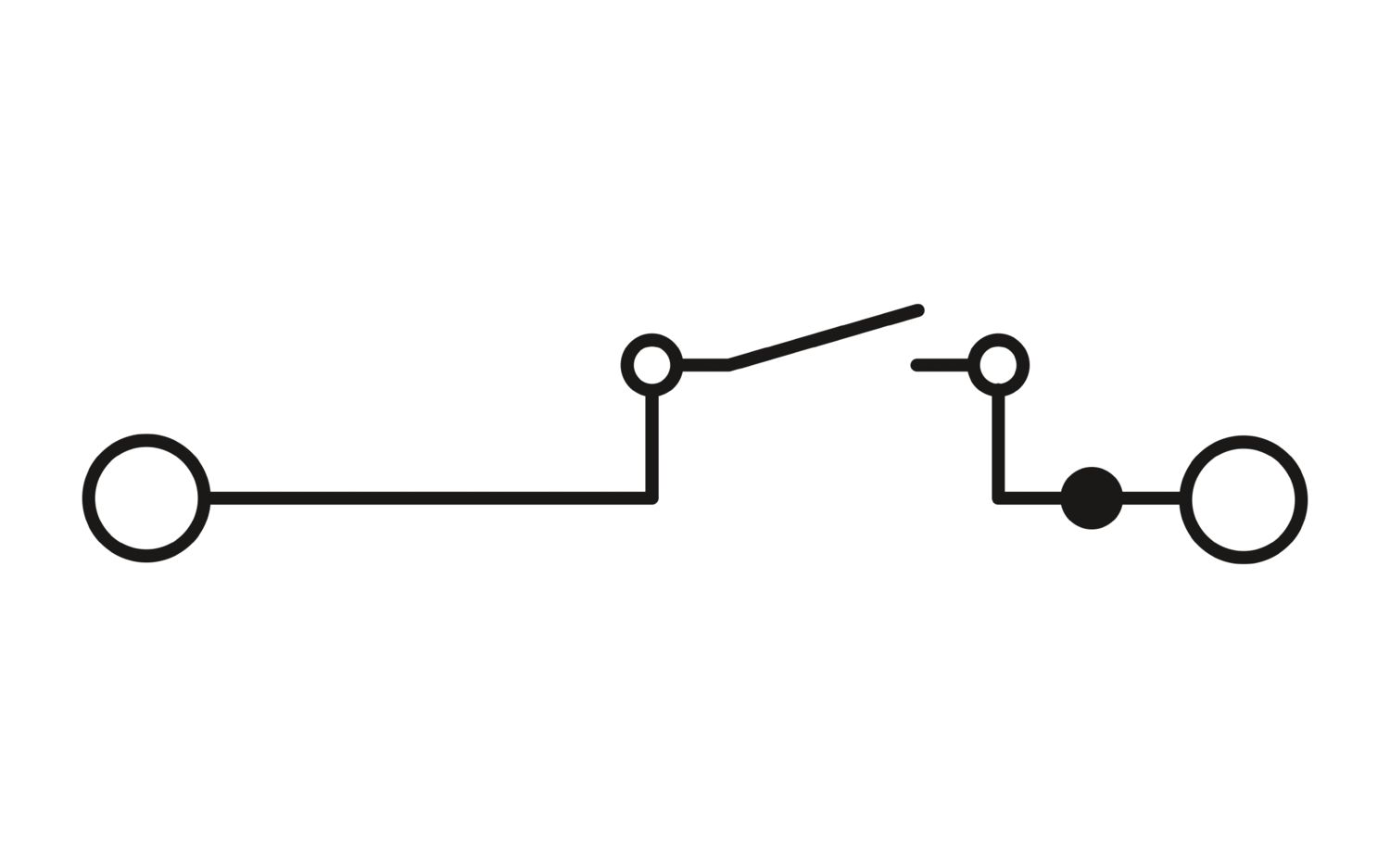

Product details

Product type	Bolt connection terminal block
Pitch	13 mm
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.82 W

Number of connections per level	2
Nominal cross section	10 mm²
Tightening torque disconnect slide	M4 1.2 ... 1.4 Nm
Screw thread	M5
Stripping length	The stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standard	IEC 60947-7-1
Nominal current	50 A
Maximum load current	50 A (with 10 mm² conductor cross section)
Nominal voltage	800 V (with open 630 V disconnect point)
Nominal cross section	10 mm²
Cable lug connection DIN 46234:1980-03
Connection in acc. with standard	DIN 46234:1980-03
Cross section	0.1 mm² ... 10 mm²
Cross section range AWG	26 ... 8 (converted acc. to IEC)
Hole diameter	5.3 mm
Width	10 mm
Bolt diameter	5 mm
Tightening torque	2 ... 2.2 Nm
Connection in acc. with standard	DIN 46237:1970-07
Cross section	0.5 mm² ... 6 mm²
Cross section range AWG	20 ... 10 (converted acc. to IEC)
Hole diameter	5.3 mm
Width	10 mm
Bolt diameter	5 mm
Tightening torque	2 ... 2.2 Nm
Identification color of ring cable lugs : red	1 mm²
Identification color of ring cable lugs : blue	2.5 mm²
Identification color of ring cable lugs : yellow	6 mm²

Width	13 mm
End cover width	2.2 mm
Height	80.8 mm
Depth on NS 35/7,5	49.8 mm
Depth on NS 35/15	57.3 mm
Pitch	13 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 10 mm²	1.2 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	5 N
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	1.857 (m/s²)²/Hz
Acceleration	0.8g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15
Screw thread	M4

Commercial data

Item number	3076714
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE44
Product key	BE4433
GTIN	4046356662215
Weight per piece (including packing)	35 g
Weight per piece (excluding packing)	33.75 g
Customs tariff number	85369010
Country of origin	IN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N
Use group B
	600 V	41 A
Use group C
	600 V	41 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N
Use group B
	600 V	41 A
Use group C
	600 V	41 A

Environmental product compliance

Compatible products

Accessories

Your advantages

The disconnect slide is secured with a hexagonal slotted-head screw

ECLASS-12.0	27141126
ECLASS-13.0	27250101

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

RBO 5-T-B-HEX - Test disconnect terminal block

3076714

Product details

ECLASS

ETIM

UNSPSC

cUL Recognized

UL Recognized

EAC

EAC

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

RBO 5-T-B-HEX - Test disconnect terminal block 3076714

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FB 10-13 - Fixed bridge 3059126

FB 10-13 ISO - Fixed bridge 3059663

TS-KK 3 - Separating plate 2770215

AP RSC-T - Cover profile 3059139

D-RSC 5-T - End cover 3058046

NS 35/ 7,5 PERF 2000MM - DIN rail perforated 0801733

NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated 0801681

NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated 1204119

NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204122

NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated 0801704

NS 35/ 7,5 ZN PERF 2000MM - DIN rail perforated 1206421

NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated 1206434

NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 0801762

NS 35/ 7,5 CAP - End cap 1206560

NS 35/15 PERF 2000MM - DIN rail perforated 1201730

NS 35/15 UNPERF 2000MM - DIN rail, unperforated 1201714

NS 35/15 WH PERF 2000MM - DIN rail perforated 0806602

NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204135

NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated 1201756

NS 35/15 ZN PERF 2000MM - DIN rail perforated 1206599

NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated 1206586

NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201895

NS 35/15 CAP - End cap 1206573

NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201798

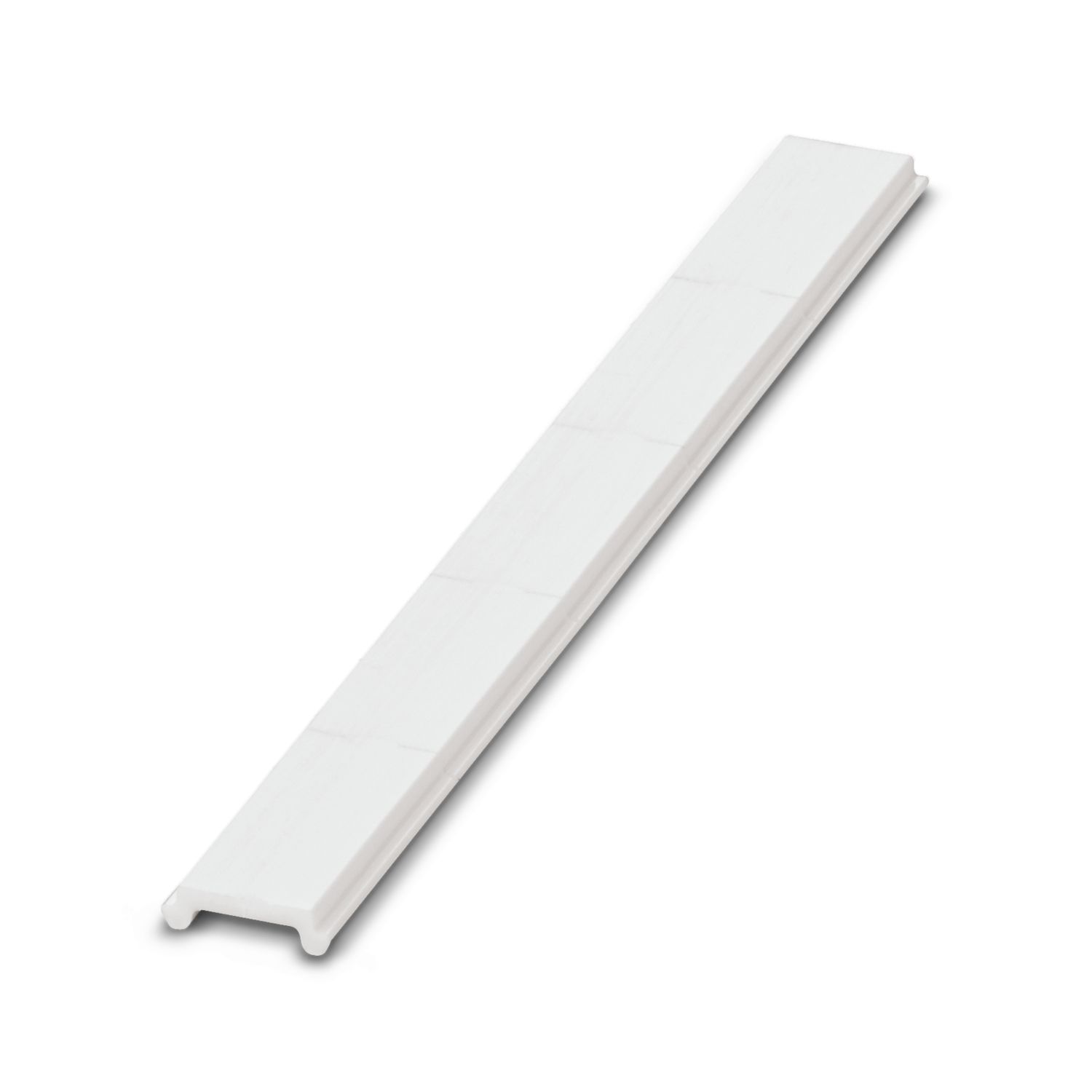

ZB 13:UNBEDRUCKT - Zack marker strip 0829131
