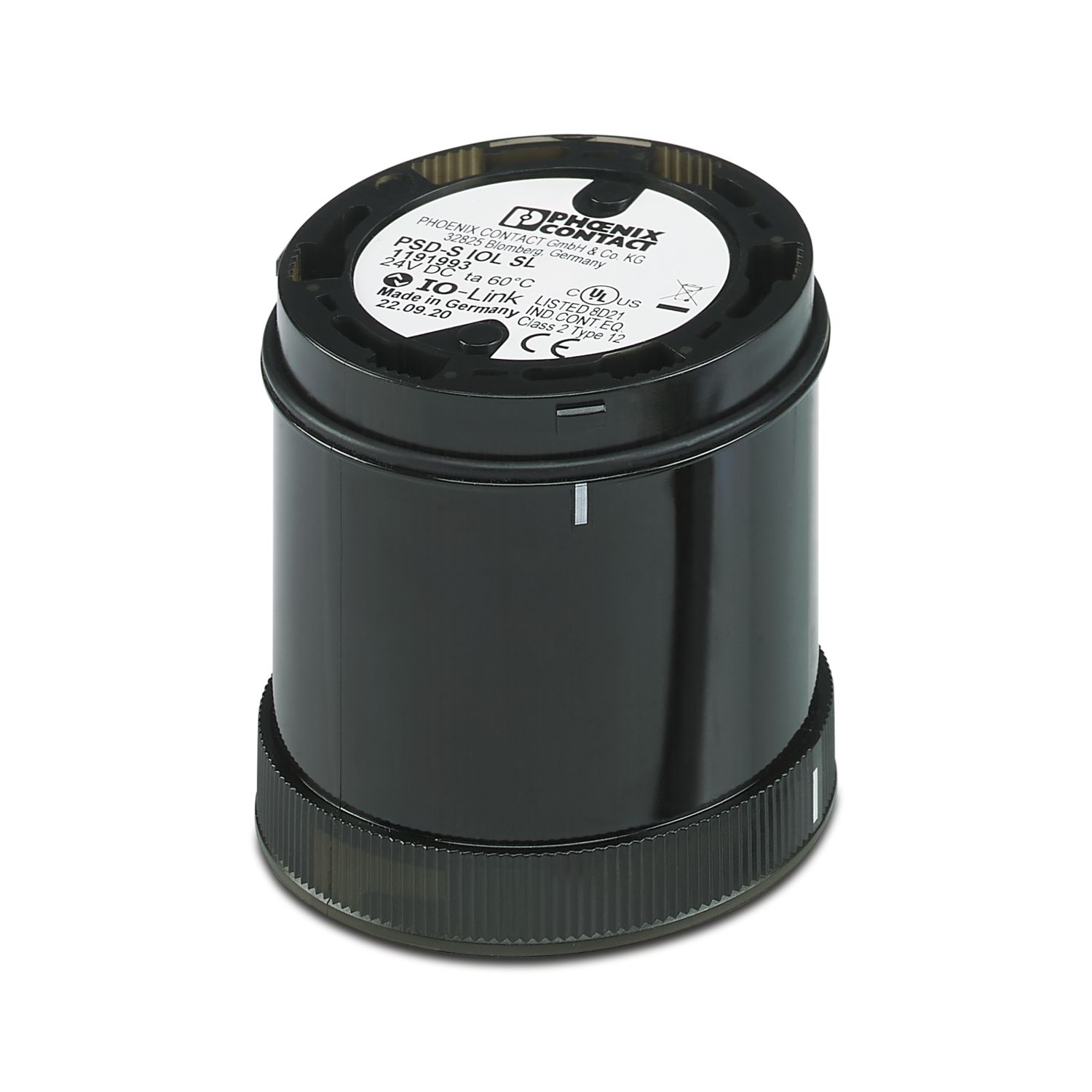

The IO-Link device is intended to be part of a modular signal tower. This is used for issuing digital signals for controlling the modular 70 mm signal elements. The IO-Link device is connected to an IO-Link master via an IO-Link A port. Use within different networks is possible via the IO-Link master. You can assemble a signal tower corresponding to your requirements by combining one IO-Link device with a maximum of five further elements in any way. Only use the IO-Link device as the lowest element on a connection element. Set up to a maximum of five optical signal elements or up to four optical and one audible signal element. Only use an audible signal element as the top element. A bayonet locking system establishes the mechanical and electrical connection between the elements. Connection elements with spring-cage connection can be used for electrical connection of the signal tower. Various accessories are available to assemble the signal tower.
PSD-S IOL
-
Connection element
1191993
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Assembly element |
| Product family | PSD-S |
| General | |
| Input voltage | 24 V DC |
| Current consumption | typ. 335 mA |
| Supply: IO-Link | |
| Nominal voltage for I/O supply | 24 V DC |
| IO-Link | |
| Number of ports | 1 |
| Cycle Time | min. 5 ms |

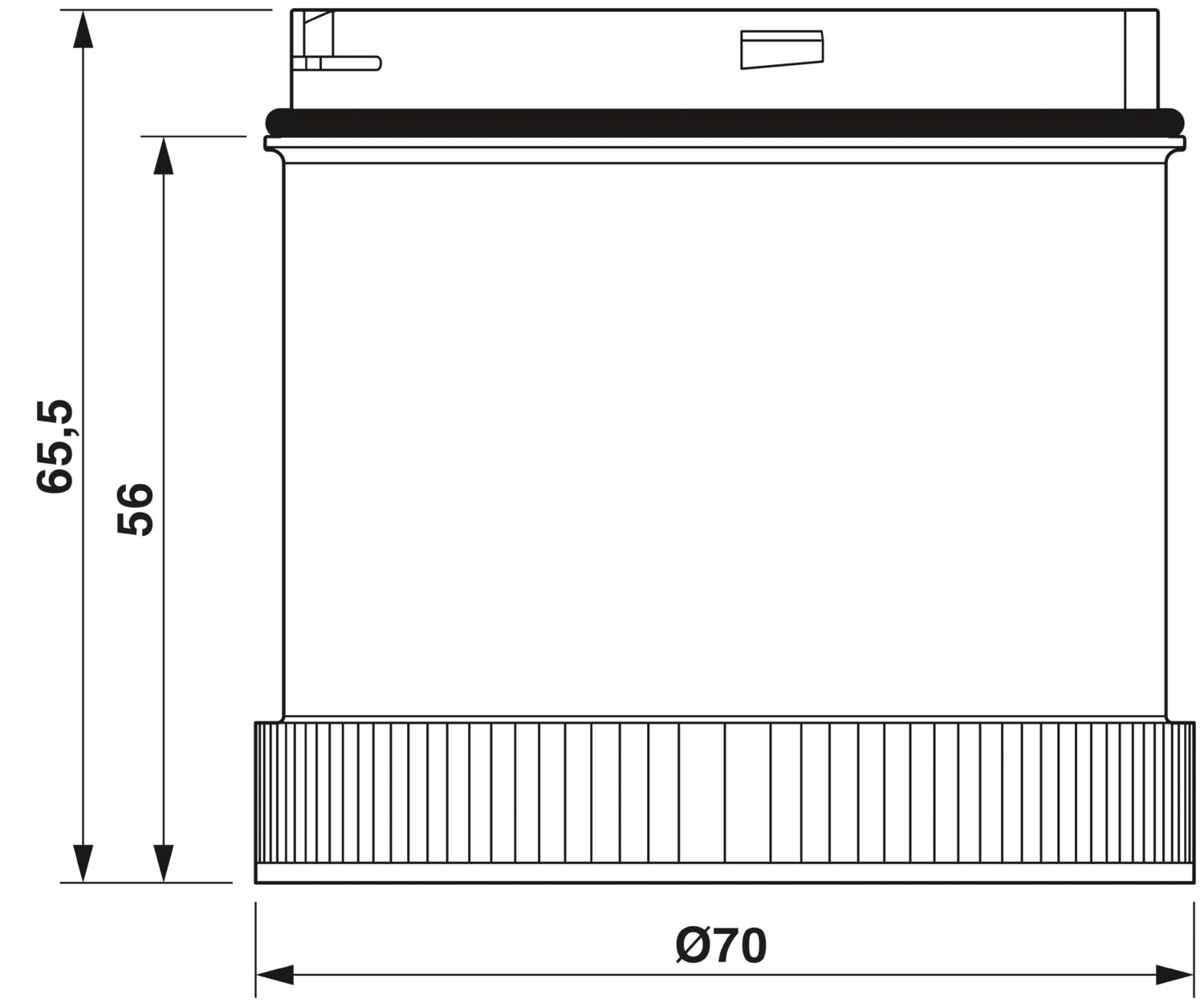

| Dimensional drawing |
|
| Height | 65.5 mm |
| Diameter | 70 mm |
| Color | black |
| Material | Polycarbonate PC |
| Ambient conditions | |
| Degree of protection | IP65 (when installed or with end cover) |
| Ambient temperature (operation) | -30 °C ... 60 °C |
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
| Mounting type | Plug-in mounting |
Your advantages
Tool-free element changeover
Can be freely combined
Low power consumption
Degree of protection IP65
