MW 35/27
-
Mounting bracket
5040065
Plastic mounting bracket, with NS 35/7.5 DIN rail, to snap onto modular terminal blocks with a universal foot, profile length: 27 mm
Product details
| Product type | Assembly adapter |

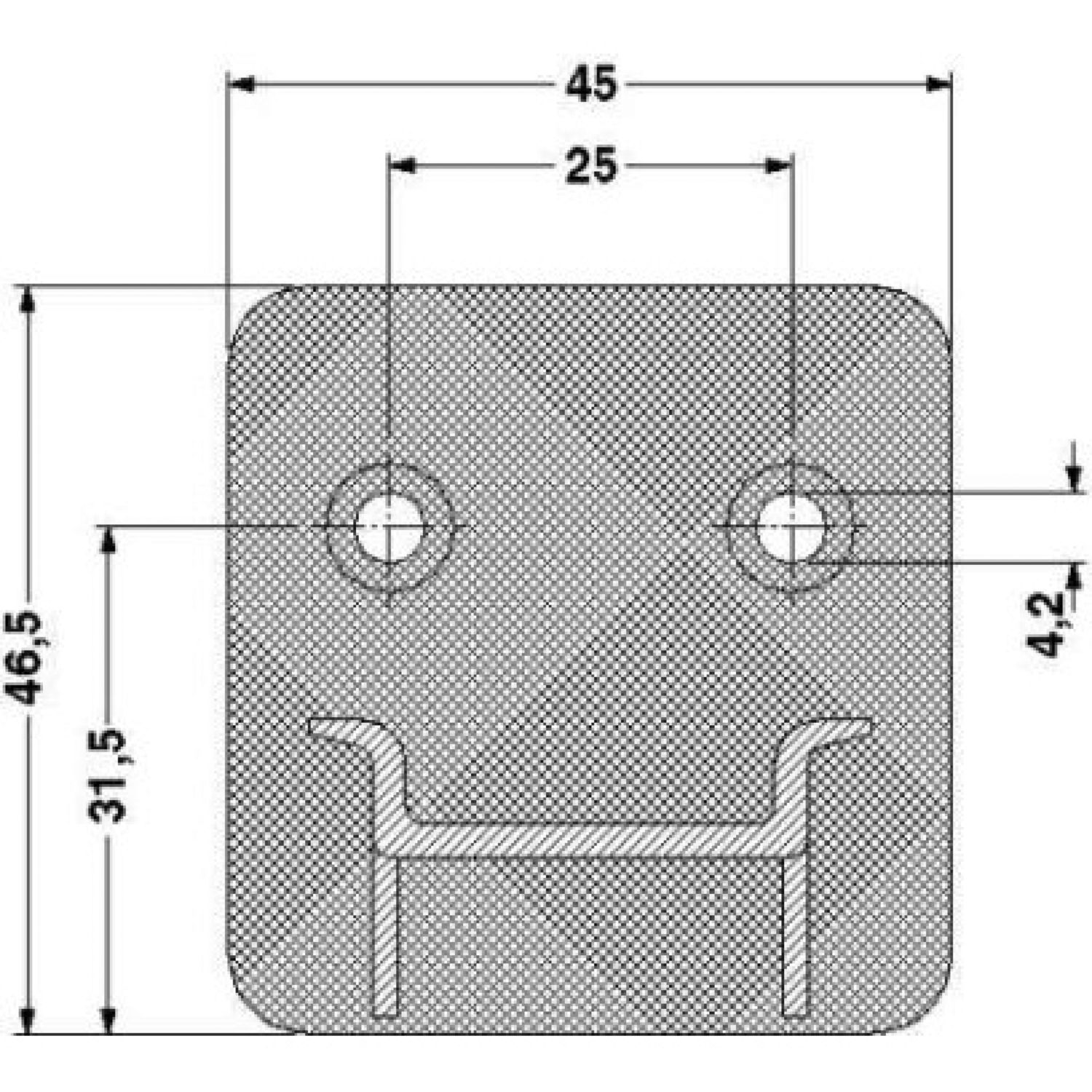

| Dimensional drawing |
|
| Width | 45 mm |
| Height | 27 mm |
| Depth | 46.5 mm |
| Length | 27 mm |
| Flammability rating according to UL 94 | HB |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
