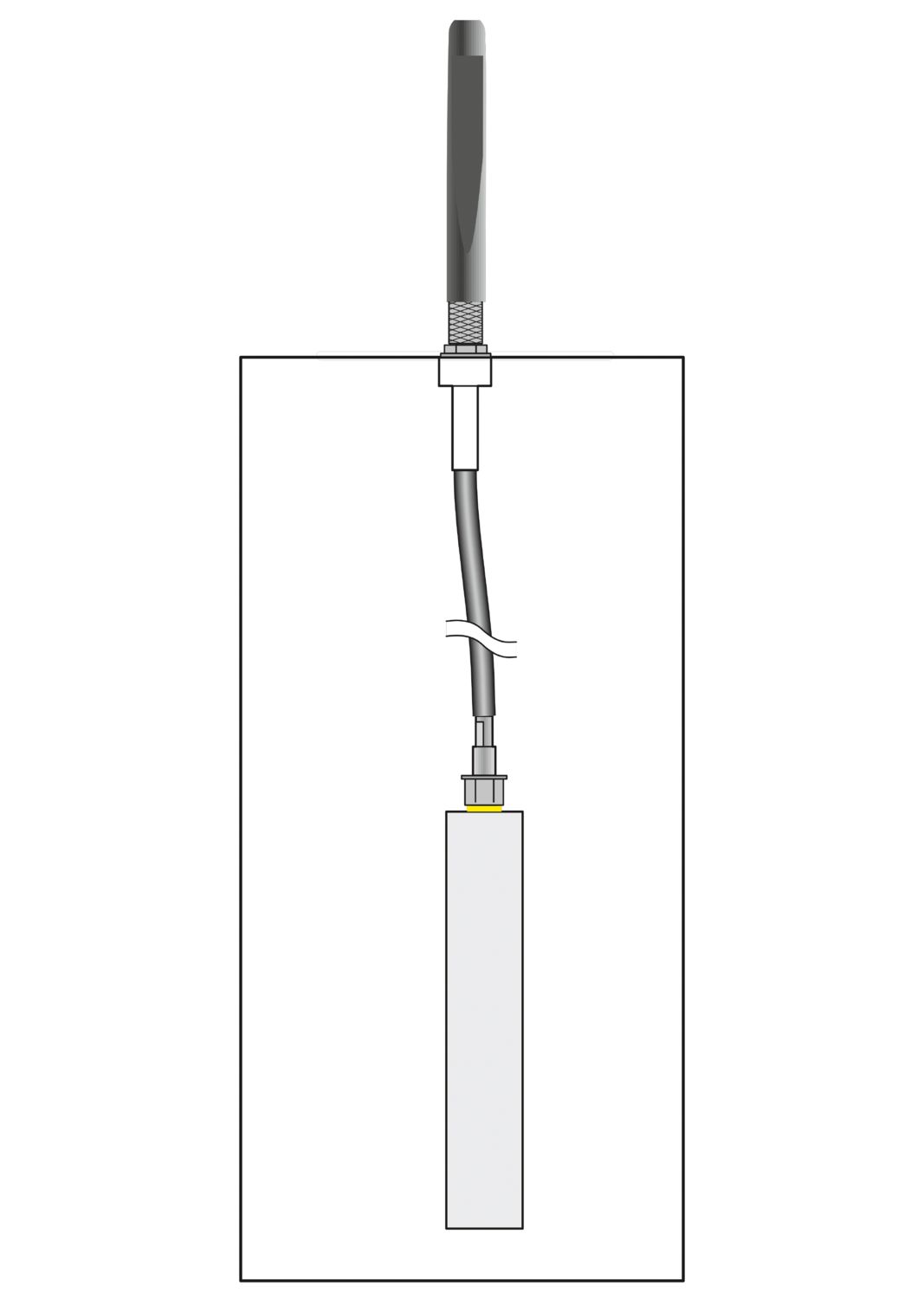

Installation example

Antenna - ANT-OMNI-2459-02
2701408

Omnidirectional antenna for control cabinet mounting, frequency band: 2.4 GHz / 5 GHz, gain: 2.5 dBi / 5 dBi, degree of protection: IP68, connection: N (male)

This product needs further products for operation. Mandatory Accessories

Product Details

Product type Antenna
Radiation characteristics Omnidirectional
Gain 2.5 dBi (2.4 GHz)
5 dBi (5 GHz)
Vertical beamwidth 30 ° (at 2.4 GHz)
16 ° (at 5 GHz)
Horizontal beamwidth 360 ° (at 2.4 GHz)
360 ° (at 5 GHz)
Polarization Linear vertical
Frequency band 2.4 GHz
5 GHz
Frequency range 2.4 GHz ... 2.5 GHz
5.15 GHz ... 5.85 GHz
Impedance 50 Ω
Maximum capacity 2.00 W
Connection technology
Connection method N (male)
Length 180 mm
Diameter 23 mm
Material ABS-PC (Radom)
Connecting cable No
Ambient conditions
Degree of protection IP68
Ambient temperature (operation) -40 °C ... 70 °C
Ambient temperature (storage/transport) -40 °C ... 70 °C
Mounting type Control cabinet
Assembly instructions Accessories required
Outdoors and indoors
Item number 2701408
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key C23
Product Key DNN2Z1
Catalog Page Page 388 (C-6-2019)
GTIN 4046356746731
Weight per Piece (including packing) 58.5 g
Weight per Piece (excluding packing) 58.5 g
Customs tariff number 85177100
Country of origin TW

ECLASS

ECLASS-9.0 19070105
ECLASS-10.0.1 19070105
ECLASS-11.0 19070105

ETIM

ETIM 8.0 EC001698

UNSPSC

UNSPSC 21.0 43223100
China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Compatible Products

Your advantages

Ideally suited for freely mobile or stationary applications with 2.4 GHz or 5 GHz
