HC-B 24-ADP-B 16-GY
-
Adapter plate
1660449

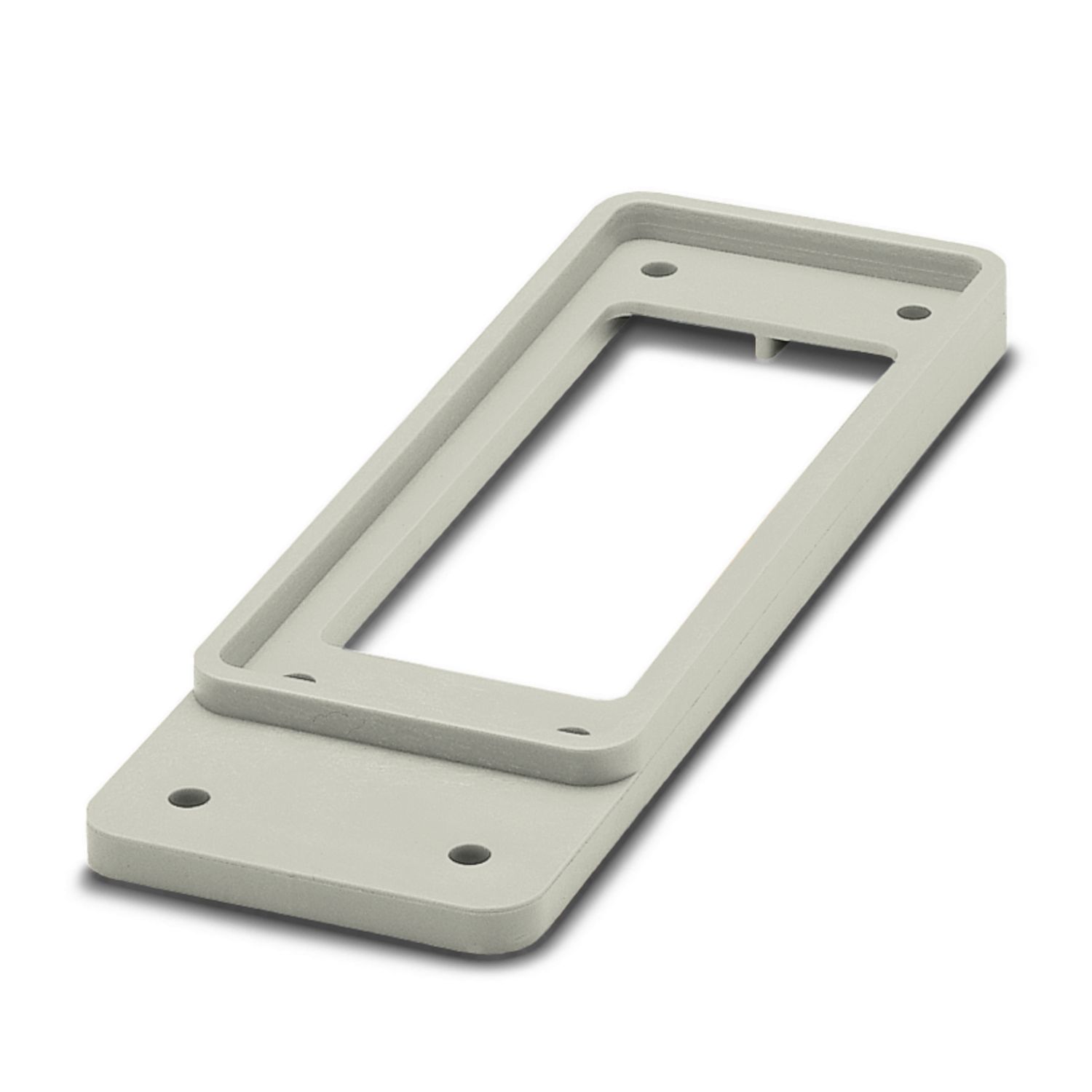

HEAVYCON adapter plate, type B24 on B16, for panel cutouts of type B24, gray
Product details
| General | For panel cutouts of type B24, cannot be used for panel mounting bases having a pre-mounted protective cover |
| General | Cannot be used with HC-STA and HC-EVO housings |
| Product type | Adapter plate |
| Type | B24 |

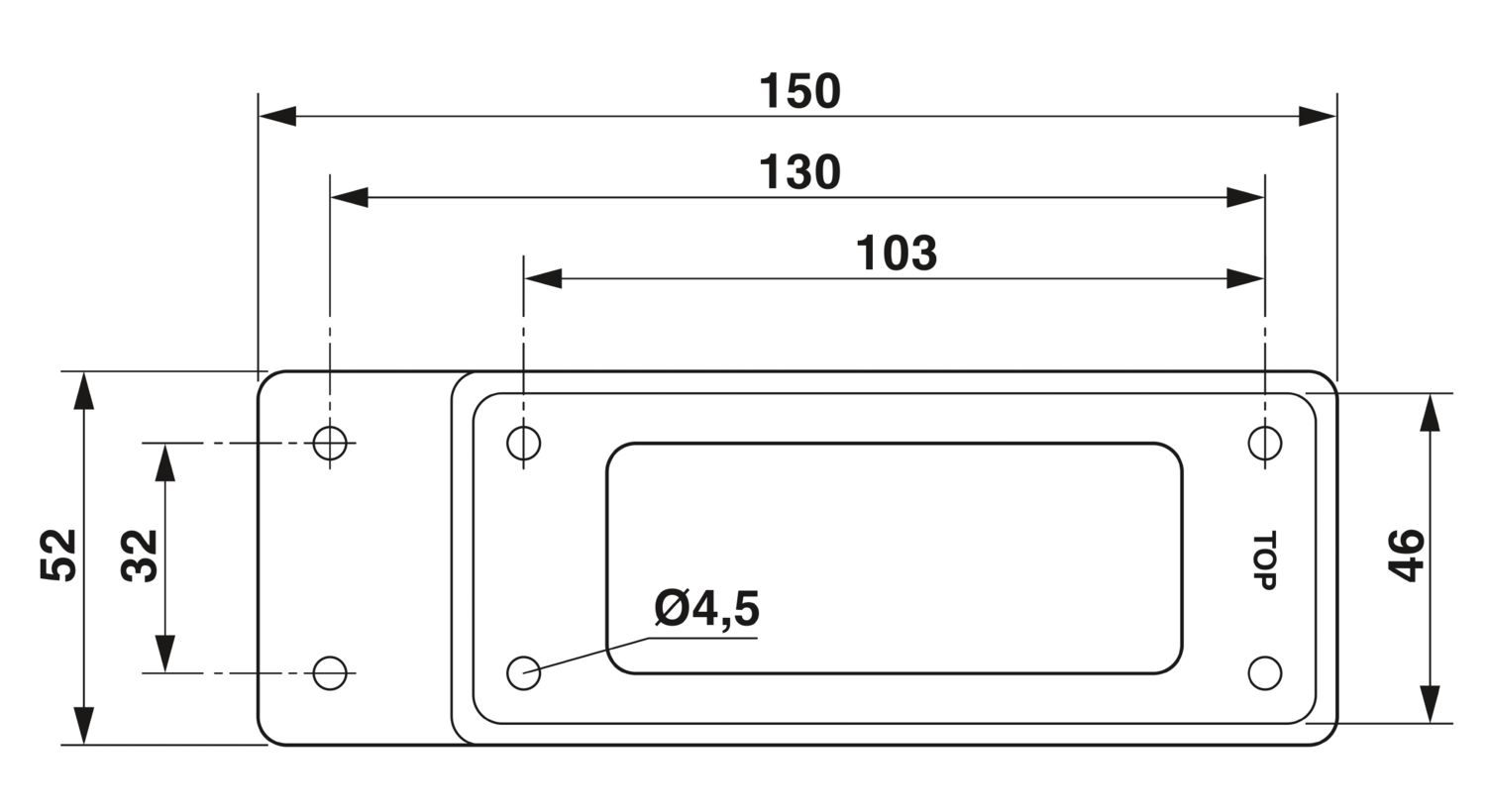

| Dimensional drawing |
|
| Width | 52 mm |
| Height | 7 mm |
| Length | 150 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 27 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 36 mm |
| Length of the assembly cutout | 113 mm |
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | HB |
| Seal material | PTS |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Cannot be used in panel mounting bases having a pre-mounted cover |
