Adapter plate, incl. mounting screws
HC-B 16-ADP/1 DSUB 37
-
Adapter plate
1775512
D-SUB adapter plate, for one D-SUB connector, no. of positions 37, housing series HC-B 16...
Product details
| General | For housing HC-B16 |
| Product type | Adapter plate |
| Type | B16 |
| Number of positions | 37 |
| Seal present | no |

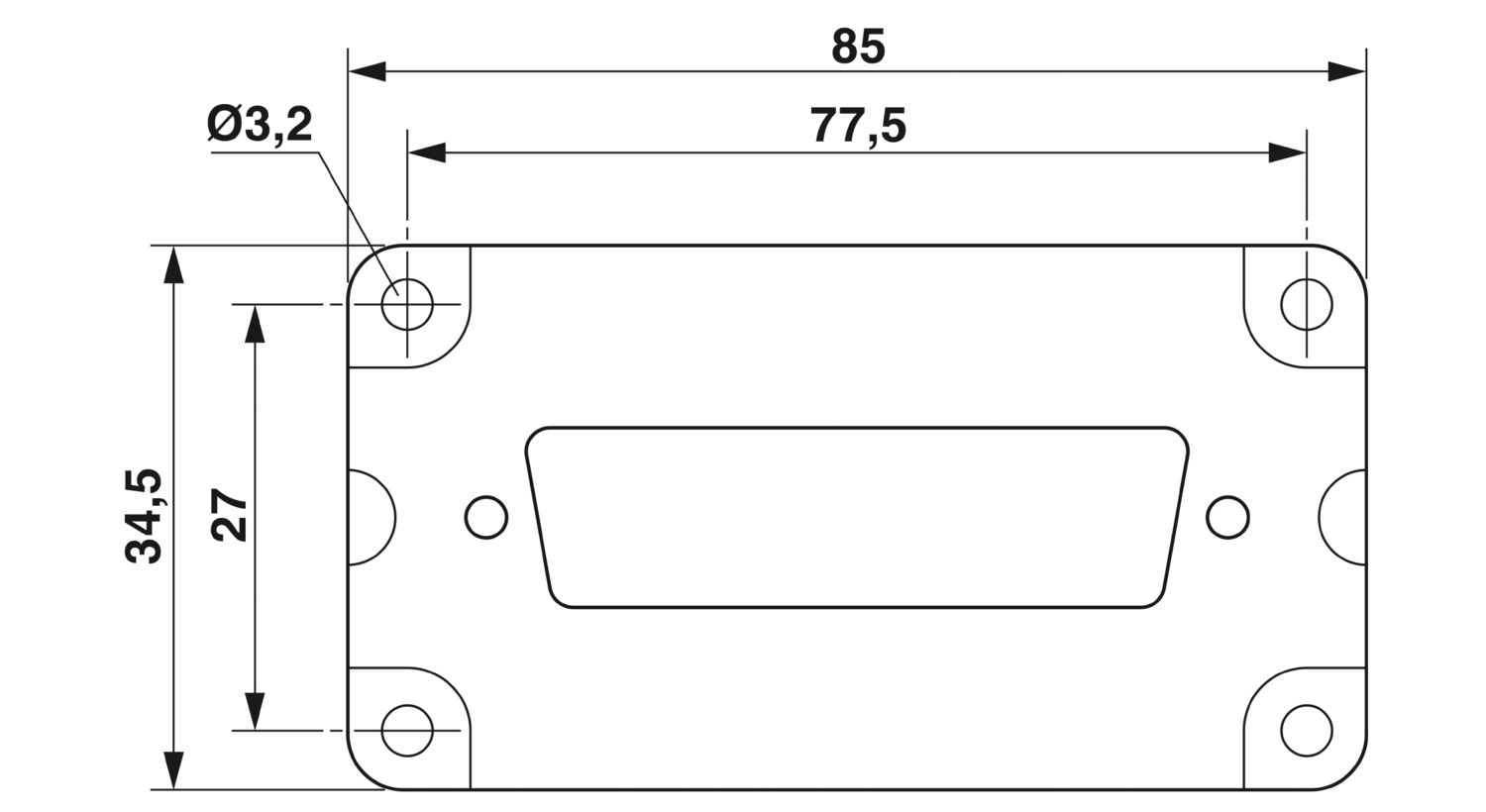

| Dimensional drawing |
|
| Width | 34.5 mm |
| Height | 10 mm |
| Length | 85 mm |
| Material | PA |
| Flammability rating according to UL 94 | HB |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Mounting screws: 1) slotted self-tapping screw 2.9 x 6.5 DIN 7971 2) M3 x 14 slotted DIN 84 |
| Mounting position of the adapter plate in the sleeve housing: T is visible after mounting in the housing. Mounting position of the adapter plate in the panel mounting base/socket housing/coupling housing: A is visible after mounting in the housing. Mounting position of the D-SUB (after mounting in the housing): in front of the mounting panel (front mounting) |
