UMK-16 RELS/KSR-W230/I/S100
-
Active module
2975845
VARIOFACE input module, for Siemens SIMATIC® S5-95U and S5-100U, with plug-in sockets for 16 miniature switching relays for 230 V AC

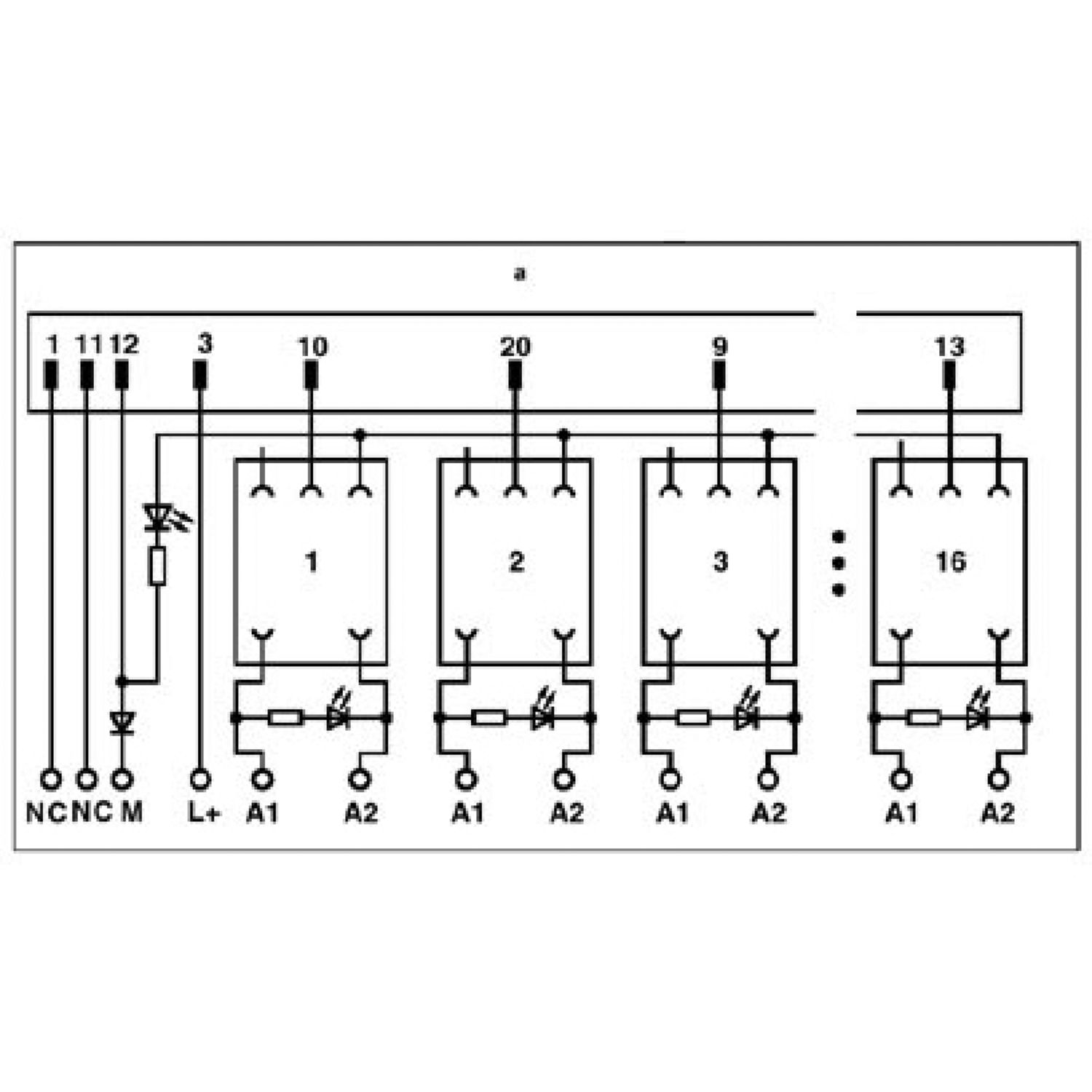

Product details
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Product type | Relay Module |
| No. of channels | 16 |
| Compatible components | Miniature switching relay, REL-KSR-W230/21AU |
| With components | no |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Nominal input voltage UN | 230 V AC |
| Input voltage range in reference to UN | 0.4 ... 1.1 |
| Typical input current at UN | 0.5 mA (LED display) |
| Protective circuit | Polarity protection diode |
| Operating voltage display | Green LED |
| Status display/channel | Glow lamp |
| Compatible components | Miniature switching relay, REL-KSR-W230/21AU |
| Switching | |
| Contact switching type | 1 N/O contact |
| Maximum switching voltage | 24 V DC |
| 30 V DC | |
| Limiting continuous current | 0.5 A |
| Error detection (line break / short-circuit) | no |
| Input | |
| Connection method | Flat-ribbon cable connector in acc. with IEC 60603-13 |
| Stripping length | 8 mm |
| Number of connections | 1 |
| Number of positions | 20 |
| Output | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of connections | 36 |
| Number of positions | 2 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Status display present | yes |
| Width | 281.3 mm |
| Height | 90 mm |
| Depth | 68 mm |
| Color | green (RAL 6021) |
| Housing insulation material | PVC, side panel PA non-reinforced, |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | IEC 60664 |
| IEC 60664 | |
| DIN VDE 0110 | |
| DIN VDE 0160 (in parts) |
| Mounting position | any |
| Item number | 2975845 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Product key | DK218S |
| GTIN | 4017918089160 |
| Weight per piece (including packing) | 469.35 g |
| Weight per piece (excluding packing) | 469.35 g |
| Country of origin | DE |
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
