PSD-S AE SM7-4 100DB/3
-
Acoustic element
2700141
Siren element, 7 tones, 24 V DC, max. 100 dB(A), tone range over 3 signal lines, black
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Signal element |
| Product family | PSD-S |
| General | |
| Input voltage | 24 V DC ±10 % |
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum inrush current | max. 500 mA |
| Current consumption | typ. 30 mA |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | Siren |
| Signal frequency | approx. 1 Hz (Pulse tone) |
| approx. 20 Hz (Trill tone) | |
| approx. 420 Hz (Hum tone) | |
| Tone frequency | approx. 1.6 kHz |
| approx. 3.4 kHz | |
| Number of tones | 7 (Tone selection via 3 signal lines) |
| Volume | max. 100 dB (for continuous and pulse tone of 3.4 kHz) |

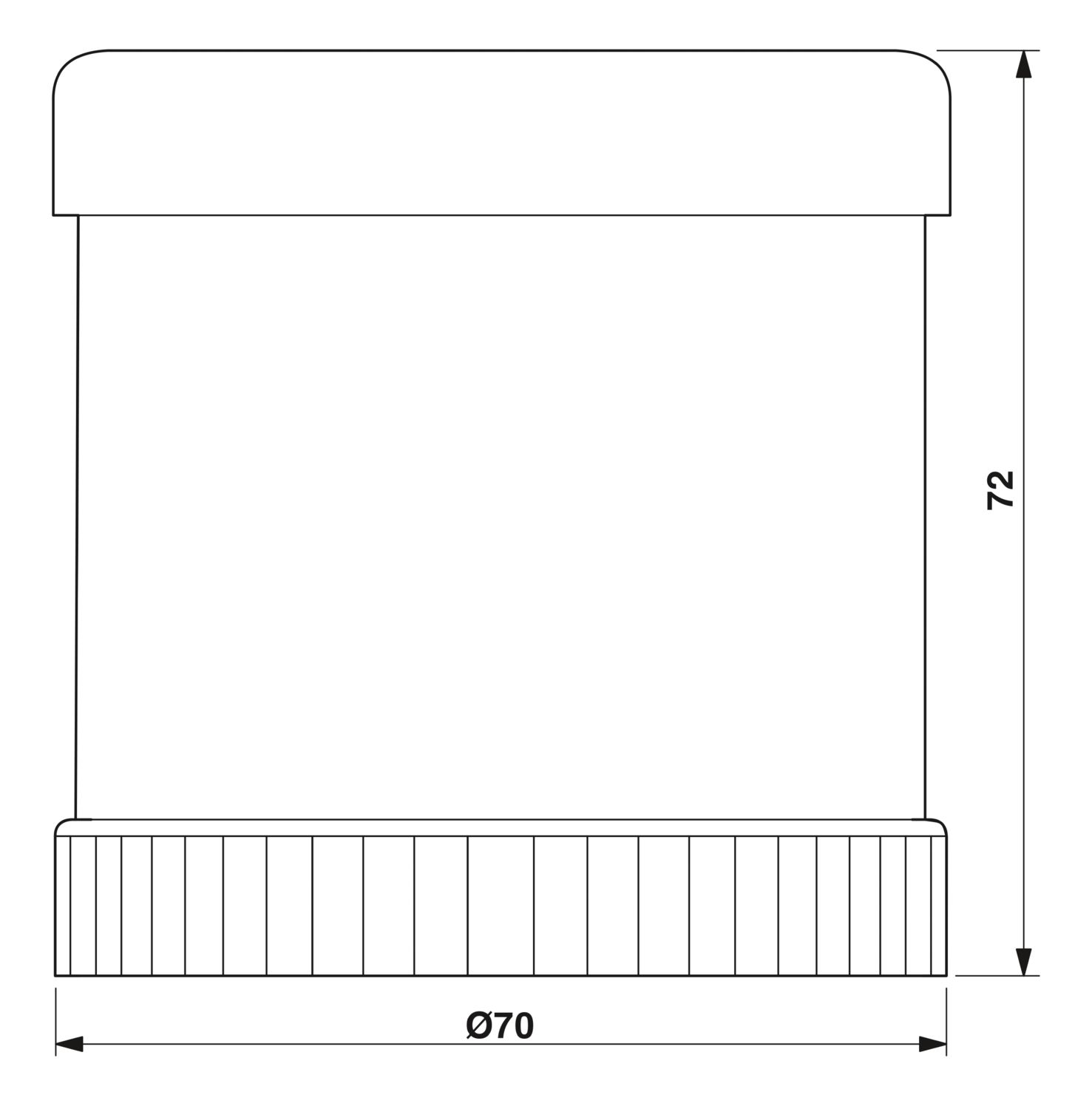

| Dimensional drawing |
|
| Height | 72 mm |
| Diameter | 70 mm |
| Color | black |
| Material | Polycarbonate PC |
| Ambient conditions | |
| Degree of protection | IP65, when installed |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Mounting position | any |
Your advantages
Multi-tone siren signaling depending on the situation
Remote control of tone selection via three signal cables
Adjustable volume
Minimum volume of 86 dB(A)
