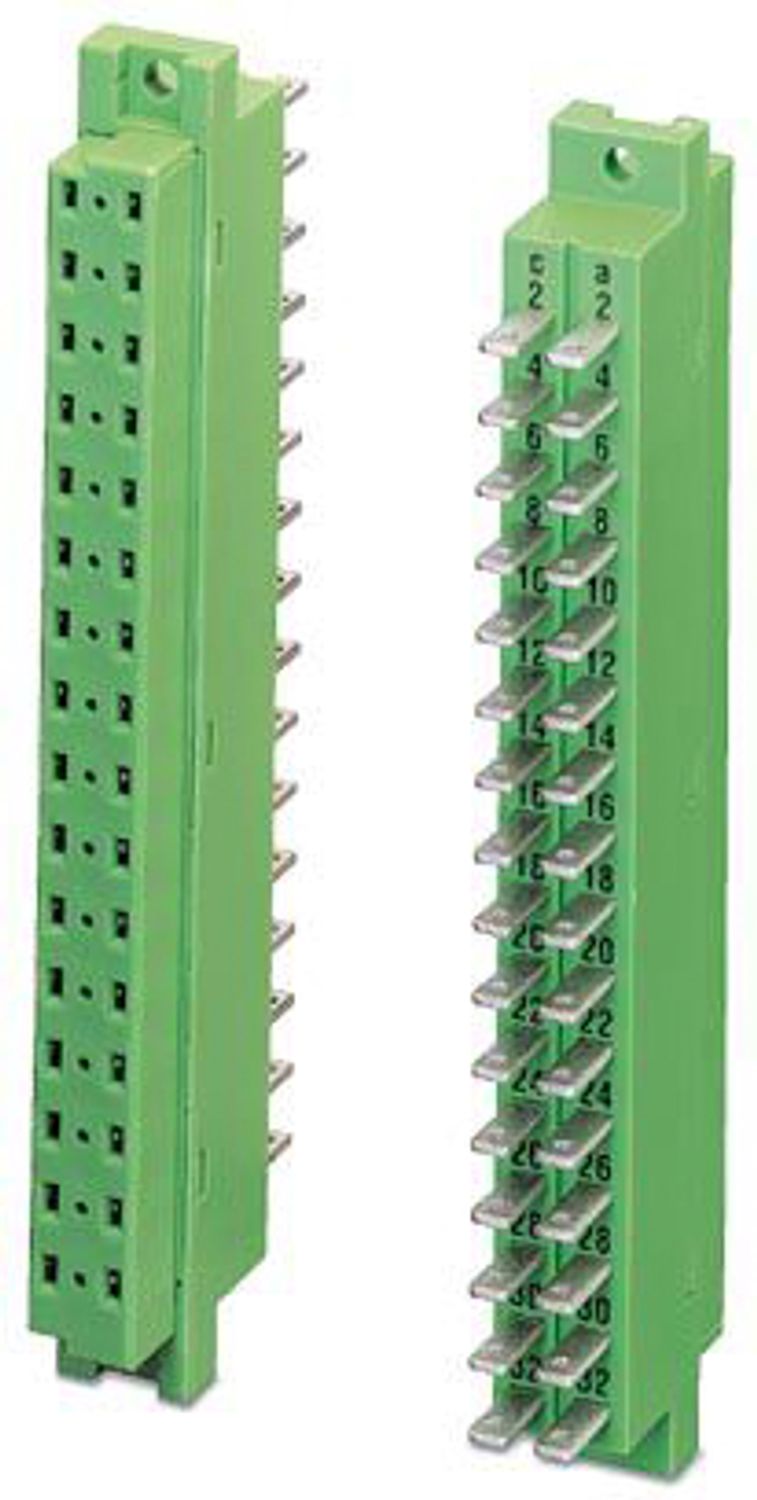

SFL (2,8-0,8)D32
-
Female connector strip
2285302
19" socket strip, color: green, number of positions: 32, product range: SFL (2,8-0,8), pitch: 0 mm, type of packaging: packed in cardboard
Product details
| Product type | 19" socket strip |
| Product family | SFL (2,8-0,8) |
| Type | D |
| Number of positions | 32 |
| Pitch | 0 mm |
| Rated surge voltage (III/3) | 2.5 kV |
| Connection method | Spade connection |

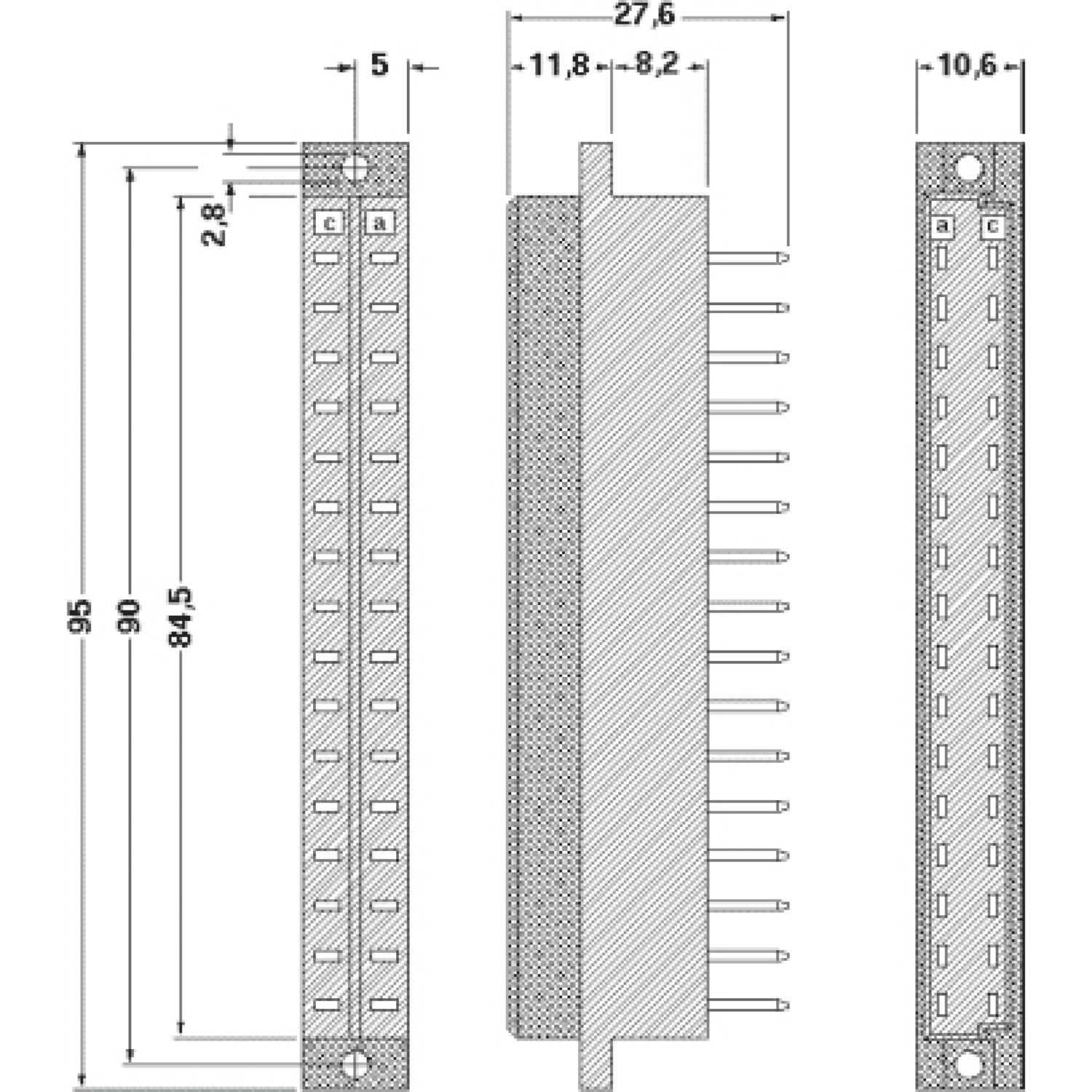

| Dimensional drawing |
|
| Width | 95 mm |
| Height | 27.6 mm |
| Length | 10.6 mm |
| Hole diameter | 2.8 mm |
| Pitch | 0 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | HB |
| Insulating material group | II |
| Insulating material | PA-F |
| Contact surface | Tin Sn |
| Type of packaging | packed in cardboard |
