HC-STA-B10-HLFS-1TTM25-EL-AL
-
Housing
1412630
Sleeve housing B10, for single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, straight, 1x M25, height: 57 mm, cable gland: none, Standard
Product details
| General | for contact inserts HC-B10, BB18, DD42, M, K8/24, HV03 |
| General | also available as a powder-coated or color version: 1372754 HC-STA-B10-HLFS-1TTM25-EL/... |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Type | Low design |
| Cable outlet | straight |
| Pg screw connection | none |

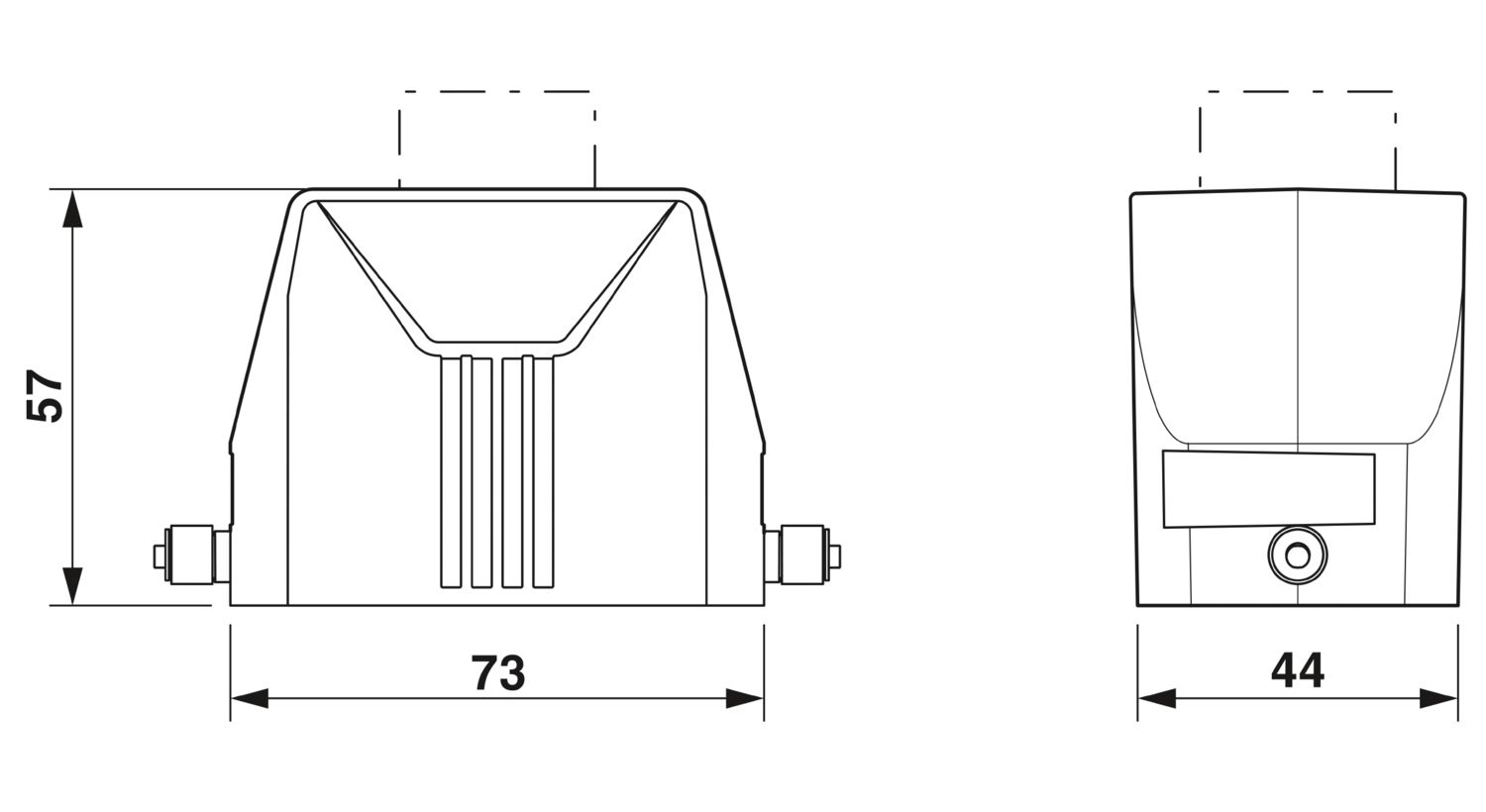

| Dimensional drawing |
|
| Width | 44 mm |
| Height | 57 mm |
| Length | 73 mm |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Good shielding in the event of electromagnetic interference
