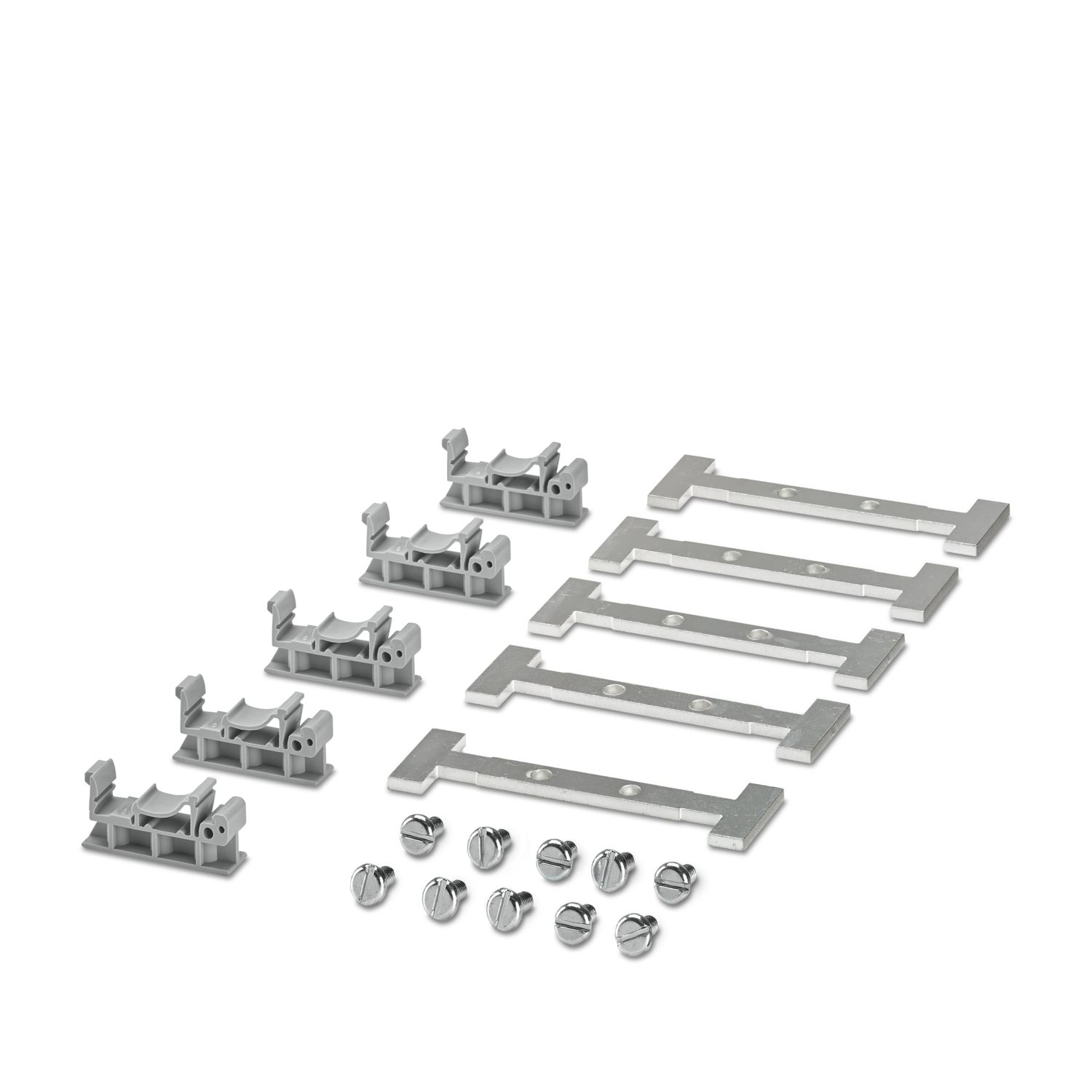

USA-SCHIRMSCHIENE SET - Set

USA-SCHIRMSCHIENE SET - Set

3209400

Set for connecting braided shields to a shield clamp at both ends

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Shield connection clamp
Pitch	28 mm

Connection data

Connection method	Screw connection

Dimensions

Width	28 mm
Height	19 mm
Pitch	28 mm

Material specifications

Color	gray (RAL 7042)
Insulating material	PA
Static insulating material application in cold	-40 °C
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Cable/line

External cable diameter	0 mm ... 0 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Mounting

Mounting type	NS 35/7,5

Commercial data

Item number	3209400
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BG452Z
Product key	BE752Z
GTIN	4046356310963
Weight per piece (including packing)	225.3 g
Weight per piece (excluding packing)	219.3 g
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0	27250309
ECLASS-15.0	27250309

ETIM

ETIM 9.0

EC002020

UNSPSC

UNSPSC 21.0

39121400

Environmental product compliance

China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
