CT-TERMIBLOCK 10 DA
-
Screw termination block
0441711
Screw termination block with disconnect contacts for accommodating protective plugs CT and CTM. Use in MCR and telecommunications systems. Design: 10 double wires
Product details
| Product type | Screw termination block |
| Product family | COMTRAB |
| Type | LSA-PLUS module |
| Wire pairs per module | 10 |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 3 |
| Connection method | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross-section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |

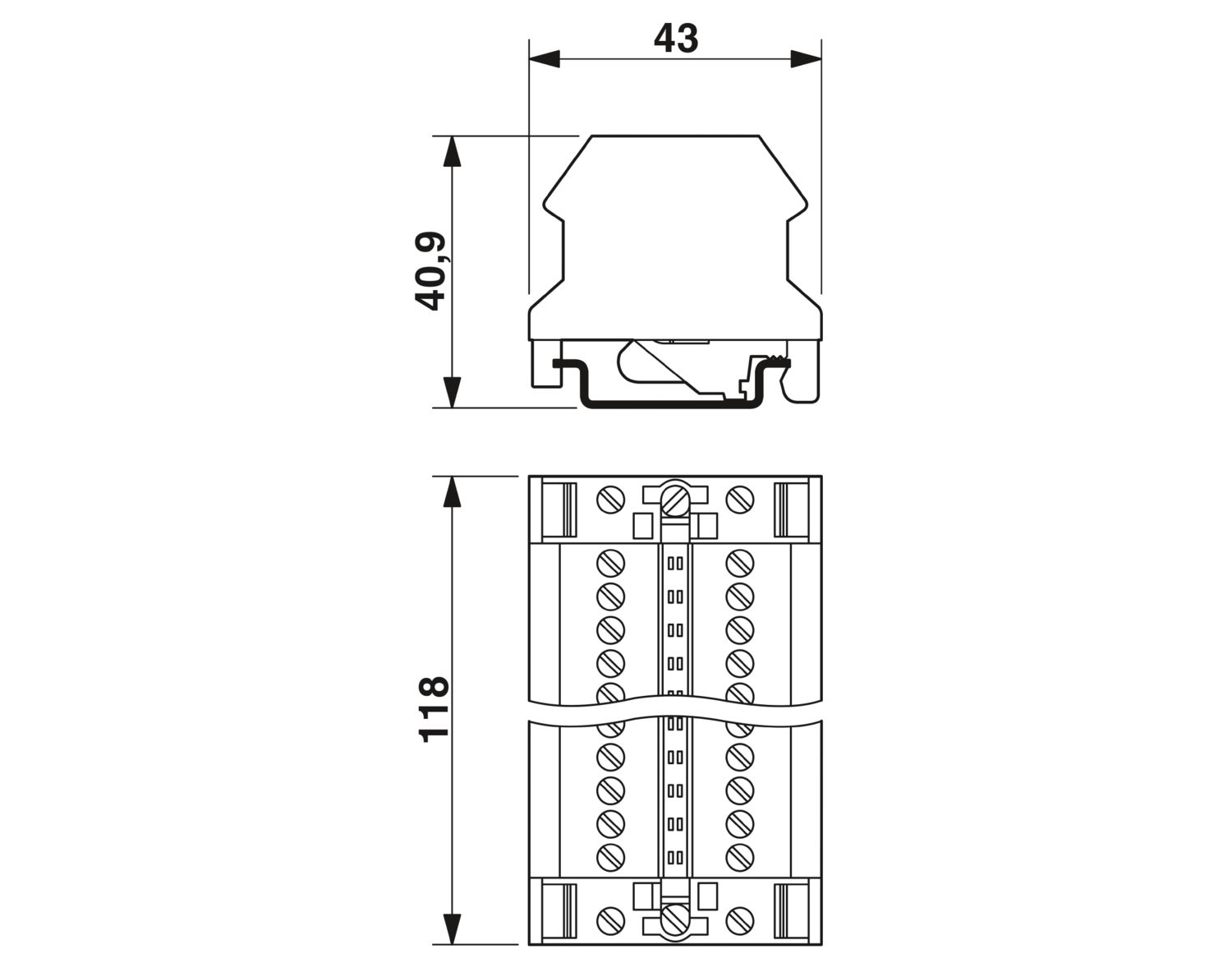

| Dimensional drawing |
|
| Width | 118 mm |
| Height | 43 mm |
| Depth | 40.9 mm |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I / 600 |
| Housing material | PA |
| Contact material | Cu alloy |
| Contact surface material | Sn |
| Mechanical data | |
| Open side panel | No |
| Maximum continuous operating voltage UC | 240 V AC |
| Operating effective current IC at UC | 5 A |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Altitude | 2000 m |
| Air clearances and creepage distances | |
| Standards/regulations | IEC 60664-1 |
| Mounting type | DIN rail: 35 mm |
Your advantages
Space-saving due to compact design
Flexible fields of application with modular protective plug
Maximum ease of maintenance, thanks to the 2-piece design
