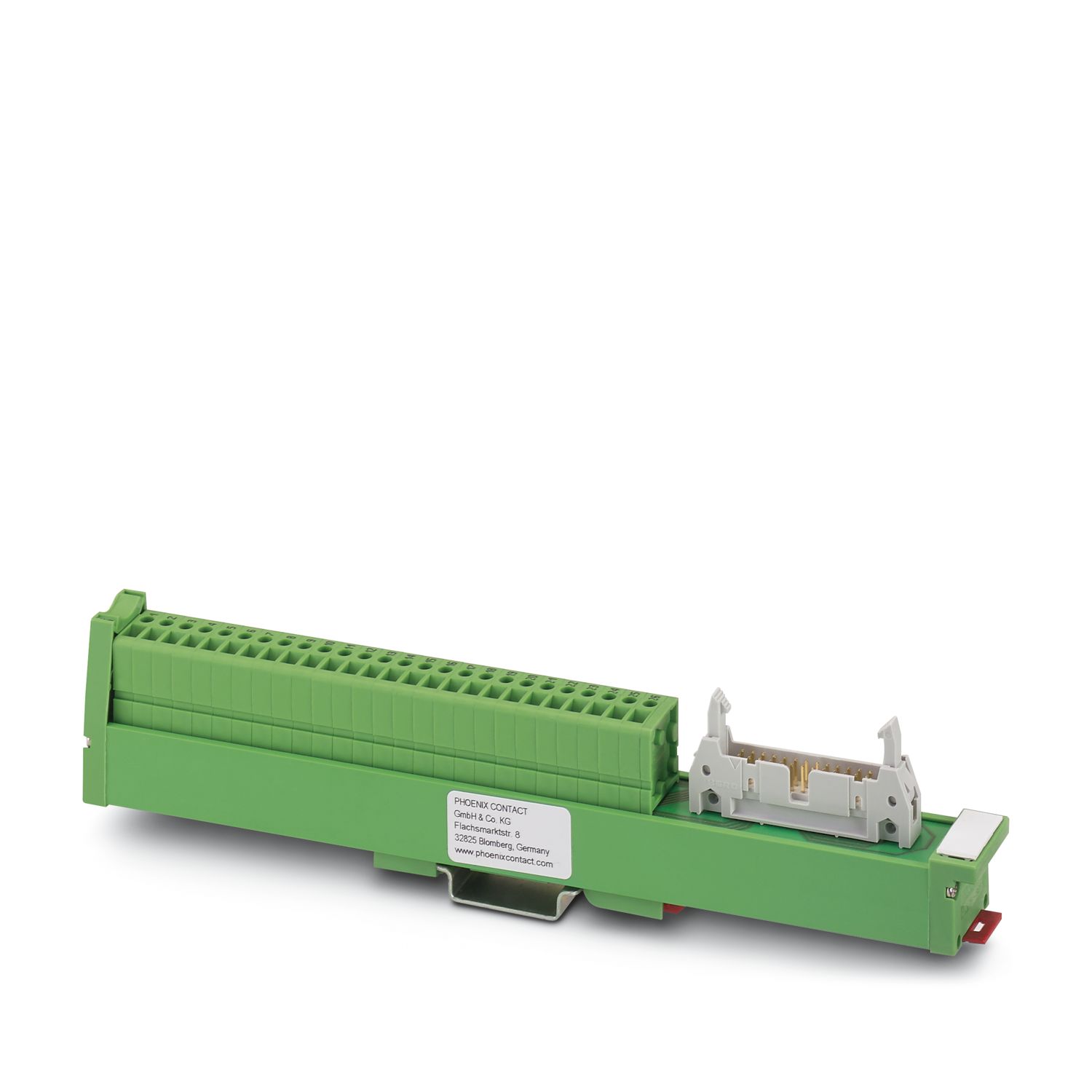

VARIOFACE SLIM LINE, with screw connection and flat-ribbon cable connector, for assembly at a right angle on NS 35/7.5, 26 positions
Product details
Product type
Interface module
Number of positions
26
Insulation characteristics
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Max. permissible operating voltage
25 V AC
60 V DC
Max. current carrying capacity per branch
0.8 A (data valid for 100% coincidence factor)
Rated insulation voltage
63 V
Rated surge voltage
0.6 kV
Field level
Connection in acc. with standard
IEC / EN
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Controller level
Connection method
IDC/FLK pin strip
Number of connections
1
Number of positions
26
Pitch
2.54 mm
Status display present
no
Item dimensions
Width
25 mm
Height
217 mm
Depth
45 mm
Color
green (RAL 6021)
Housing insulation material
PVC
Ambient conditions
Degree of protection
IP00
Ambient temperature (operation)
-10 °C ... 50 °C
Ambient temperature (storage/transport)
-10 °C ... 70 °C
Standards/regulations
DIN EN 50178
IEC 60664
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
2959528
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
DK21A1
Product key
DK21A1
GTIN
4017918086176
Weight per piece (including packing)
208.9 g
Weight per piece (excluding packing)
153.95 g
Country of origin
DE
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
